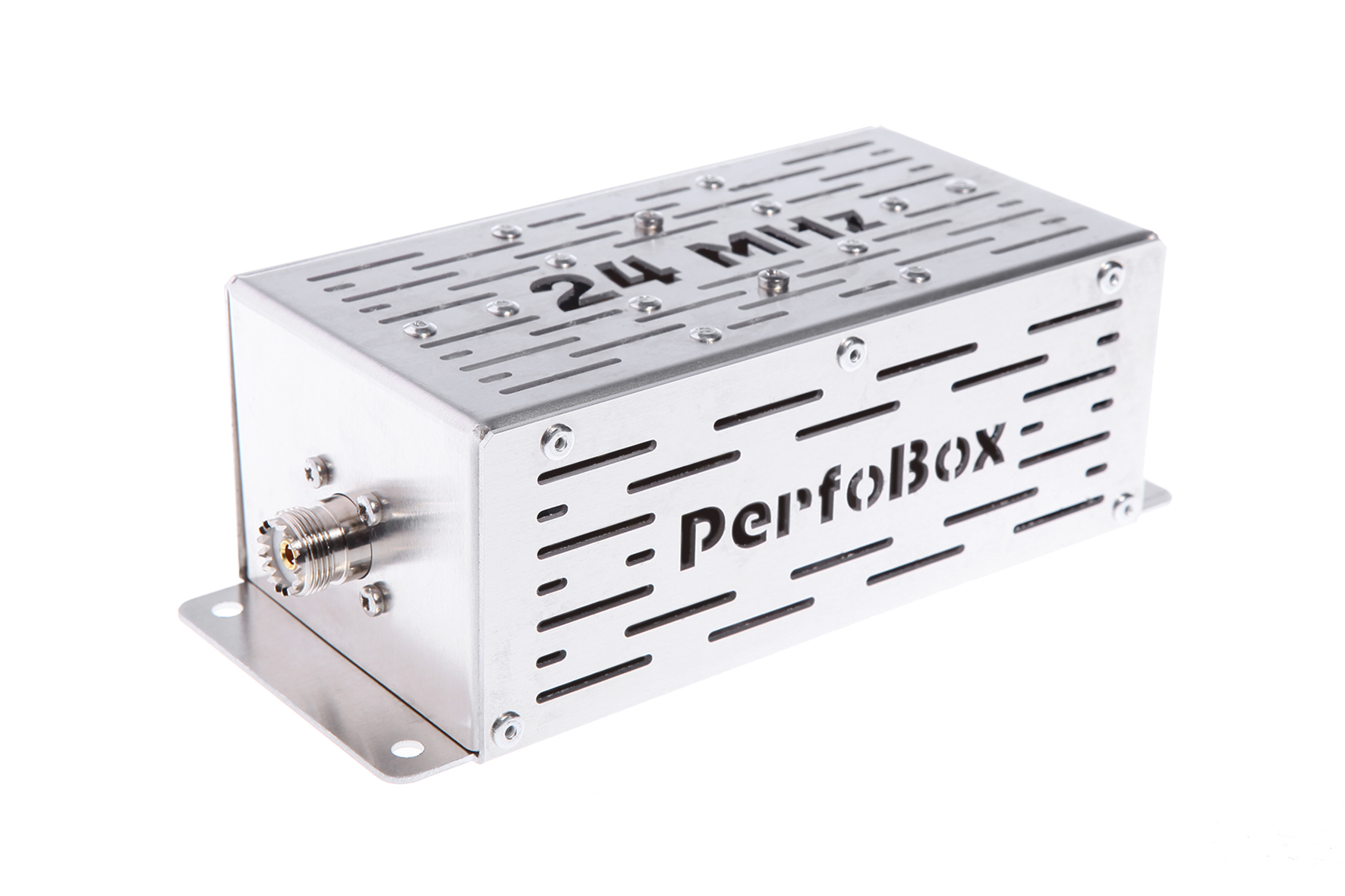

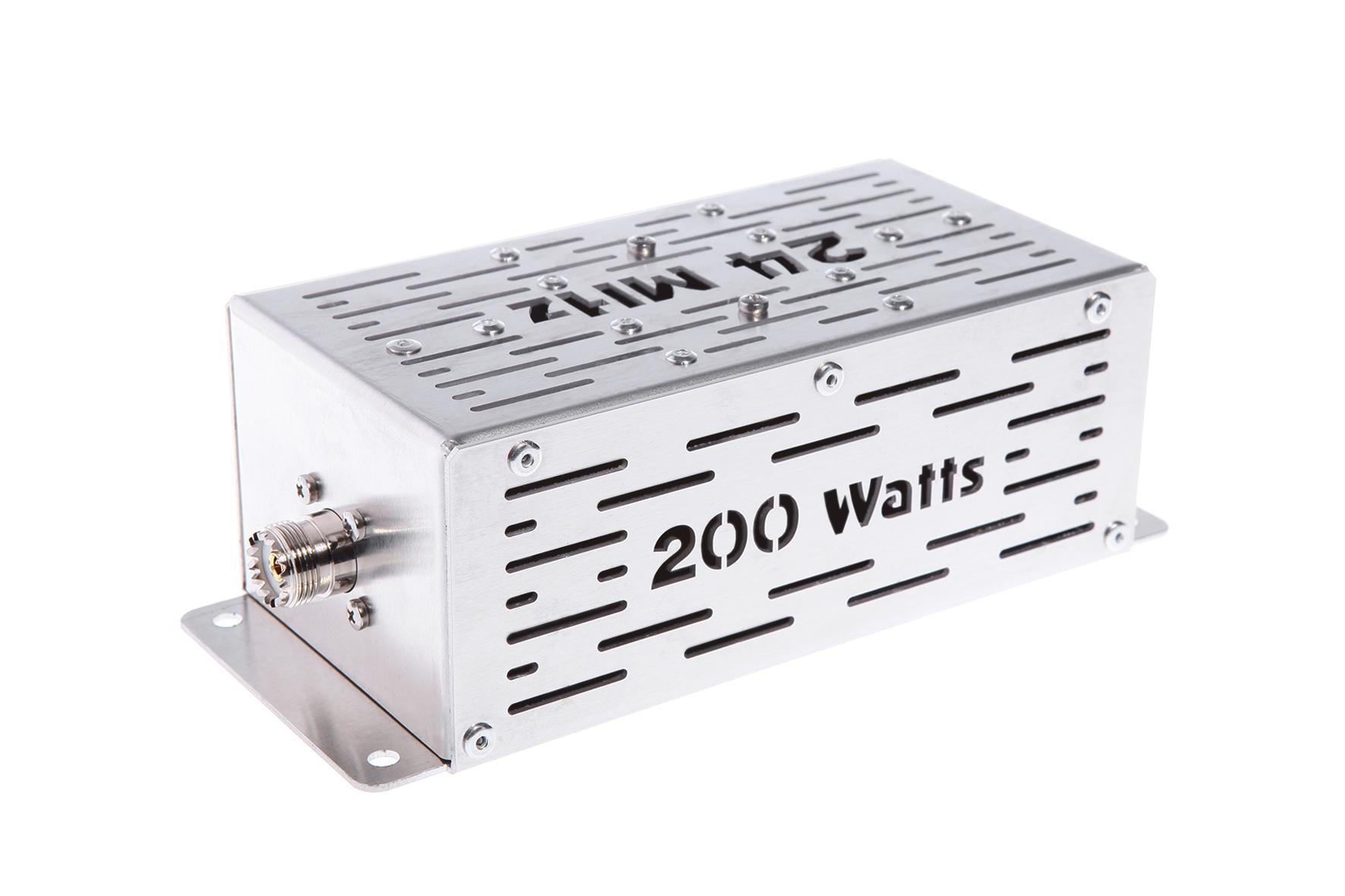

Band Pass Filter «Perfo Box-200», 200W ICAS, 24 MHz
SKU:
PB-F200-24
Availability: By Order
- Overview
- Additional Information
Download:
Detailed data sheet of «Perfo Box-200» filter series
Typical specifications:
| Impedance: | 50 Ohm |
| Power rating: | 200W |
| Insertion loss: | ≤0,5dB |
| Return loss: | ≥20dB |
| VSWR: | ≤1,2:1 |
| Connector: | SO-239 |
| Dimensions (L x W x H) mm/inches: | 195 x 90 x 65 mm / 7,7” х 3,6” х 2,6” |
| Net weight, kg/lbs.: | ≤0,55 kg / 1,2 lbs |
| Band, MHz: | 24 |
| Power, Watts, ICAS: | 200 |
