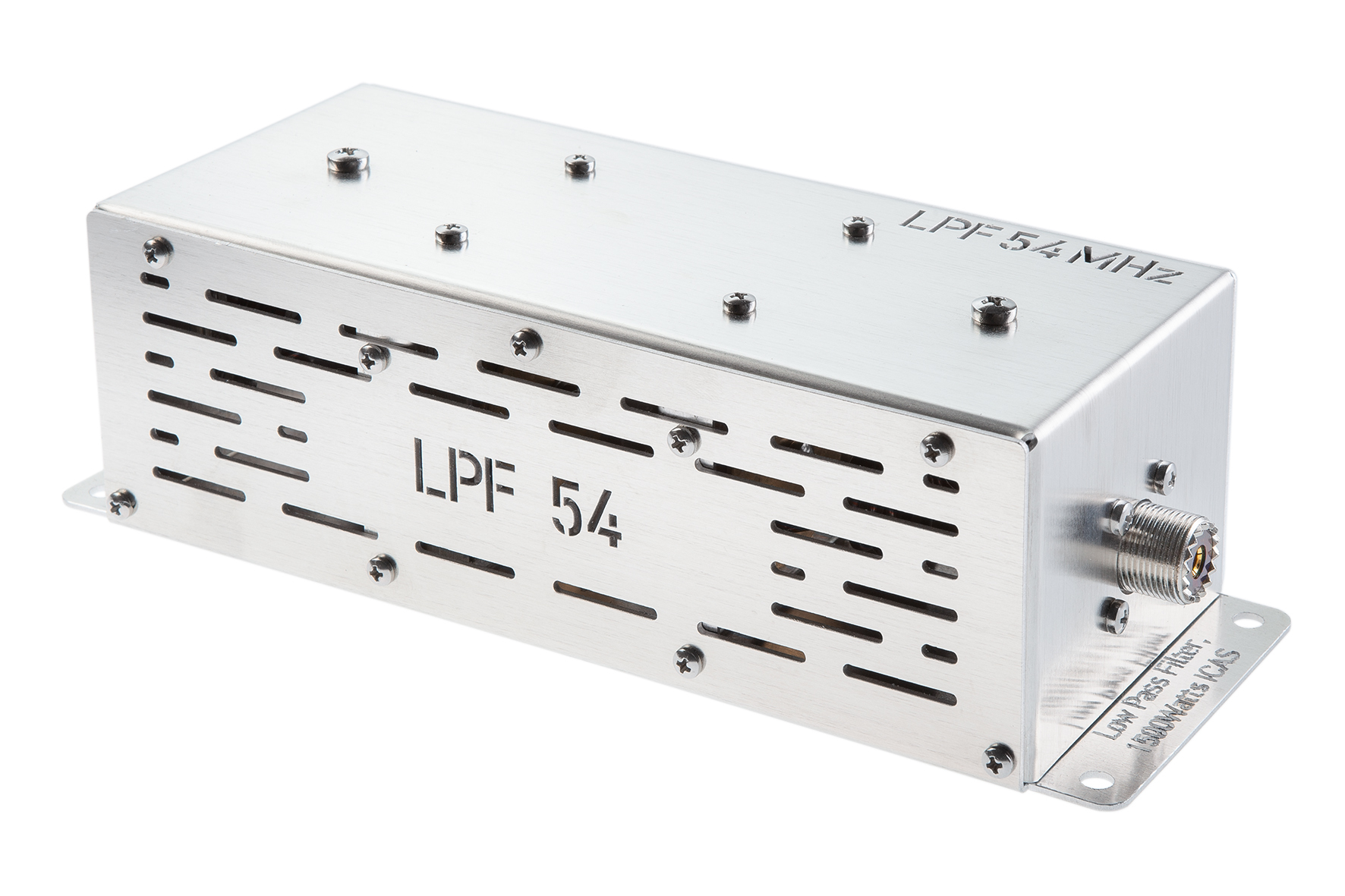

Low Pass Filter "Perfo Box-1500", 1500W ICAS, 54 MHz

SKU: PB-LPF1500T1-54N
Availability: In Stock
99 Eur
add to compare Compare
  • Overview
  • Additional Information

Download:

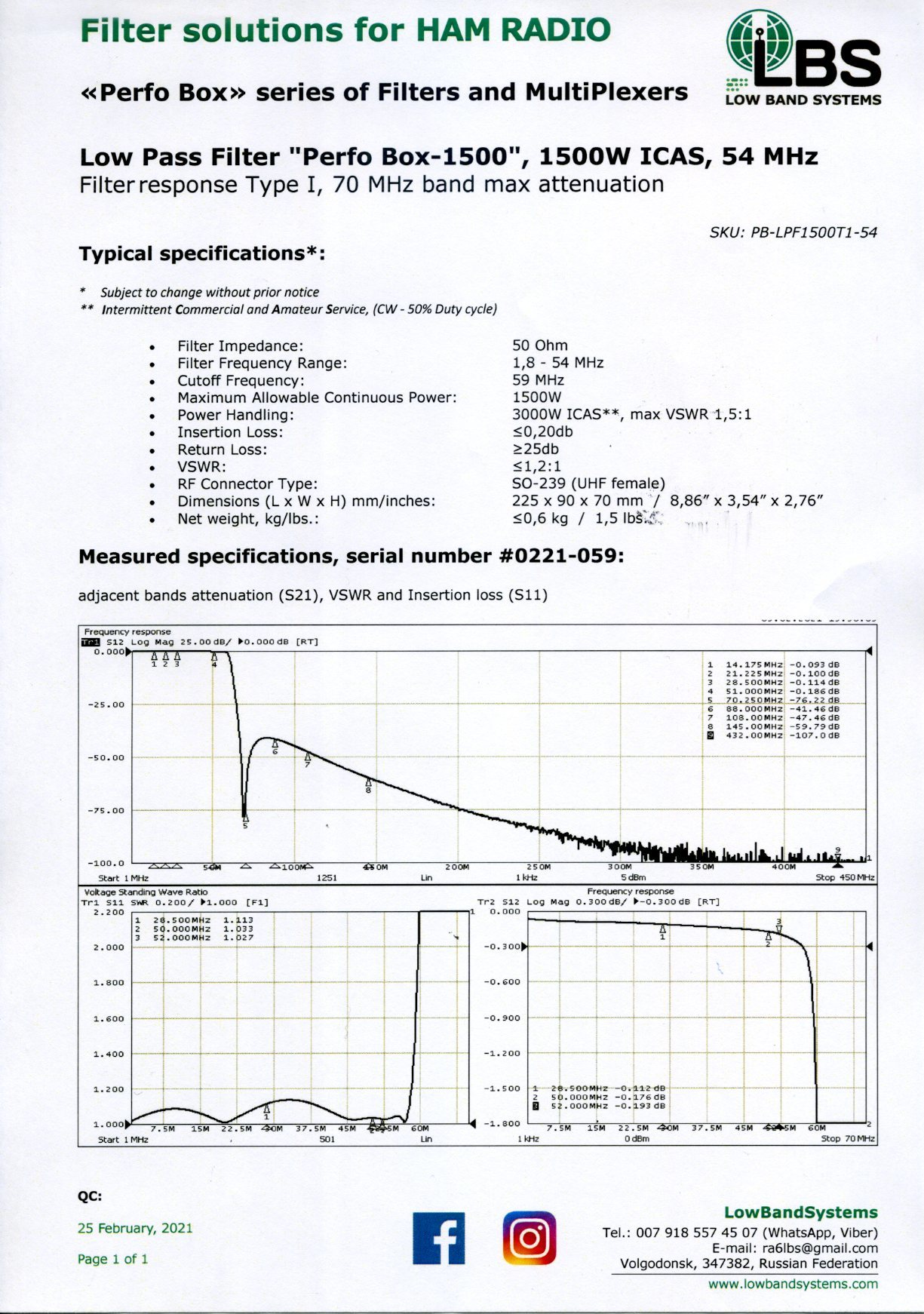

Detailed data sheet of «Perfo Box-1500» LowPassFilter series TYPE I (70Mhz max. attenuation)

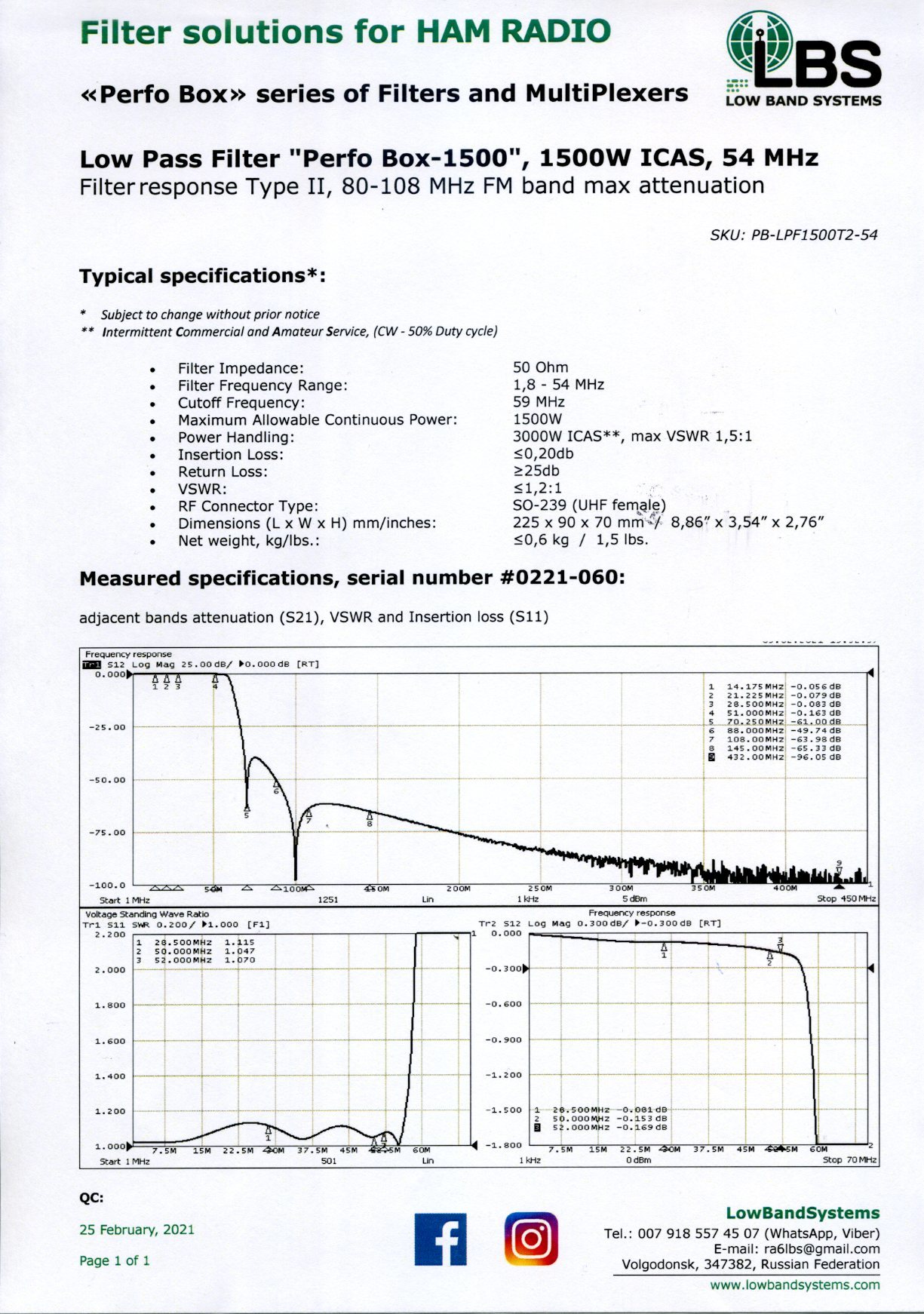

Detailed data sheet of «Perfo Box-1500» LowPassFilter series TYPE II (FM band max. attenuation)

Typical specifications:

Impedance:        50 Ohm
Maximum allowable continious Power: 1500 W
Power handling, ICAS: 3000 W
Losses in the pass band: typical ≤0,15 dB
VSWR:    typical ≤1: 1,1
Rejection on 70 MHz:  typical ≥ 75db. Type1 /≥ 60dB. Type2
Rejection on 145 MHz: typical ≥ 55db. Type1 /≥ 65dB. Type2
Rejection on 432 MHz:  typical ≥ 105db. Type1 /≥ 95dB. Type2
Size:  225x90x70 mm / 8,86” х 3,54” х 2,76”
Net weight:  ≤0,6 kg / 1,5 lbs
Band, MHz: 54
Power, Watts, ICAS: 1500
