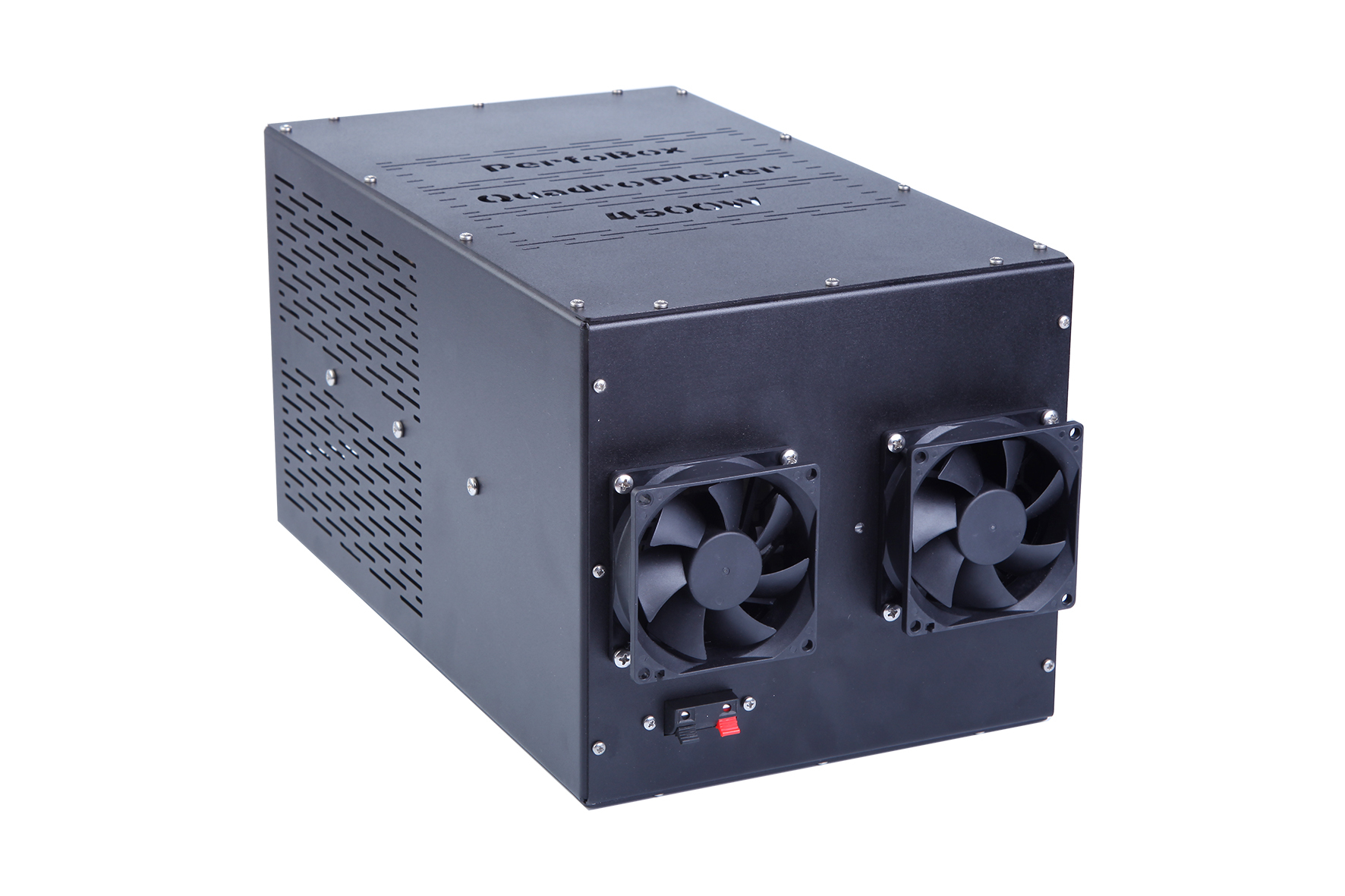

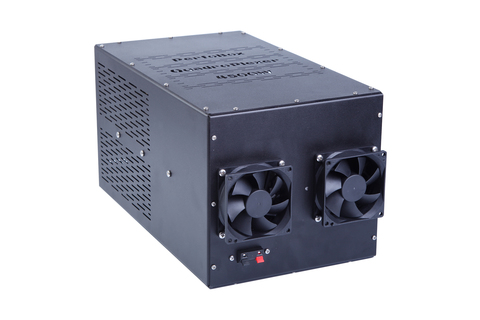

QuadPlexer «Perfo Box-4500», 4500W ICAS, 7-14-21-28 MHz

SKU: PB-QP4500
Availability: By Order
600 Eur
add to compare Compare
  • Overview
  • Additional Information

Download:



Detailed data sheet of QuadPlexer «Perfo Box-4500»



Application Note AN_MP-01  “Using High Performance Multiplexers to improve your HF station Capability”

Typical specifications:

Impedance:        50 Ohm
Maximum ICAS power per band port: 4500 W
Maximum ICAS power at antenna port:
VSWR:    typical ≤1: 1,25
Cooling fans:  12VDC, 2200RPM, 29.9CFM
Size:  420x230x220 mm / 17”х9”х9”
Net weight:  ≤4,6 kg / 10,5 lbs
Band, MHz: 7 - 14 - 21 - 28
Power, Watts, ICAS: 4500
