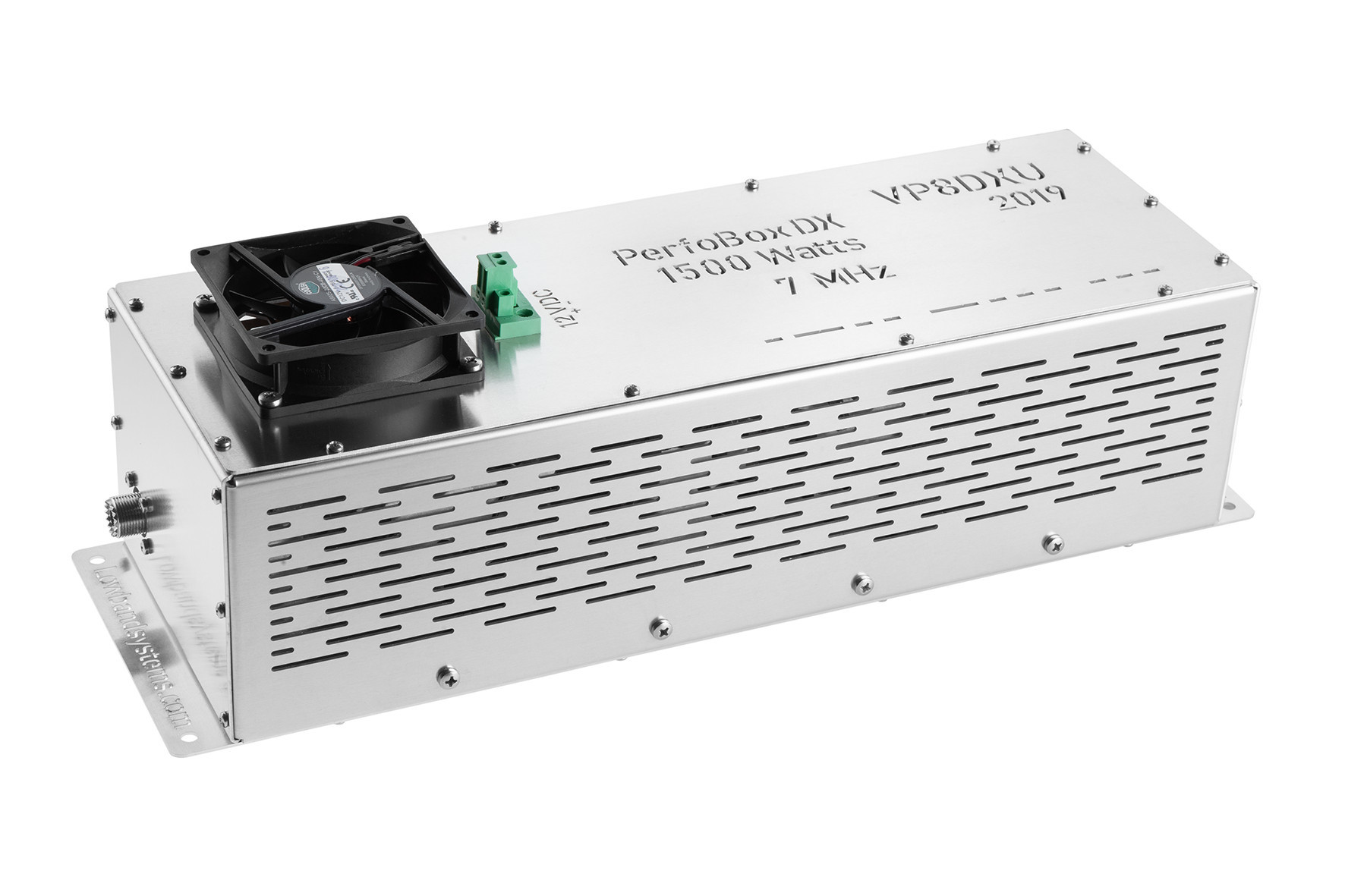

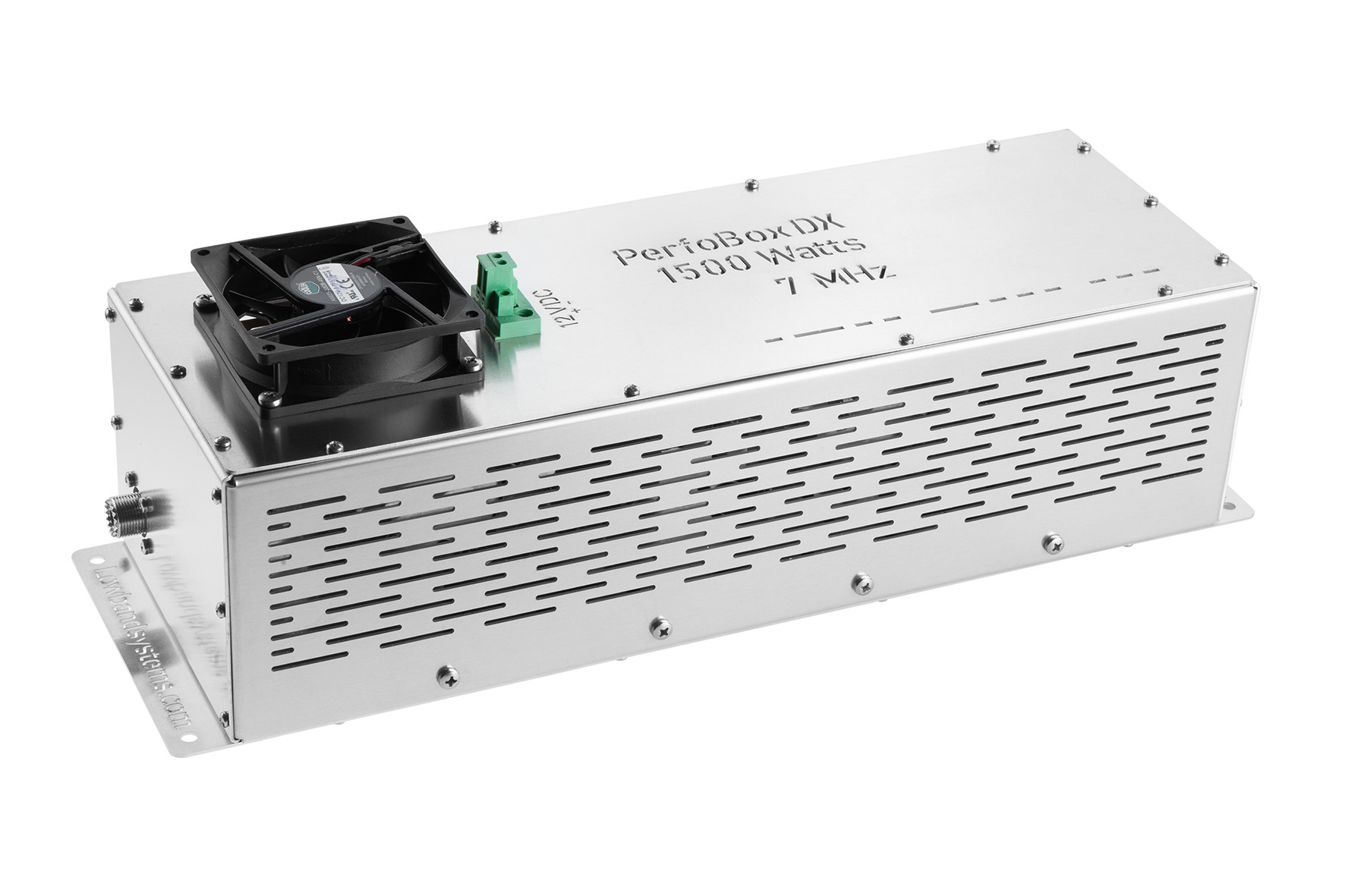

Band Pass Filters "Perfo Box - 1500DX"

SKU: PB-F1500DX
Availability: In Stock
315 Eur
add to compare Compare
  • Overview

Data sheet «PerfoBox-1500-DX»

Typical specifications:

Impedance:                                           50 Ohm

Maximum ICAS power:                       1500 W

Losses in the pass band:                     typical ≤0,2 dB

VSWR:                                                     typical ≤1: 1,15

Rejection on a nearby band:                typical ≥ 80 dB

Rejection on 2F band:                           typical ≥ 80 dB

Cooling fans (option):                           12VDC, 2200RPM, 29.9CFM,

Phoenix pluggable connector

Size:                                                         450x150x134 mm / 18” х 6” х 5”

Net weight (2 pcs., option fans incl.):      ≤2,3 kg / 5,5 lbs
