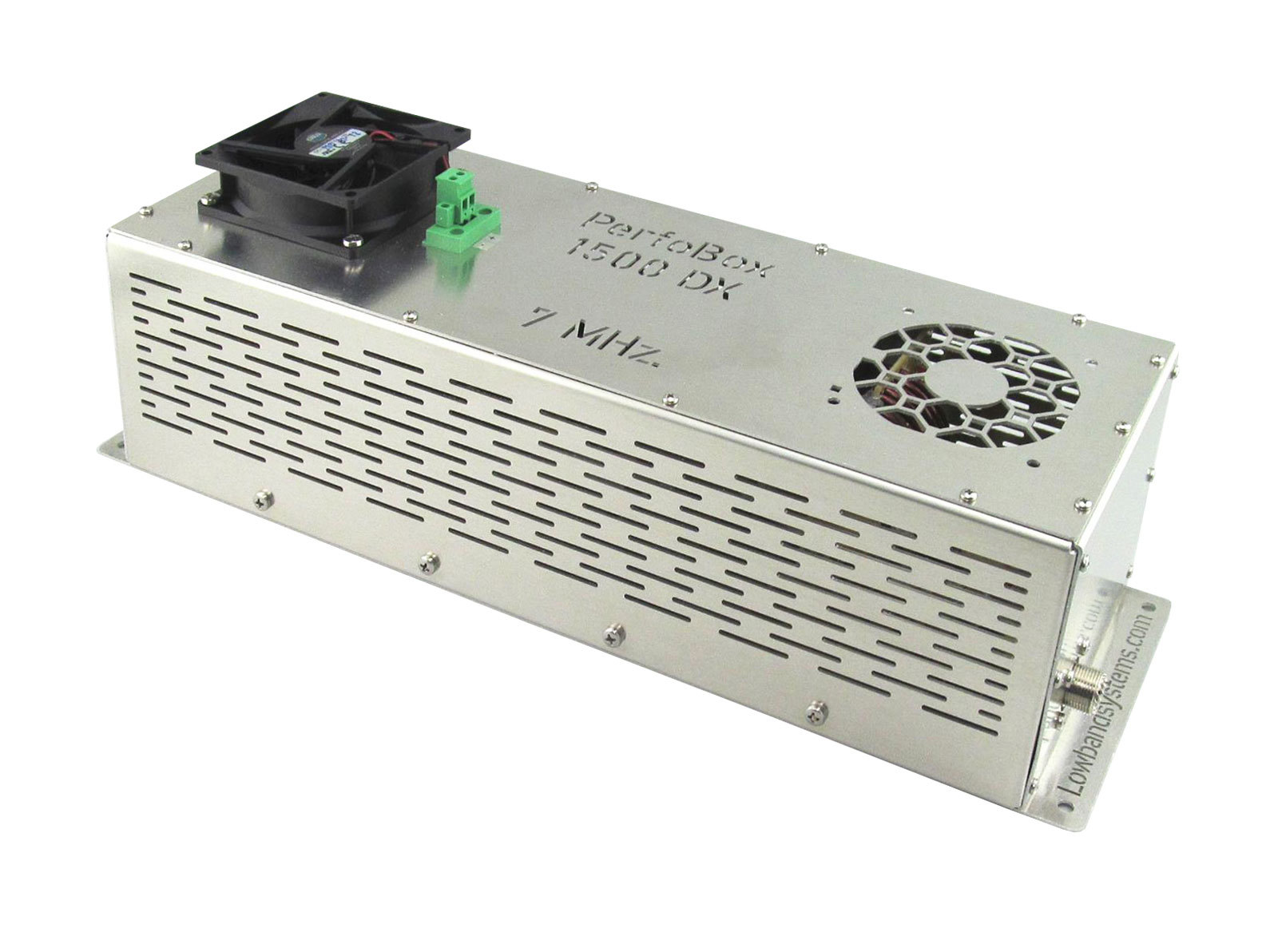

Band Pass Filter «Perfo Box-1500DX», 1500W ICAS, 7 MHz

SKU: PB-F1500DX-7-F1
Availability: In Stock
330 Eur
add to compare Compare
  • Overview

Download:

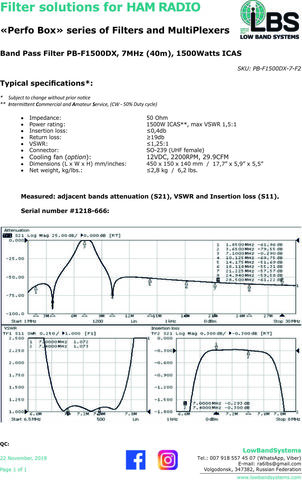

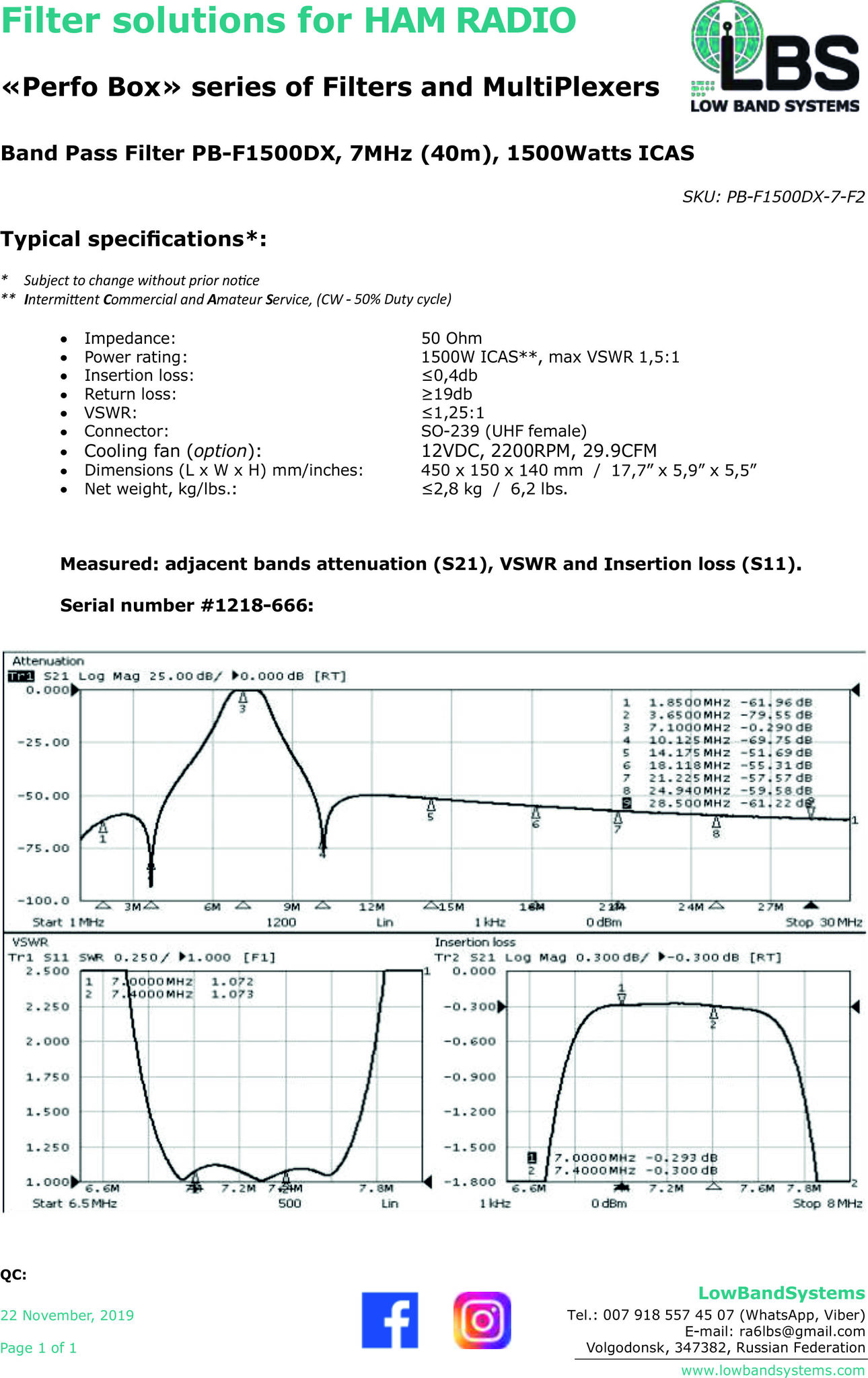

Detailed data sheet of «Perfo Box-1500DX» filter series I

Typical specifications:

Impedance:        50 Ohm
Maximum ICAS power: 1500 W
Losses in the pass band: typical ≤0,4 dB
VSWR:    typical ≤1: 1,25
Rejection on band DOWN:  typical ≥ 85 dB
Rejection on band UP: typical ≥ 70 dB
Rejection on 2F band:  typical ≥ 50 dB
2 x Cooling fans: 12VDC, 2200RPM, 29.9CFM
Size:  450x150x134 mm / 18” х 6” х 5”
Net weight (2 pcs., option fans incl.):  ≤2,55 kg / 6 lbs
