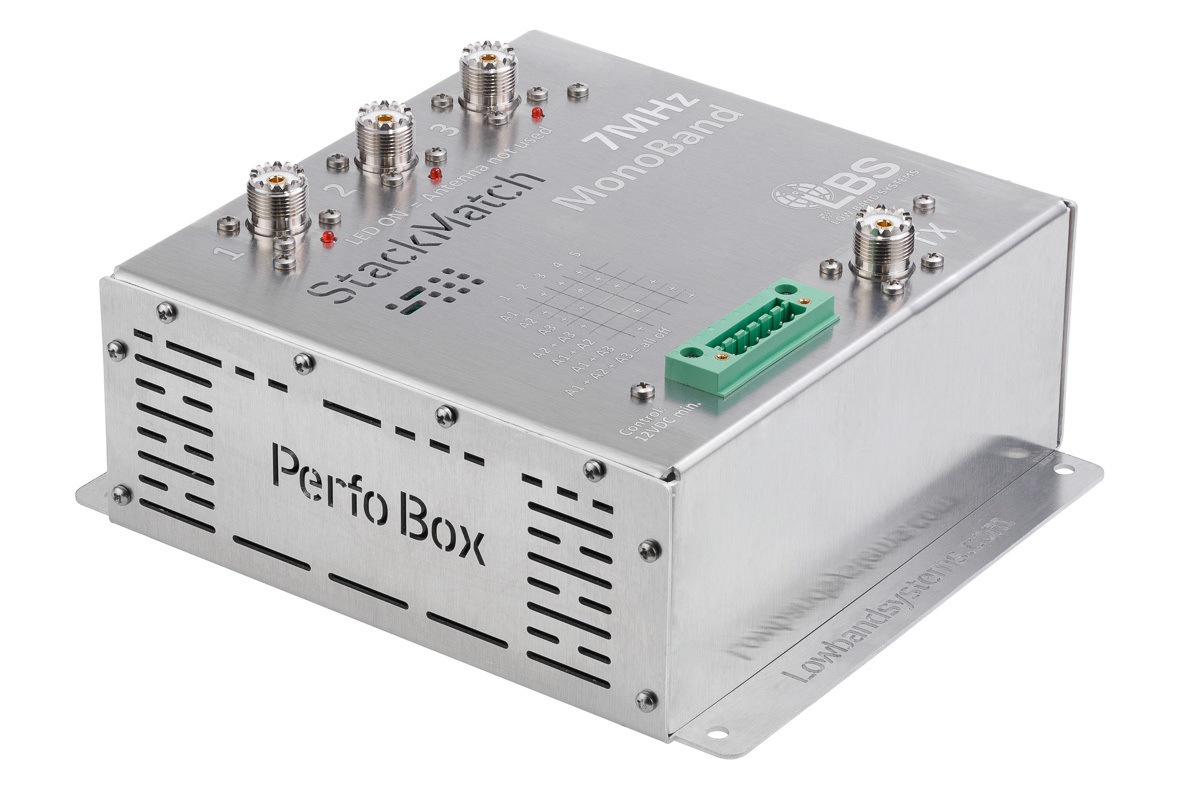

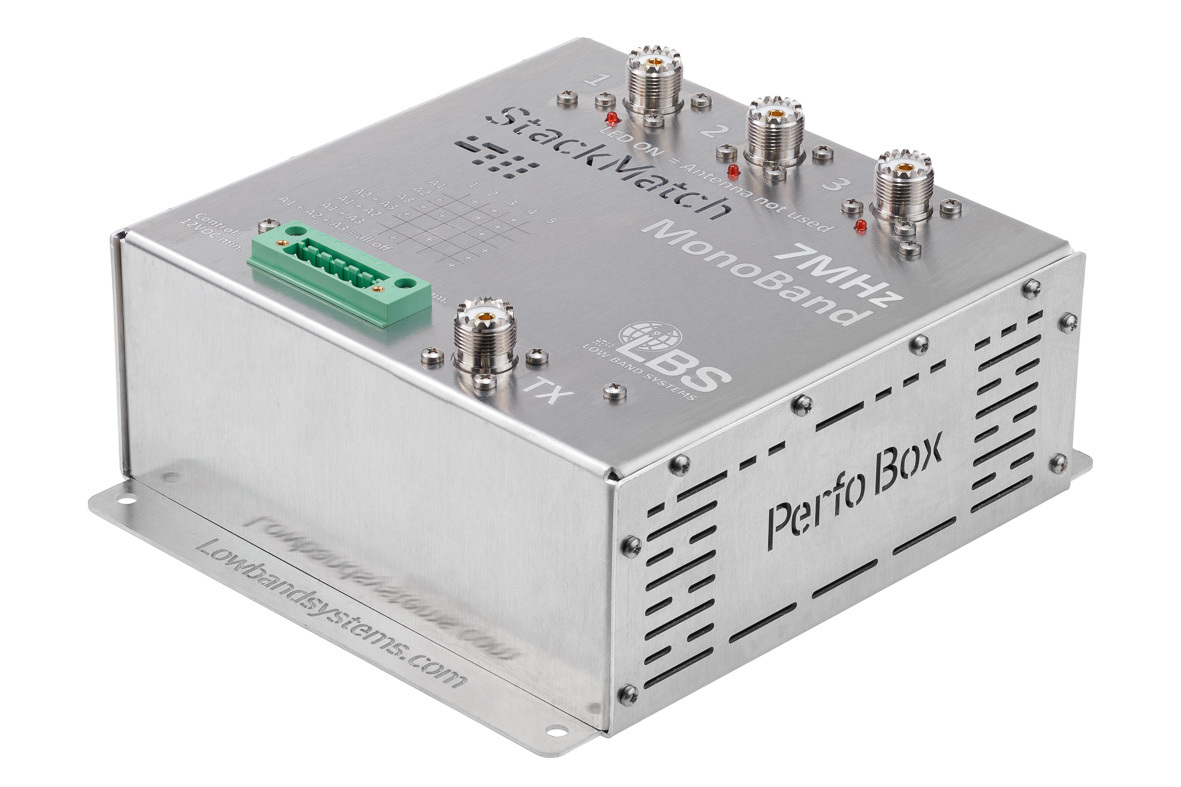

StackMatch, 3000W, 3 antennas, 7Mhz

SKU: SM3k3-40-UHFa
Availability: In Stock
185 Eur
add to compare Compare
  • Overview

SM3k series of Stacking Switches

Mono band Stacking switch SM3k3-7Mhz



Multiplexer technology ready ©



Can be used in building high power matrix multiplexer distribution systems.





Please see N6MJ`s write up on this technique





Two optimized matching networks for 2 or 3 antenna stacking

Control options: any one or any combination of antennas:
1+2+3
1+3
2+3
1
2
3

Unselected antenna ports are terminated 50 Ohm, 8W.

4 connectors, 12Vdc, MOV protected for all six control cable lines.



Band: 7 Mhz
≤ 0,1 db at 7MHz
000W at 1,5 : 1 SWR
