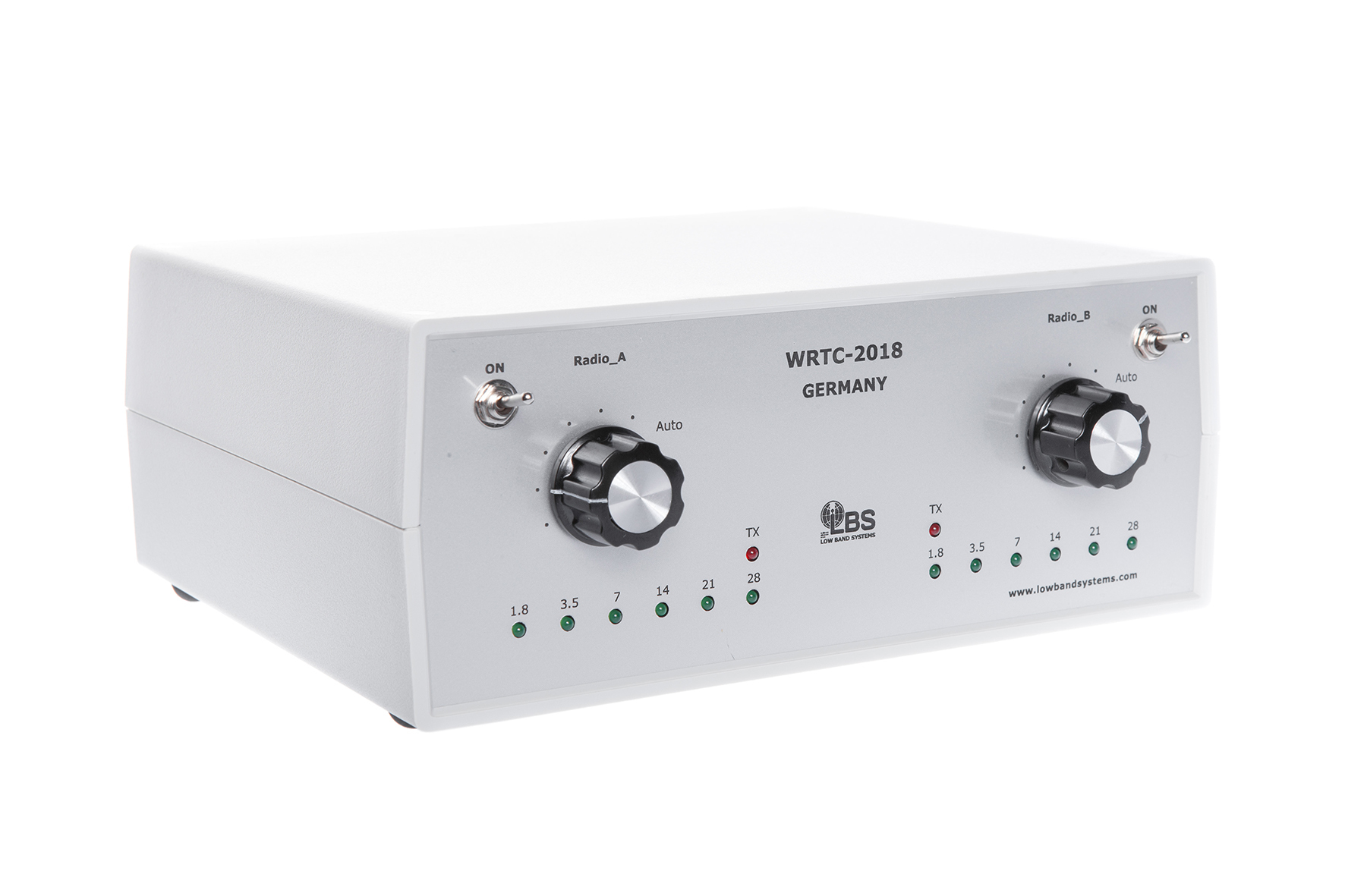

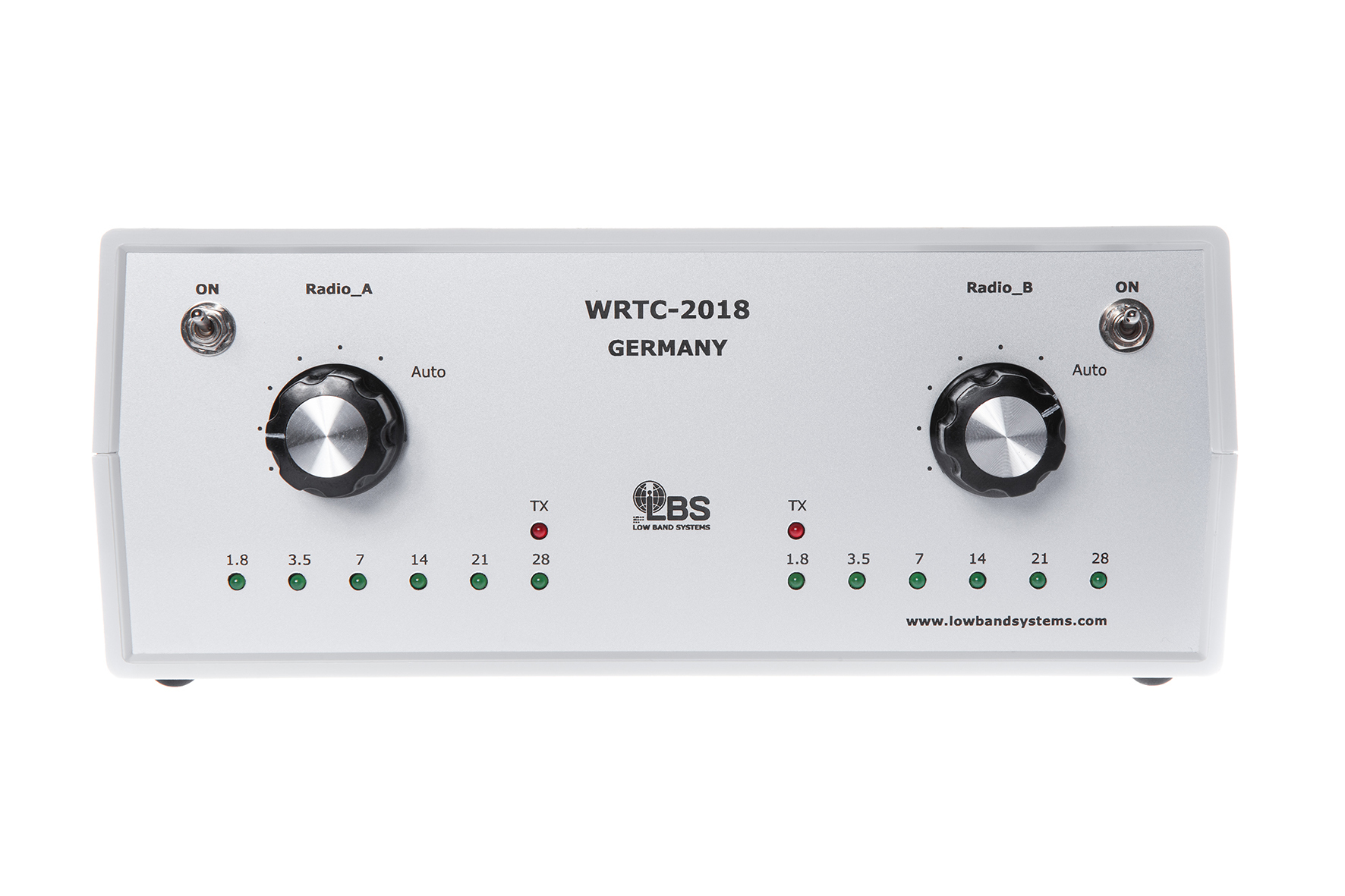

Controller with hardware lockout, for remote relay switching system of filters and triplexer for WRTC and Field Day style opertation.
- Auto decoder (BCD, ICOM) or manual control of bands from 2 transcievers
- Hardware Lock out

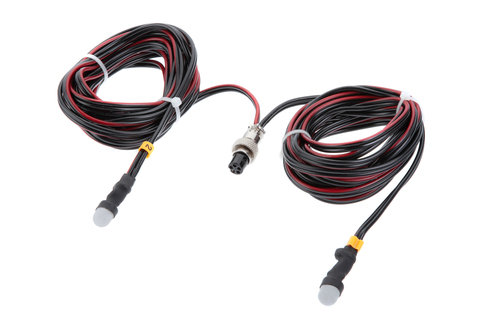

- Connectors on the back panel for Remote LEDs to indicate TX state of partner
- Input (2xRCA connectors) for PTT signals from computer and foot switch
- Output (RCA connector) PTT signal to transciver

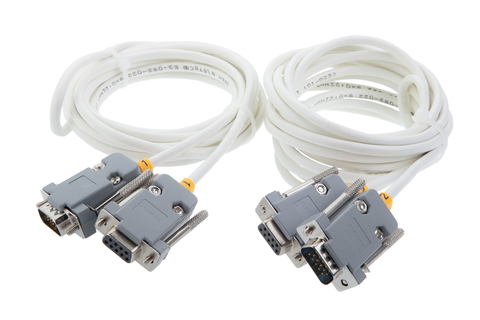

- Input connector (DB-9) with different interface cables for different transcivers
- Output connector (DB-25) to remote relay switches
- 13VDC, 1A
"Golden standard" since 2009 for WRTC style competition.
