Remote vacuum relay switch, RK316

SKU: RK-316
Availability: In Stock
180 Eur
add to compare Compare
  • Overview
  • Additional Information
  • Reviews (0)

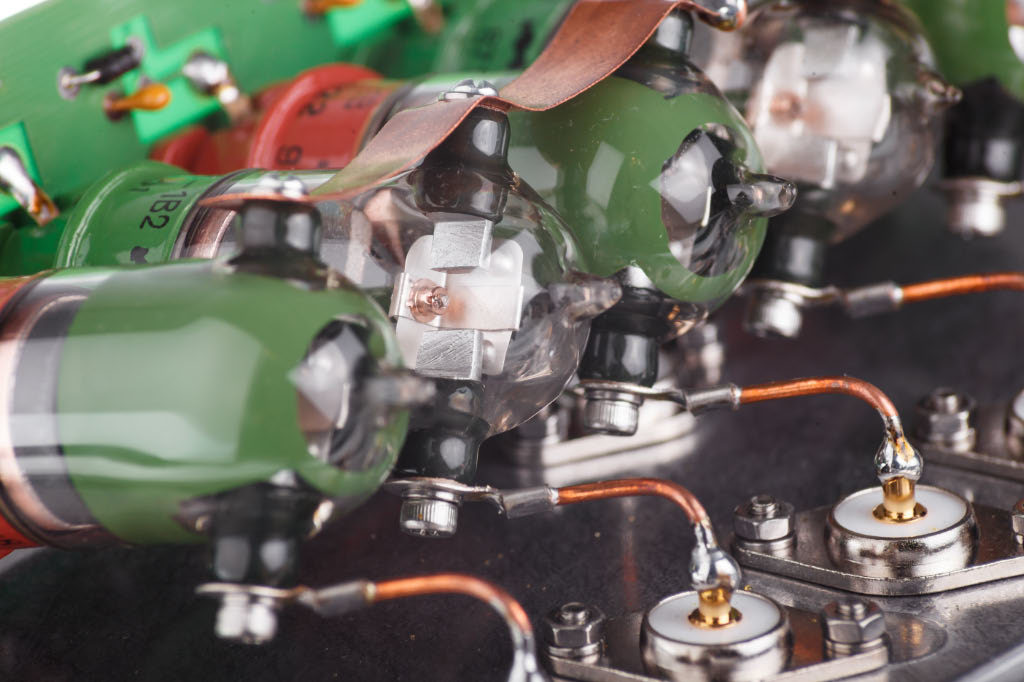

The RK-316 series of switches uses vacuum relays. It is designed to switch coaxial lines in RF systems operating up to 5 kW continuous duty.
Features
The RK-3xx series of switches uses vacuum relays.
It is designed to switch coaxial lines in RF systems
operating up to 5 kW continuous duty.

Specifications
• Port Isolation (Worst Case): 55 dB
• Power Rating (<2:1 SWR at 30 MHz): 5 kW ICAS/3 kW CCS
• Control Voltage: 27 Vdc/100 mA
• Loss (HP): <0.03 dB below 60 MHz, <0.25 dB below 150 MHz
• Loss (SD): <0.03 dB below 30 MHz, <0.16 dB below 60 MHz
• Impedance: 50 Ω
• 24 or 12-volt relay operation
• Control Line: x-wire plus ground
• Usable to 150 MHz
• Fully RF-shielded with Al cover

Losses, db: 0,05 at 30MHz
Power, Watts, ICAS: 5,000 at 30Mhz
Cross talk, db: more then - 50db to unused port
