Transmit Vacuum Relay Remote Antenna Switches

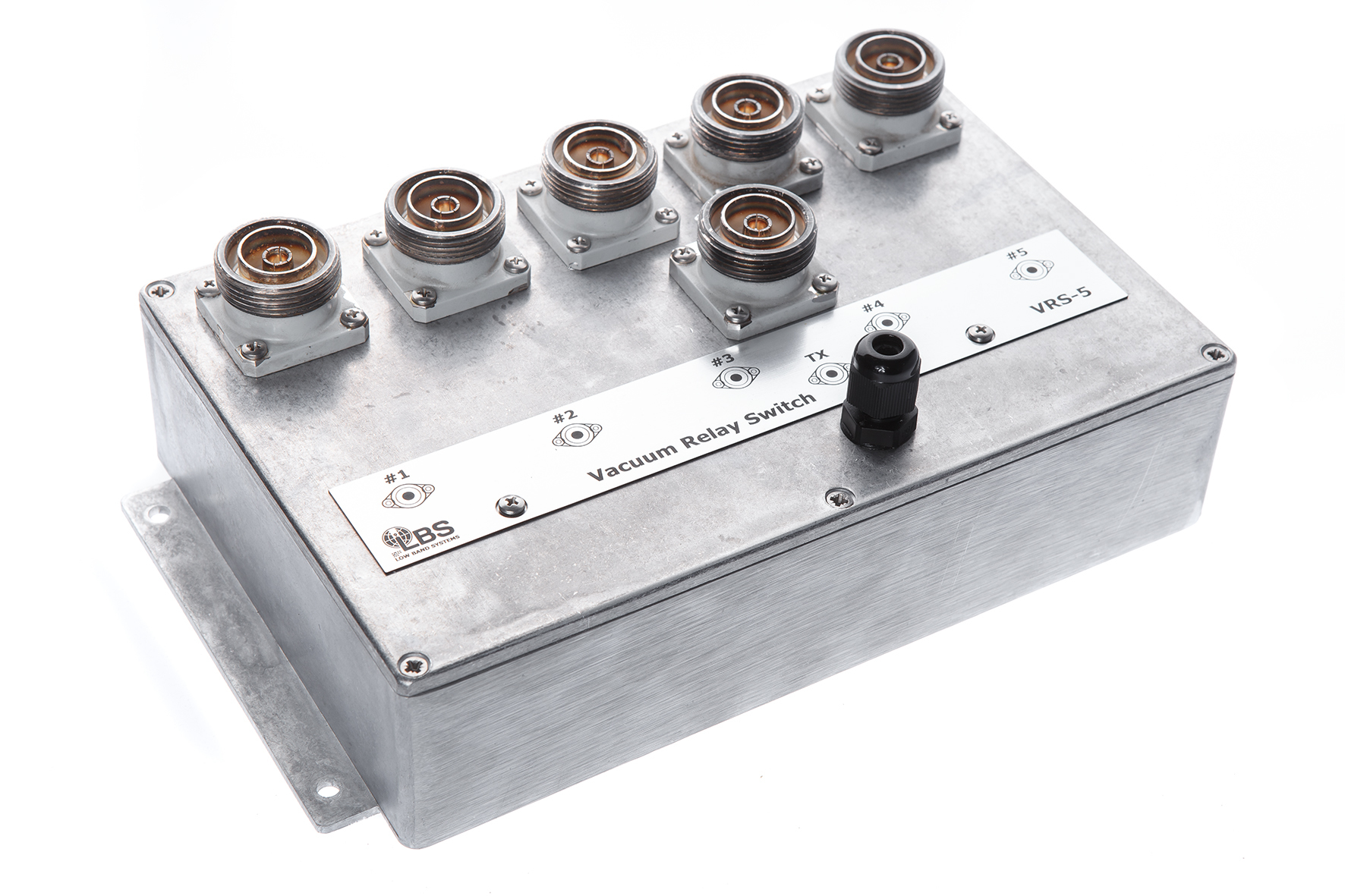

Remote Vacuum Relay Antenna Switch, "VRS7kW-5", Outdoor instalation, 5 Inputs to 1 Output, 0-30 MHz, 7 kW ICAS

SKU: VRS7kW5-UHF

Availability: By Order

Overview

The VRS7kW series of switches uses vacuum relays. Designed to switch coaxial lines in RF systems operating up to 7 kW ICAS.

Datasheet Vacuum relay switch VRS7kW-5

Typical specifications*:

Configuration:	5 INPUTS, 1 OUTPUT
Relay contact type:	Single-Pole Single-Throw
RF Connectors (options):	UHF or N or DIN 7/16
Power rating, ICAS, 30 MHz, SWR <1: 1.5	7kW
Typical VSWR at 30 MHz	≤ 1:1.1
Typical insertion loss at 30 MHz	≤ -0.1 dB
Control voltage:	18 ÷ 27VDC, 0.15A max
Control voltage format:	Standard 1 of 5
Size:	225x150x58 mm / 9” х 6” х 2”
