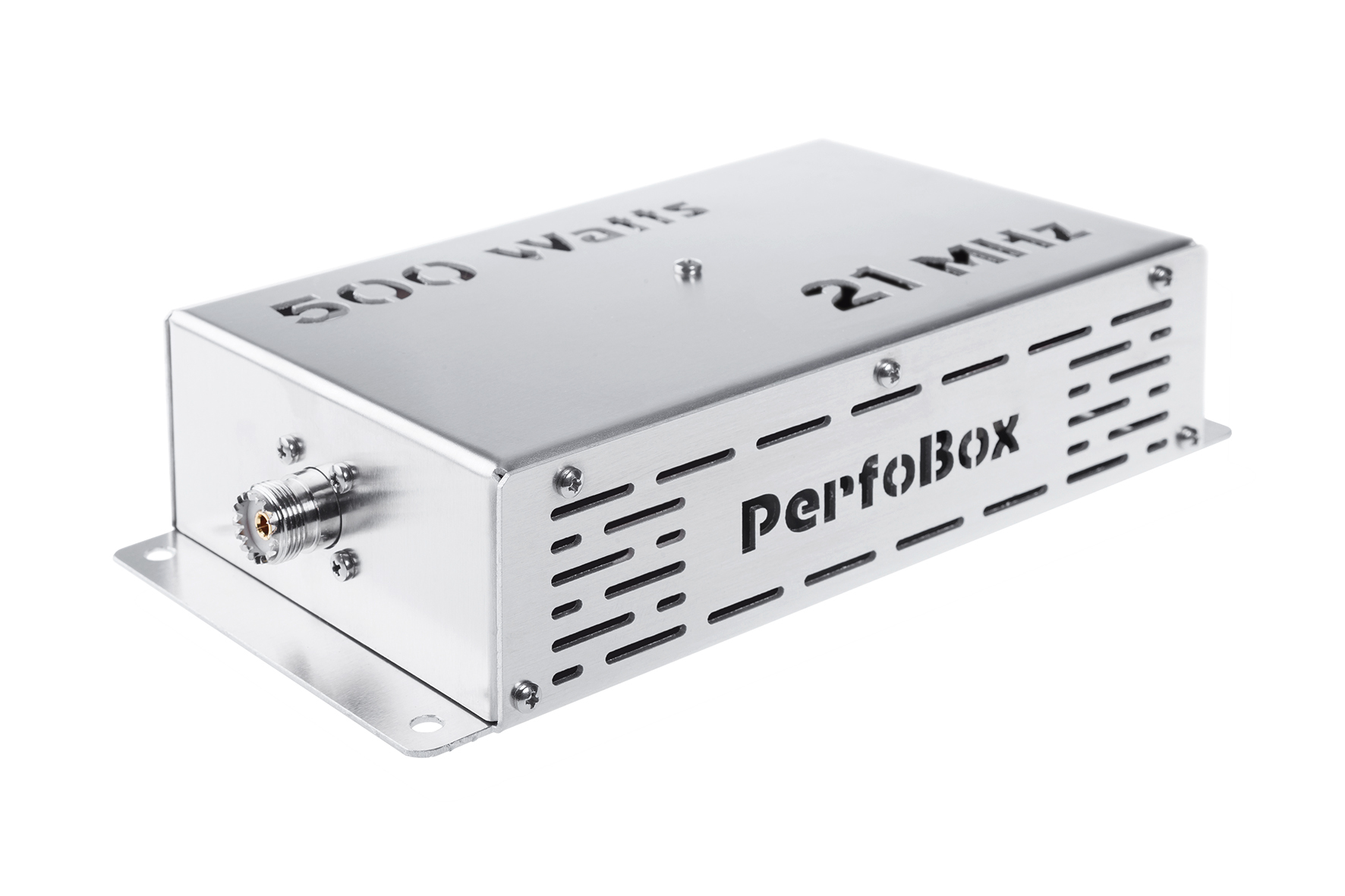

Band Pass Filter «Perfo Box-500», 500W ICAS, 21 MHz
SKU:
PB-F500-21
Availability: In Stock
- Overview
- Additional Information
Download:
Detailed data sheet of «Perfo Box-500» filter series
Typical specifications:
| Impedance: | 50 Ohm |
| Power rating: | 500W |
| Insertion loss: | ≤0,5dB |
| Return loss: | ≥20dB |
| VSWR: | ≤1,2:1 |
| Connector: | SO-239 |
| Dimensions (L x W x H) mm/inches: | 220 x 140 x 65 mm / 8,7” х 5,6” х 2,6” |
| Net weight, kg/lbs.: | ≤0,8 kg / 1,8 lbs |
| Band, MHz: | 21 |
| Power, Watts, ICAS: | 500 |
