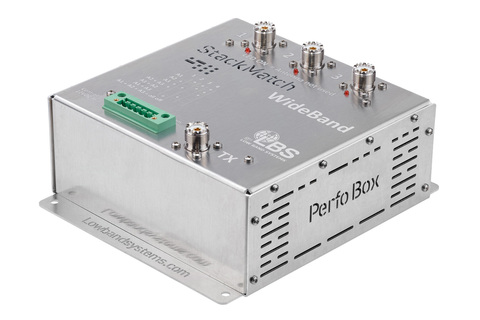

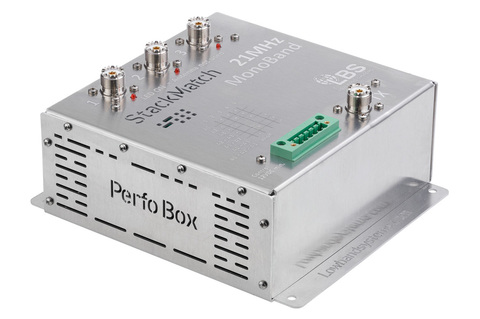

Antenna Phasing Units (Stack Matches) for 2, 3 or 4 antennas;

Mulptiplexer Technology Ready ©

Antenna Phasing Units offer the ultimate performance for combining two, three or even four identical Yagi or Log Periodic directional antennas.

Utilizing wide band ferrite transformer either Mono Band L matching networks for perfect match of 2, 3 or 4 stacked antennas.

Can be made for any HF Amateur band.

LowBandSystem`s Antenna Phasing Relay Unit provides the greatest flexibility with SM4B and UCC-8 push button control consoles, allows easy and visible choice of any possible combination of antennas.

StackMatches used not only to split power in a classic 2/3/4 high stack, but:

with antennas oriented to different azimuth directions splitting power between target areas;
with multiband antennas, followed by Multiplexer and StackMatches to allow simultaneous multiband operation of stacked arrays;
Split power to feed few Power Amplifiers;
