Transmit Stack Matches

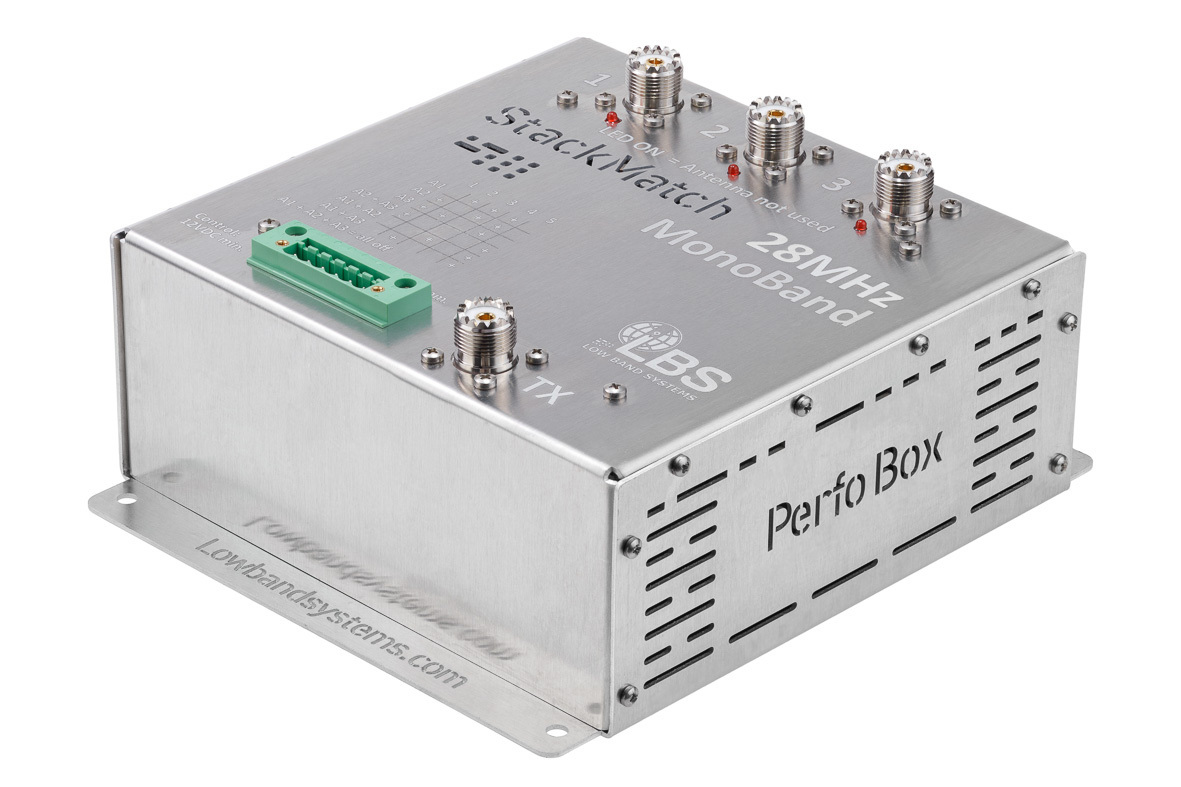

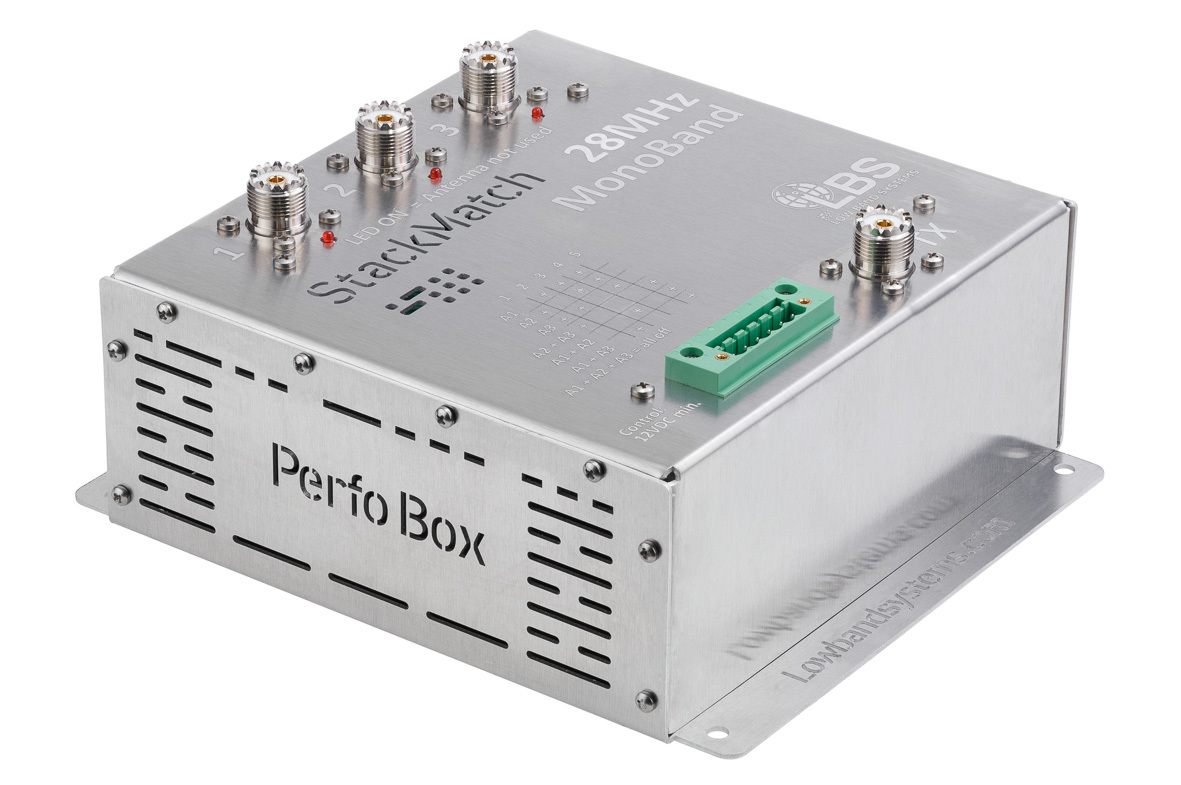

StackMatch, 3000W, 3 antennas, 28Mhz

SKU: SM3k3-10-UHFa

Availability: By Order

Overview

SM3k series of Stacking Switches

Mono band Stacking switch SM3k3-28Mhz

Multiplexer technology ready ©

Can be used in building high power matrix multiplexer distribution systems.

Please see N6MJ`s write up on this technique

Two optimized matching networks for 2 or 3 antenna stacking

Control options: any one or any combination of antennas:

1+2+3

1+3

2+3

1

2

3

Unselected antenna ports are terminated 50 Ohm, 8W.

4 connectors, 12Vdc, MOV protected for all six control cable lines.

Band: 28 Mhz

VSWR: ≤ 1:1,05 28Mhz

Losses: ≤ 0,1 db at 28MHz

Power, Watts, ICAS - 3000W at 1,5 : 1 SWR
