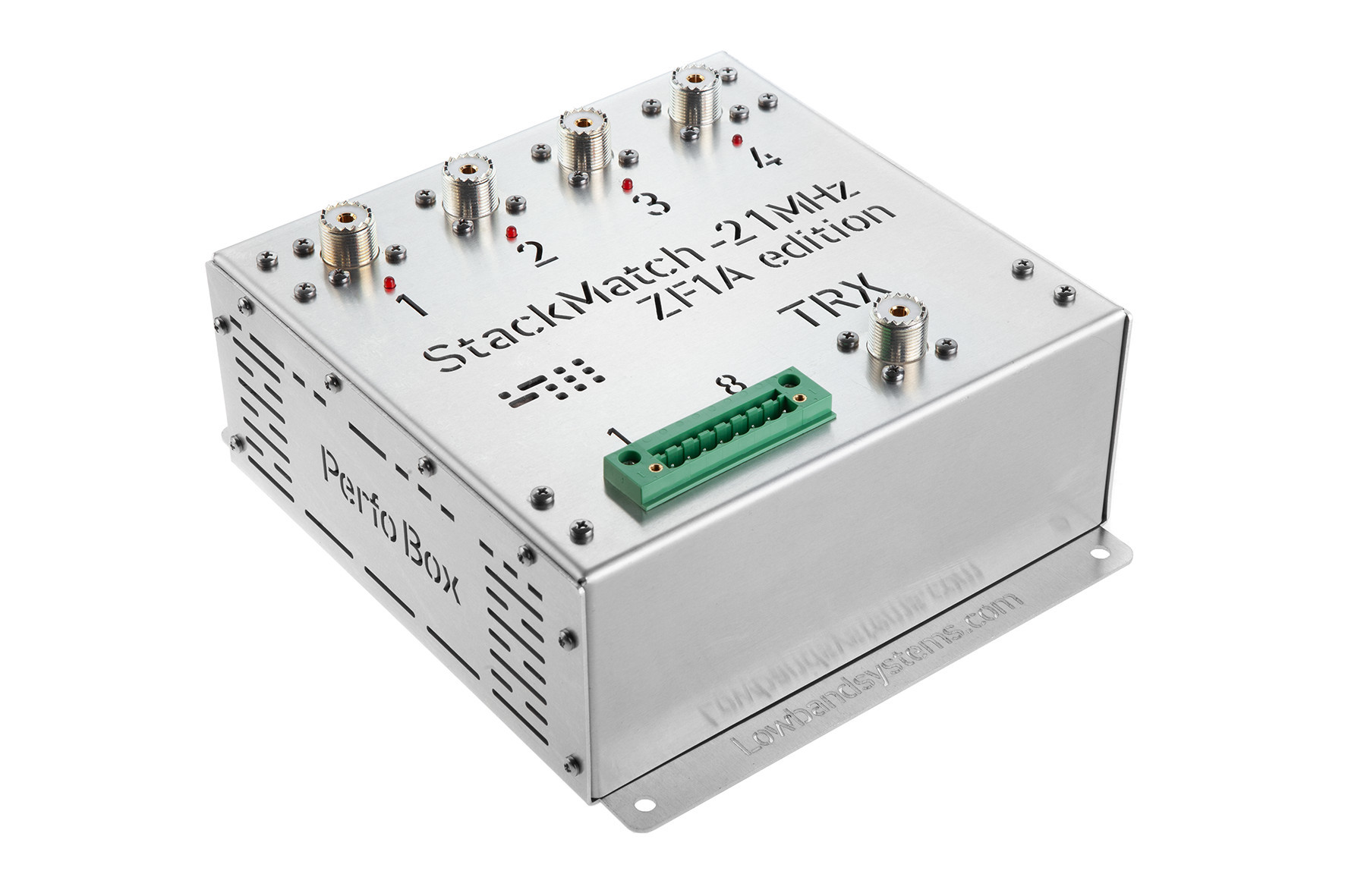

StackMatch, 3000W, 4 antennas, 14Mhz
SKU:
SM4-3kW-20-N
Availability: By Order
- Overview
SM4-3kW series of Stacking Switches
Datasheet "Wide band Stacking switch SM4-3kW-MonoBand"
Please see N6MJ`s write up on this technique
Multiplexer technology ready ©
Non used ports loaded to 50 ohms resistors.
Three optimized matching networks for 2 or 3 or 4 antenna stacking
Band: 14 Mhz
≤ 0,05 db
000W at 1,5 : 1 antennas SWR.
Control options: greatest flexibility with CC-SM4B and CC-UCC-8 control consoles, allows any possible combination of antennas:
- any single antenna or one of 14 (yes, fourteen) combination of antennas!
- 1+2+3+4
- 1+2+3
- 1+2+4
- 2+3+4
- 1+2
- 1+3
- 1+4
- 2+3
- 2+4
- 3+4
- 1
- 2
- 3
- 4
Control voltage: 12VDC (24VDC on custom order)
Control wire required: Eight conductor
MOV surge protection on control lines.
