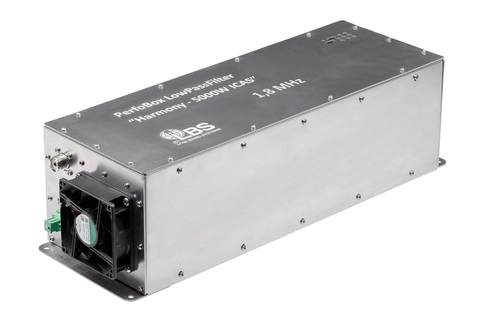

5 KW LPF

These high-power (5000 W ICAS) Low Pass Filters are to be fitted on the output side of your linear amplifier, filtering out harmonics.

1.8Mhz - 3.5MHz - 7Mhz - 14MHz - 21Mhz - 28MHz

Applications

• Mitigating intra and inter station interference during contests especially if you suffer of harmonics generated in your power amplifier .
• High power handling capability – up to 5000 Watts ICAS
• Pretty low SWR ≤ 1:1.2
• Designed for extreme (≤0.15 dB is typical) insertion loss to avoid overheating and power loss
• Exceptional out of band rejection, typically > 70 dB and sometimes as high as 90 dB on harmonics bands.
• Standard SO-239 (UHF) female coax connectors. N and 7/16″ DIN connectors available on special order
• Band pass, low pass, high pass and other filters available for non-amateur frequencies and power levels. Contact us with your requirements.
