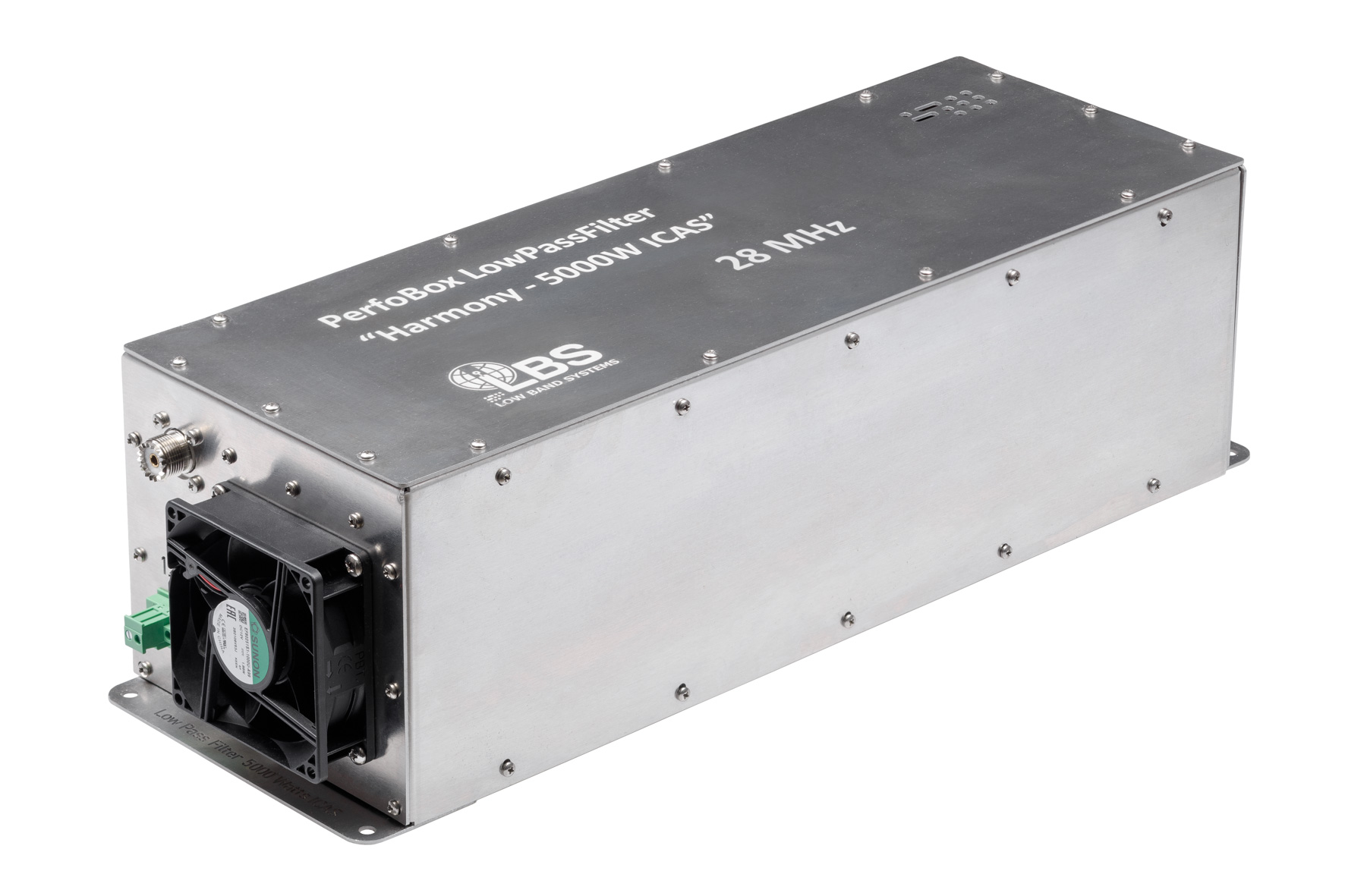

These high-power (5000 W ICAS) low-pass filters are designed to be installed on the output of your linear amplifier to filter out harmonics.
Available bands: 1.8 MHz – 3.5 MHz – 7 MHz – 14 MHz – 21 MHz – 28 MHz
Applications & Features
- Mitigates intra- and inter-station interference during contests, especially if you suffer from harmonics generated by your power amplifier.
- High power handling capability – up to 5000 W ICAS.
- Very low VSWR (≤ 1.2 : 1).
- Extremely low insertion loss (typically ≤ 0.15 dB) to minimize overheating and power loss.
- Exceptional out-of-band rejection: typically > 70 dB, up to 90 dB on harmonic bands.
- High-quality Teflon SO-239 (UHF) female coaxial connectors. N-type and 7/16″ DIN connectors are available on special order.
- Compact size: 45 × 15 × 15 cm, with flanges for convenient mounting.
- Band-pass, low-pass, high-pass, and other filters are available for non-amateur frequencies and power levels.
Contact us with your requirements.
