Transmit Stack Matches

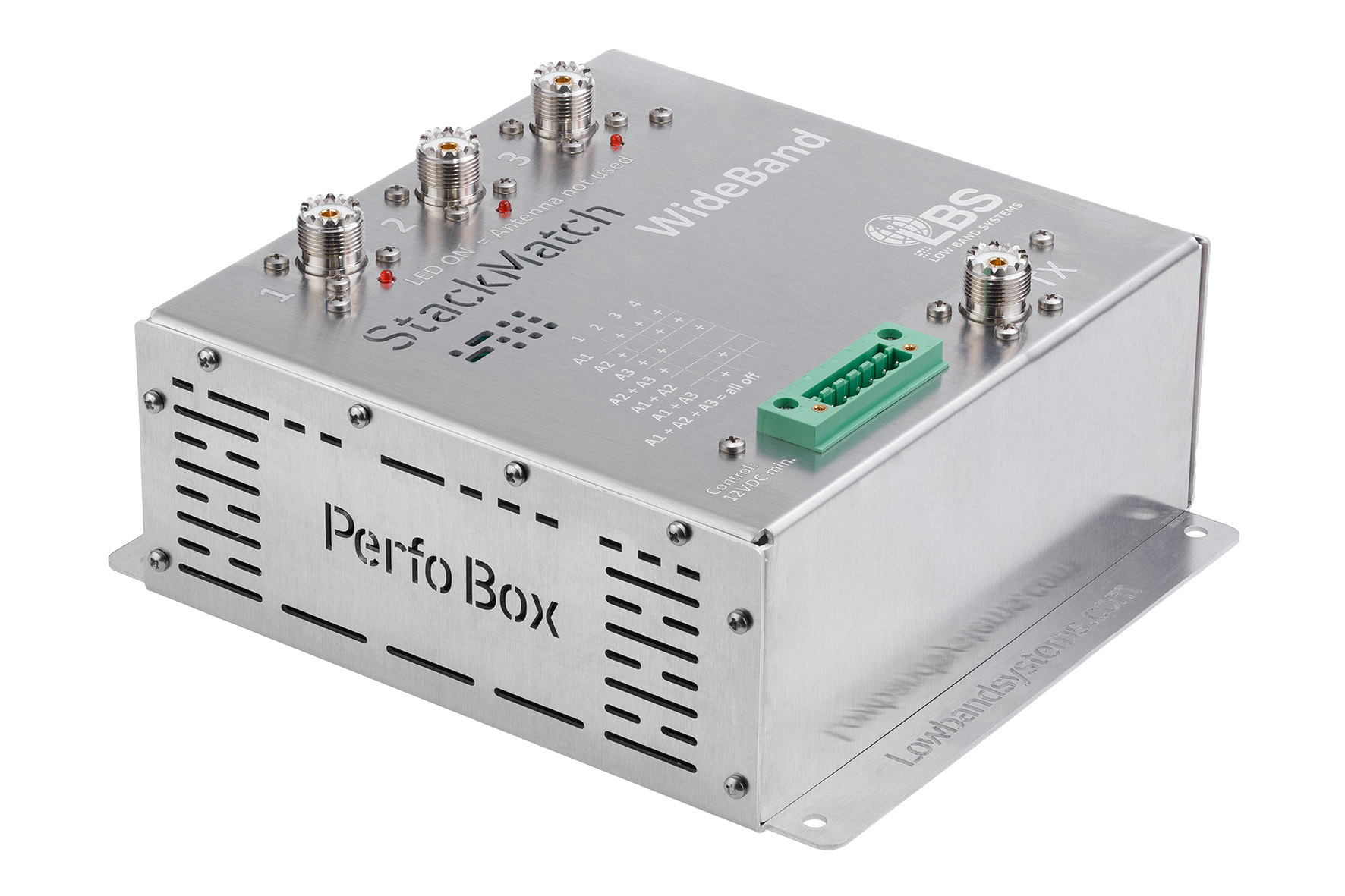

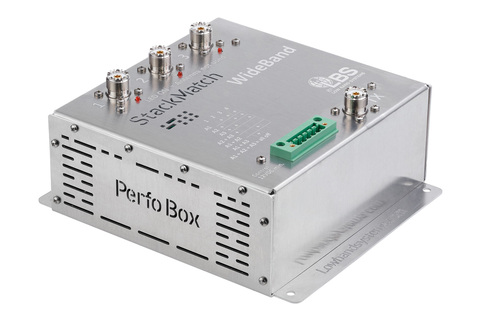

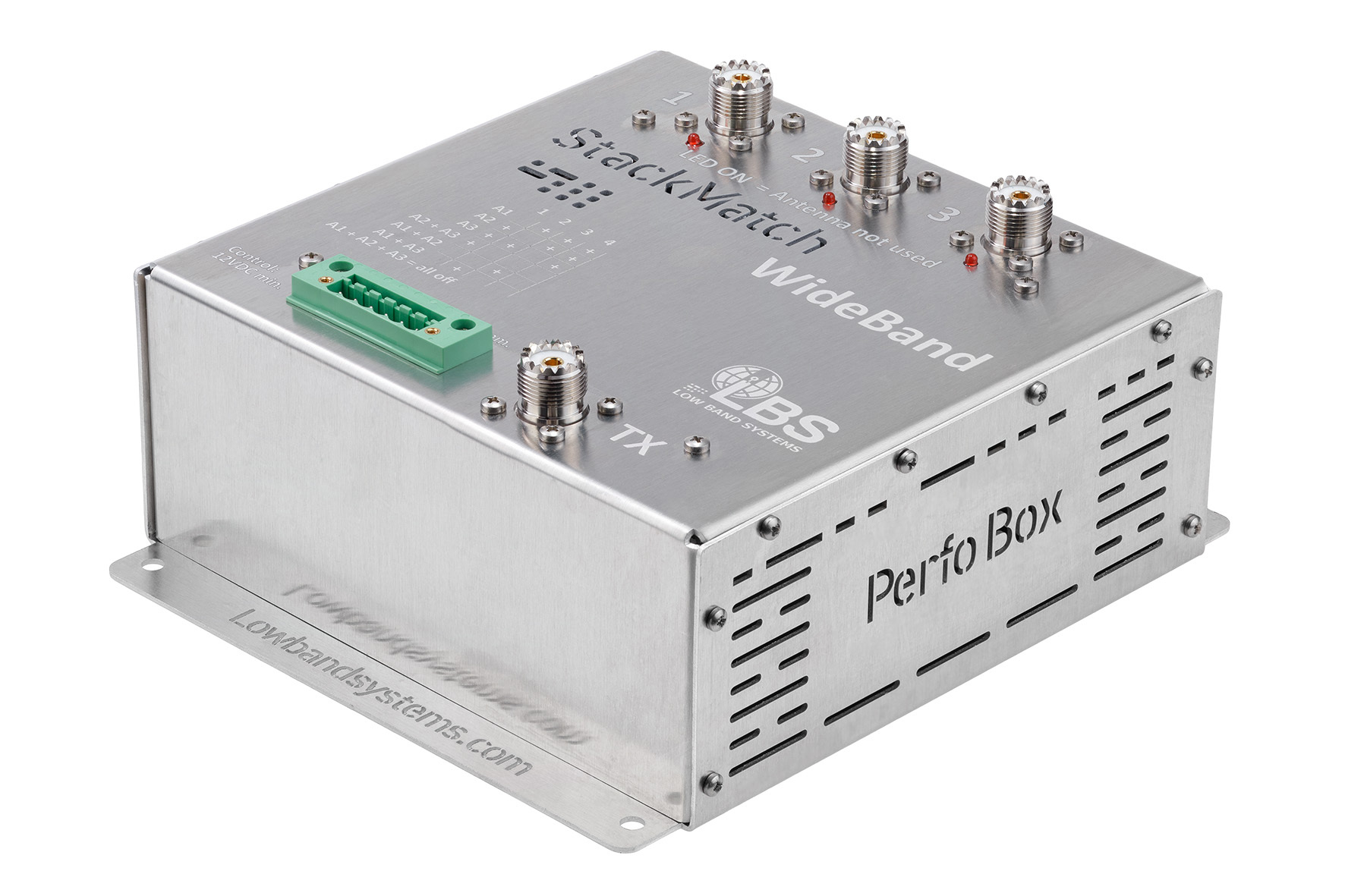

StackMatch, 3000W, 3 antennas, wide band

SKU: SM3kW3-WB-UHFa

Availability: By Order

Overview

SM3k series of Stacking Switches

Wide band Stacking switch SM3k3-WB

Multiplexer technology ready ©

Non used ports loaded to 50 ohms resistors.

Can be used in building high power matrix multiplexer distribution systems.

Band: 7-30 Mhz

VSWR: ≤ 1:1,3 7-30Mhz

Losses: ≤ 0,05 db at 30MHz

Power, Watts, ICAS - 3000W at 1,5 : 1 SWR

Control options: any one or any combination of antennas:

1+2+3

1+3

2+3

1

2

3

Control voltage: 12Vdc
