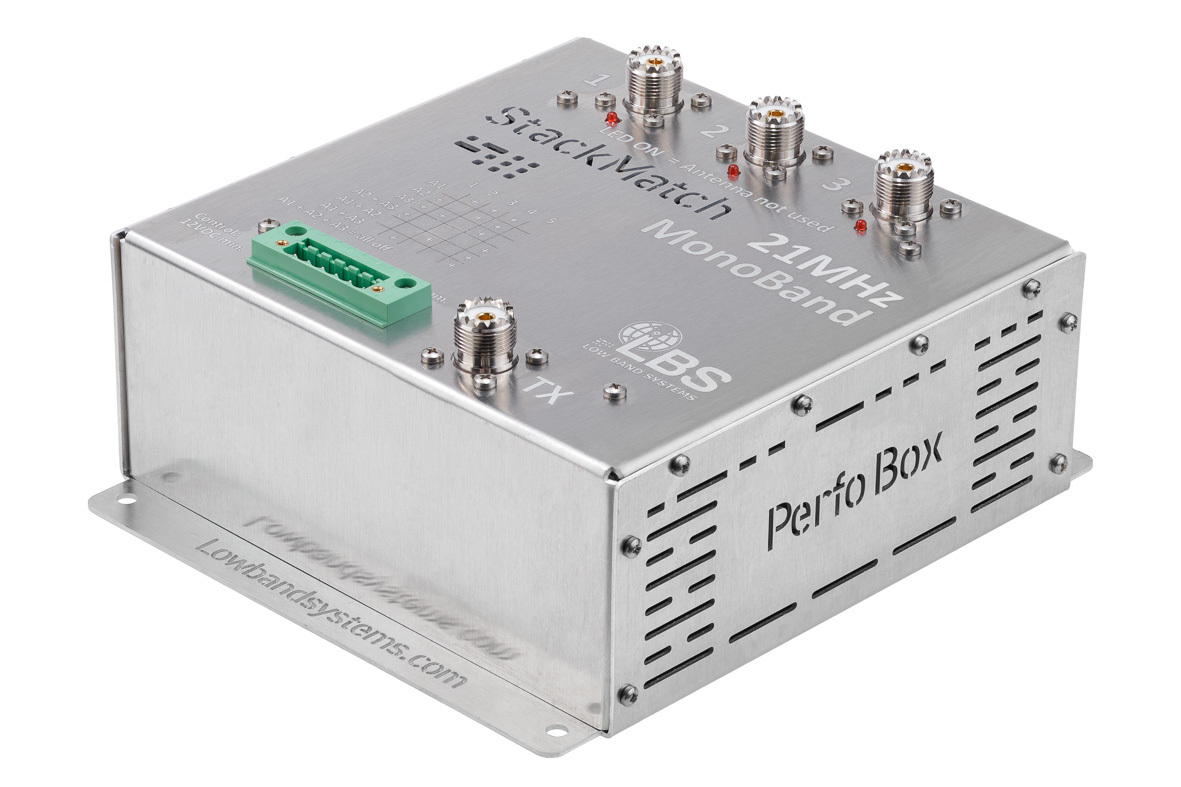

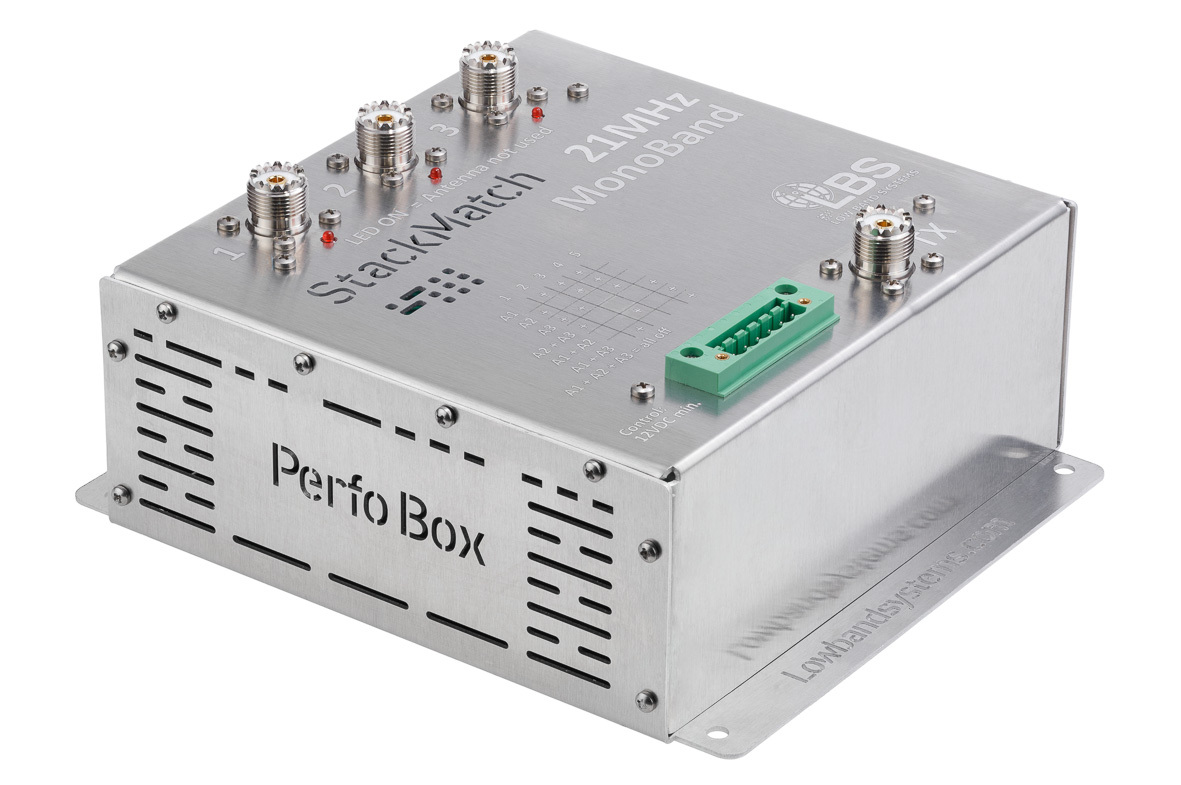

StackMatch, 3000W, 3 antennas, 21Mhz

SKU: SM3-3kW-15-N
Availability: By Order
210 Eur
add to compare Compare
  • Overview

SM3-3kW series of Stacking Switches

Datasheet "Wide band Stacking switch SM3-3kW-MonoBand"

Please see N6MJ`s write up on this technique



Multiplexer technology ready ©

Non used ports loaded to 50 ohms resistors.

Two optimized matching networks for 2 or 3 antenna stacking
Band: 21 Mhz
≤ 0,05 db
000W at 1,5 : 1 antennas SWR.



Control options: greatest flexibility with CC-SM4B and CC-UCC-8 control consoles, allows any possible combination of antennas:
  • 1+2+3
  • 1+3
  • 1+2
  • 2+3
  • 1
  • 2
  • 3

Control voltage:                                                     12VDC (24VDC on custom order)

Control wire required:                                             Five conductor

MOV surge protection on control lines.
