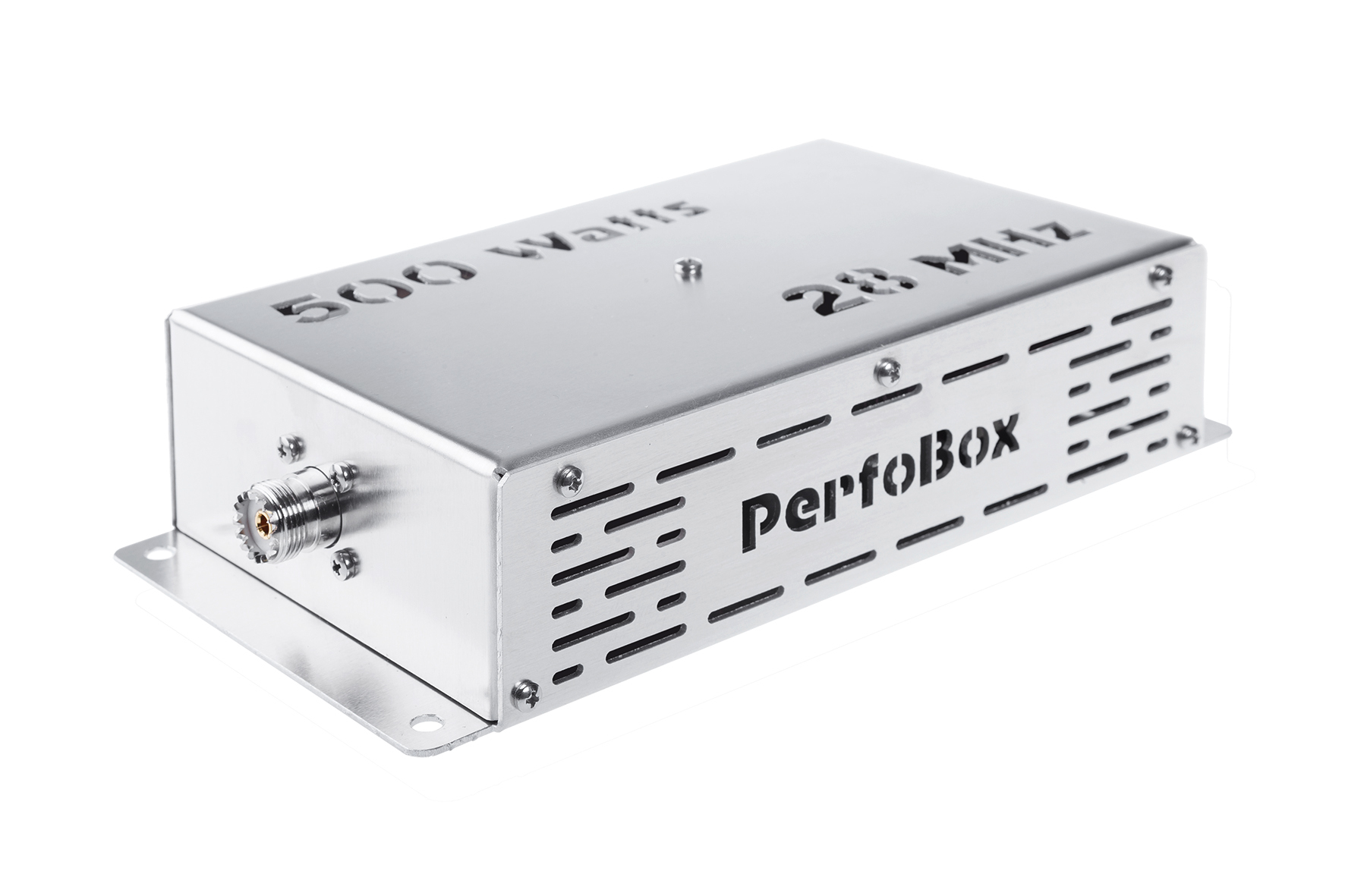

Detailed data sheet of «Perfo Box-500» filter series
Typical specifications:
Impedance: | 50 Ohm |
Power rating: | 500W |
Insertion loss: | ≤0,5dB |
Return loss: | ≥20dB |
VSWR: | ≤1,2:1 |
Connector: | SO-239 |
Dimensions (L x W x H) mm/inches: | 220 x 140 x 65 mm / 8,7” х 5,6” х 2,6” |
Net weight, kg/lbs.: | ≤0,8 kg / 1,8 lbs |
Band, MHz: | 28 |
Power, Watts, ICAS: | 500 |
