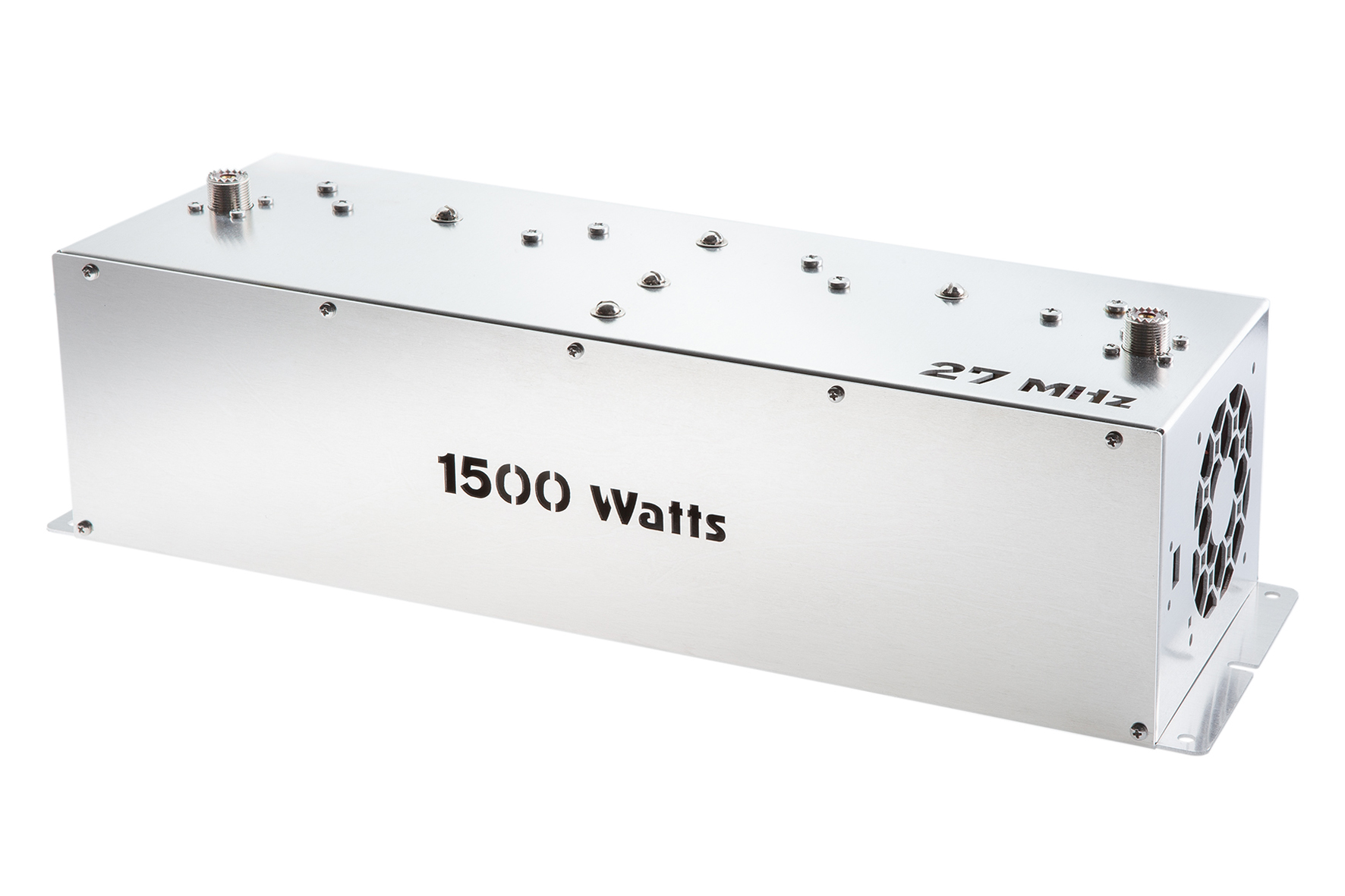

Band Pass Filter «Perfo Box-1500», 1500W ICAS, CB band, 27 MHz
SKU:
PB-F1500-27CB
Availability: In Stock
- Overview
- Additional Information
Download:

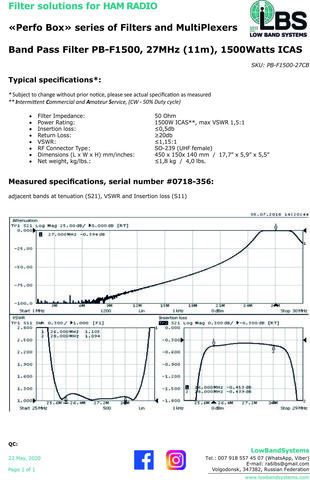

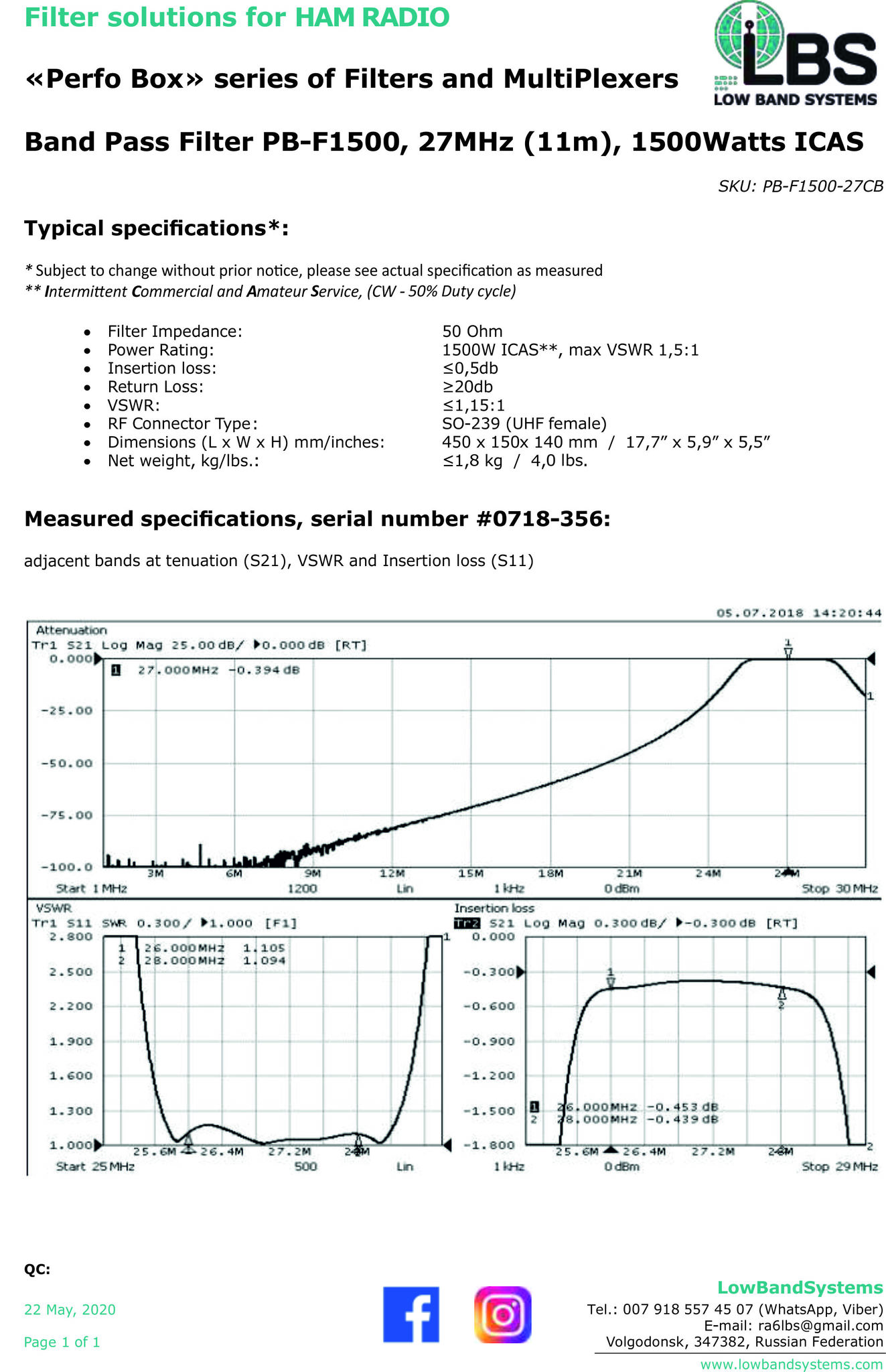

Detailed data sheet of «Perfo Box-1500» CB band
Typical specifications:
| Impedance: | 50 Ohm |
| Power rating: | 1500W |
| Insertion loss: | ≤0,5dB |
| Return loss: | ≥20dB |
| VSWR: | ≤1,2:1 |
| Connector: | SO-239 |
| Dimensions (L x W x H) mm/inches: | 450 x 150 x 140 mm / 17,7” х 5,9” х 5,5” |
| Net weight, kg/lbs.: | ≤1,8 kg / 4,0 lbs |
| Band, MHz: | 27 |
| Power, Watts, ICAS: | 1500 |
