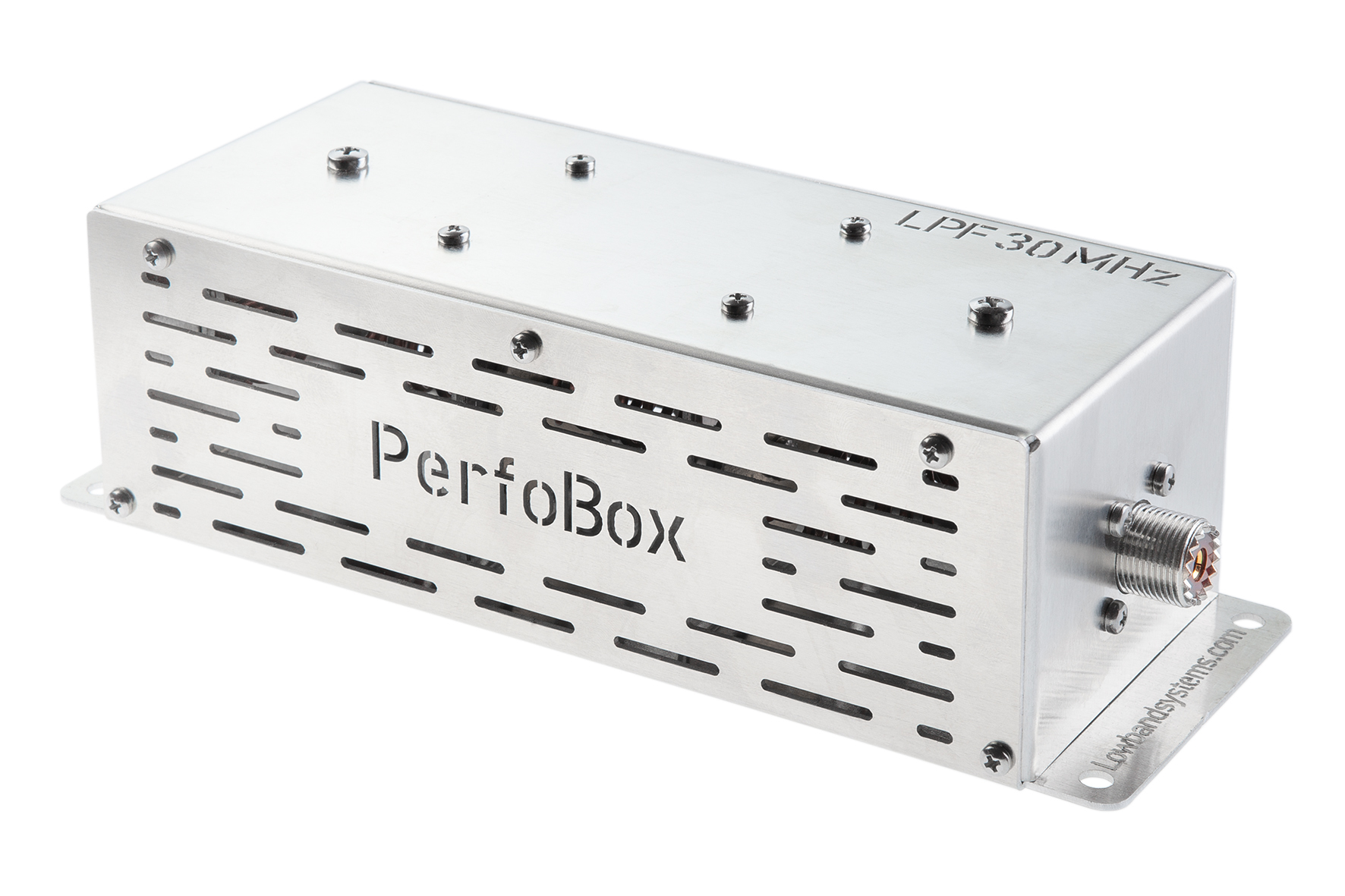

Low Pass Filter "Perfo Box-1500", 1500W ICAS, 30 MHz

SKU: PB-LPF1500-30
Availability: In Stock
100 Eur
85 Eur
add to compare Compare
  • Overview
  • Additional Information

Download:



Detailed data sheet of «Perfo Box-1500» LowPassFilter series

Typical specifications:

Impedance:        50 Ohm
Maximum allowable continious Power: 1500 W
Power handling, ICAS: 3000 W
Losses in the pass band: typical ≤0,15 dB
VSWR:    typical ≤1: 1,1
Rejection on 51 MHz:  typical ≥ 50 dB
Rejection on 70 MHz: typical ≥ 70 dB
Rejection on 145 MHz:  typical ≥ 60 dB
Size:  225x90x75 mm / 9” х 4” х 3”
Net weight:  ≤0,6 kg / 1,5 lbs
Band, MHz: 30
Power, Watts, ICAS: 1500
