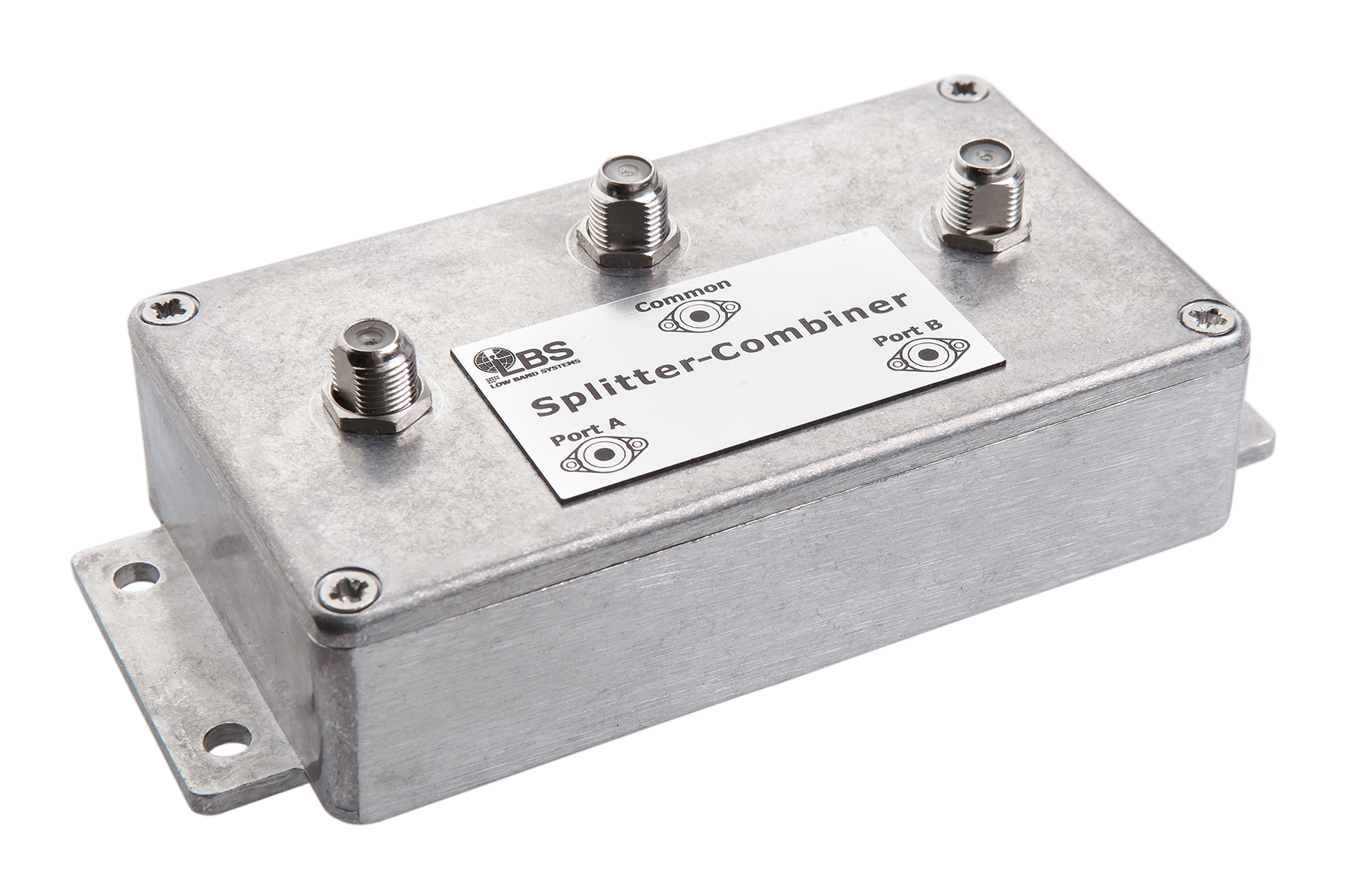

Splitter-Combiner, 1A2R, 75 Ohm system, 3xF female, -3.1db losses, MF-HF range
SKU:
1A2R-75A
Availability: In Stock
- Overview
Splitter-Combiner 1A2R:
Features and Specifications:
- Uncompromised 75 ohms design;
- VSWR at antenna inputs typically 1.3:1 or better;
- Insertion loss: 3.25 dB;
- Isolation between the two output ports is -25db;
- Broad, 300 kHz through 30 MHz operating range;
- Metal housing for superior shielding and longer life;
- High quality components;
- Reliable CATV F connectors;
