Splitter-Combiner, 1A4R, 50 Ohm system, 5xUHF female, -6.2db losses, MF-HF range .
SKU:
1A4R-50A
Availability: By Order
- Overview

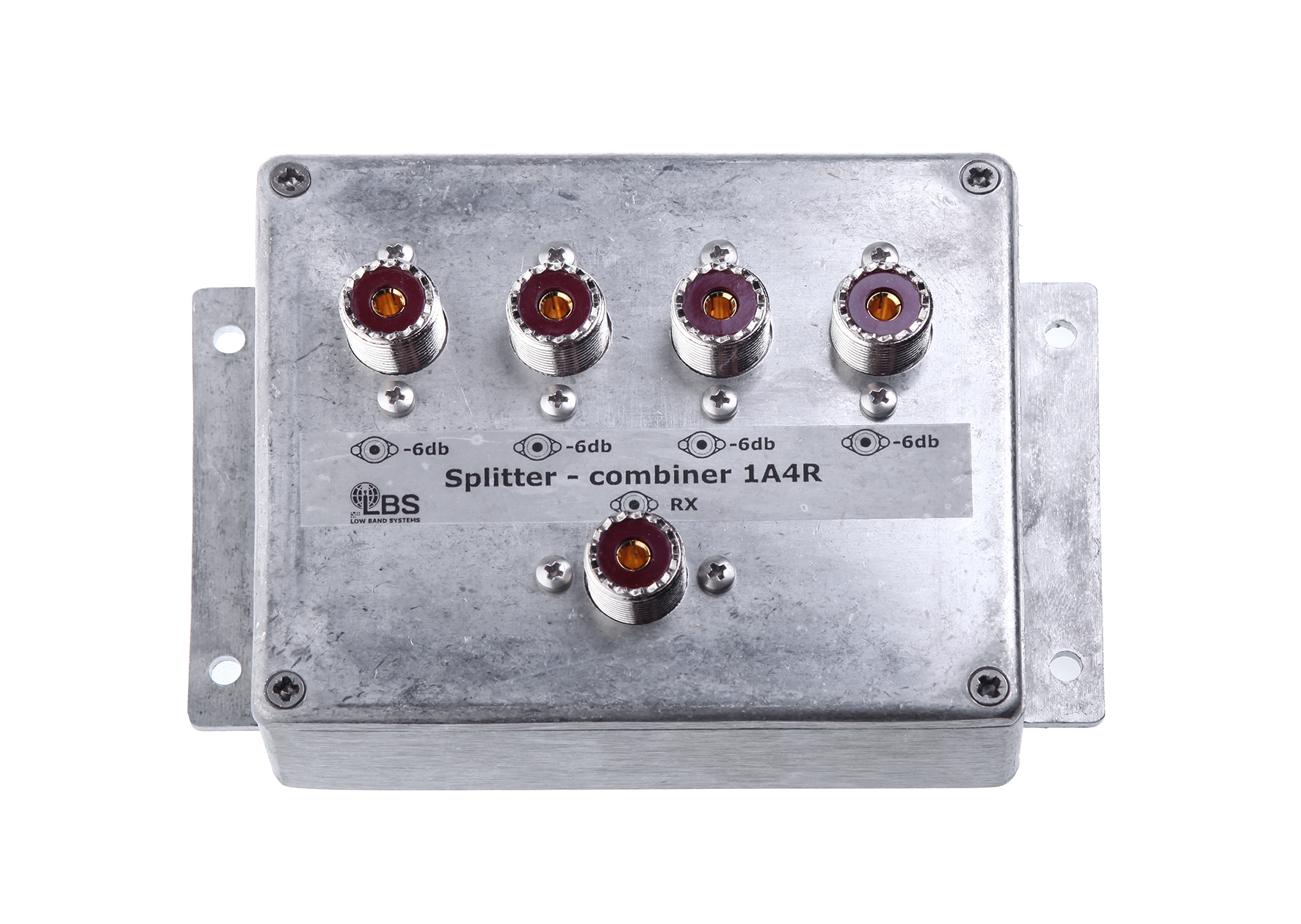

Splitter-Combiner 1A4R:
Features and Specifications:
- Uncompromised 50 ohms design;
- VSWR at antenna inputs typically 1.3:1 or better;
- Insertion loss: 6.5 dB;
- Isolation between the any output ports is -40db;
- Broad, 300 kHz through 30 MHz operating range;
- Metal housing for superior shielding and longer life;
- High quality components;
- Reliable CATV SO-239 connectors;
