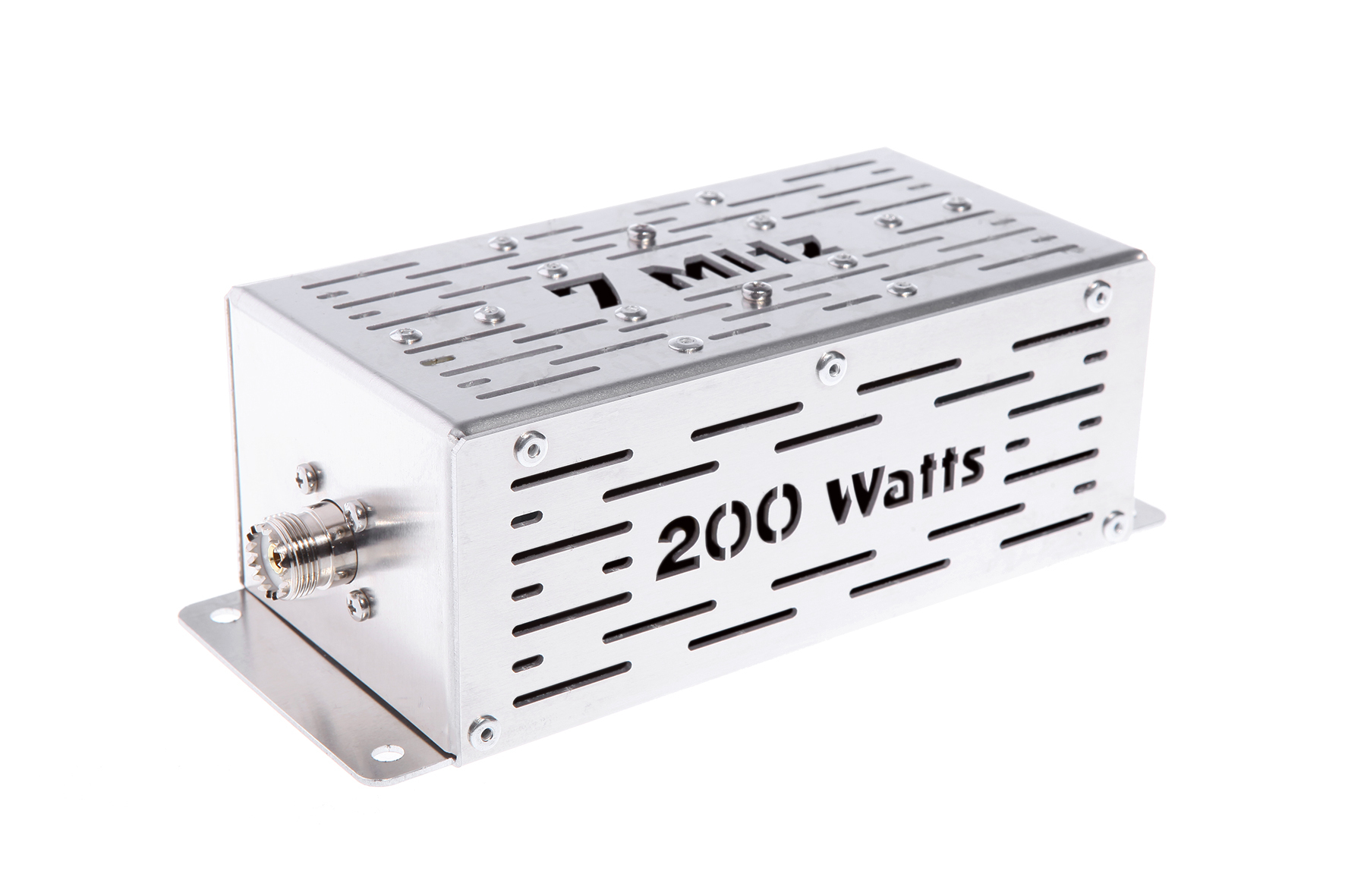

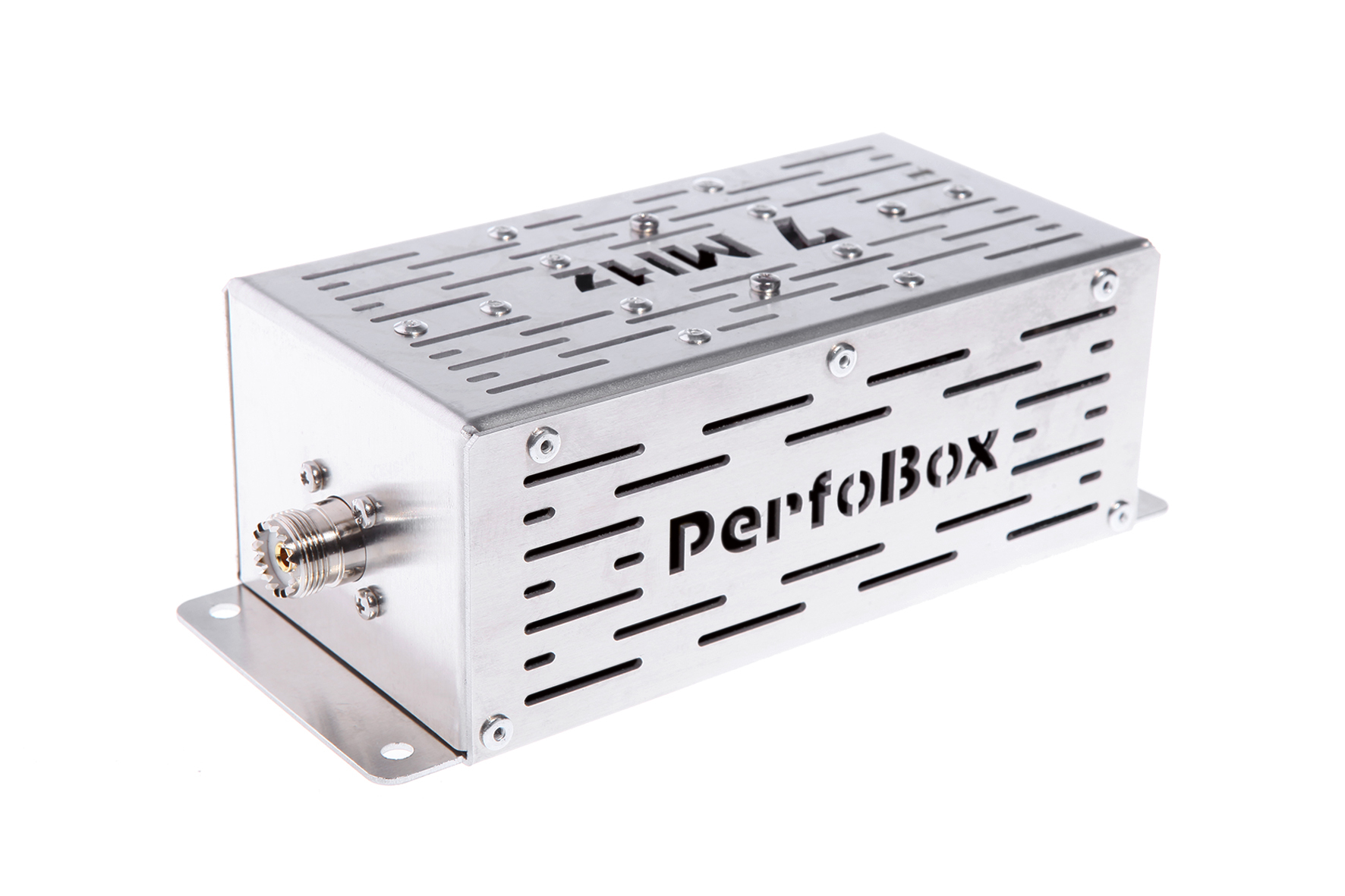

Detailed data sheet of «Perfo Box-200» filter series
Typical specifications:
Impedance: | 50 Ohm |
Power rating: | 200W |
Insertion loss: | ≤0,5dB |
Return loss: | ≥20dB |
VSWR: | ≤1,2:1 |
Connector: | SO-239 |
Dimensions (L x W x H) mm/inches: | 195 x 90 x 65 mm / 7,7” х 3,6” х 2,6” |
Net weight, kg/lbs.: | ≤0,5 kg / 1,1 lbs |
Band, MHz: | 7 |
Power, Watts, ICAS: | 200 |
