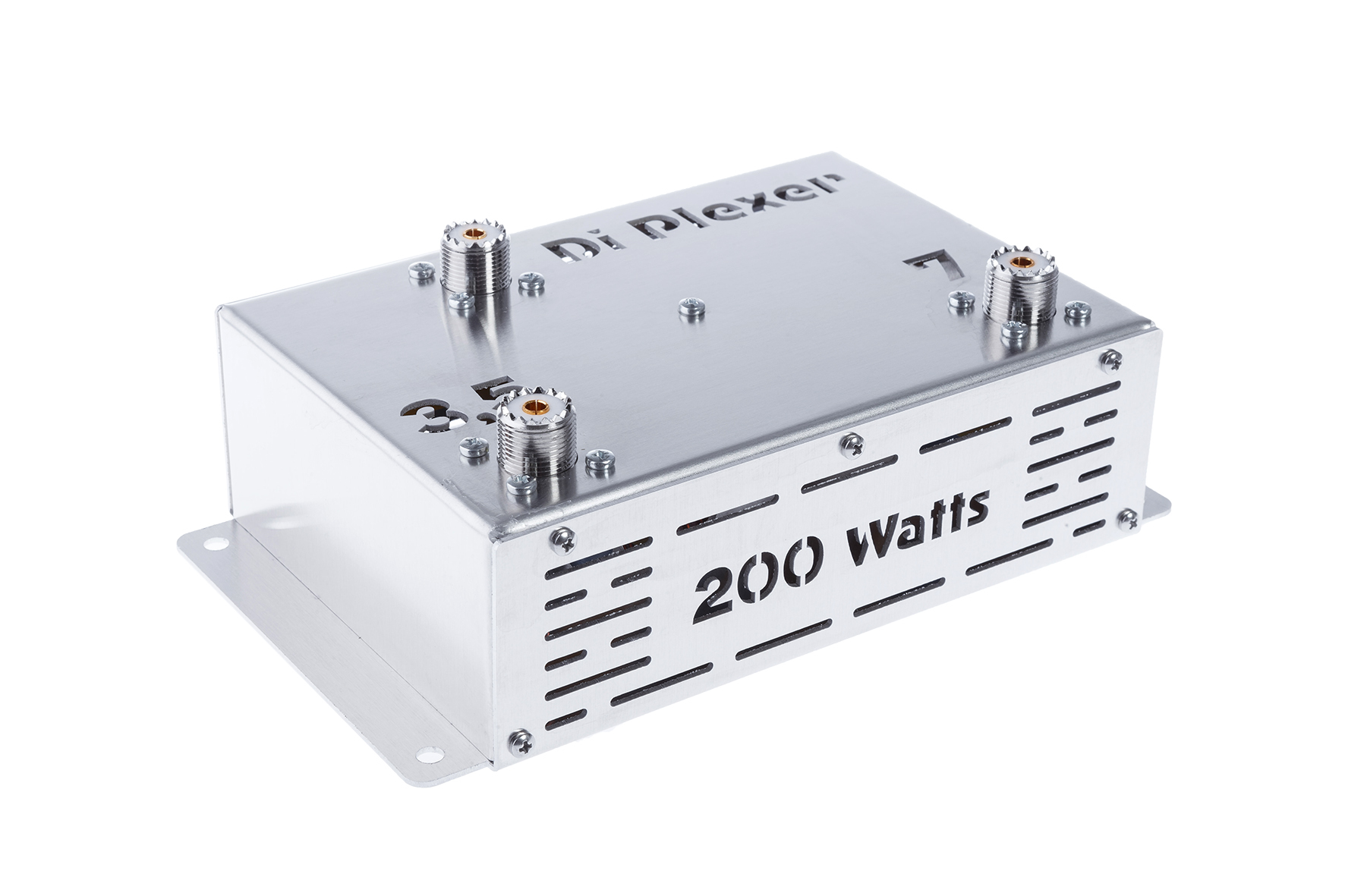

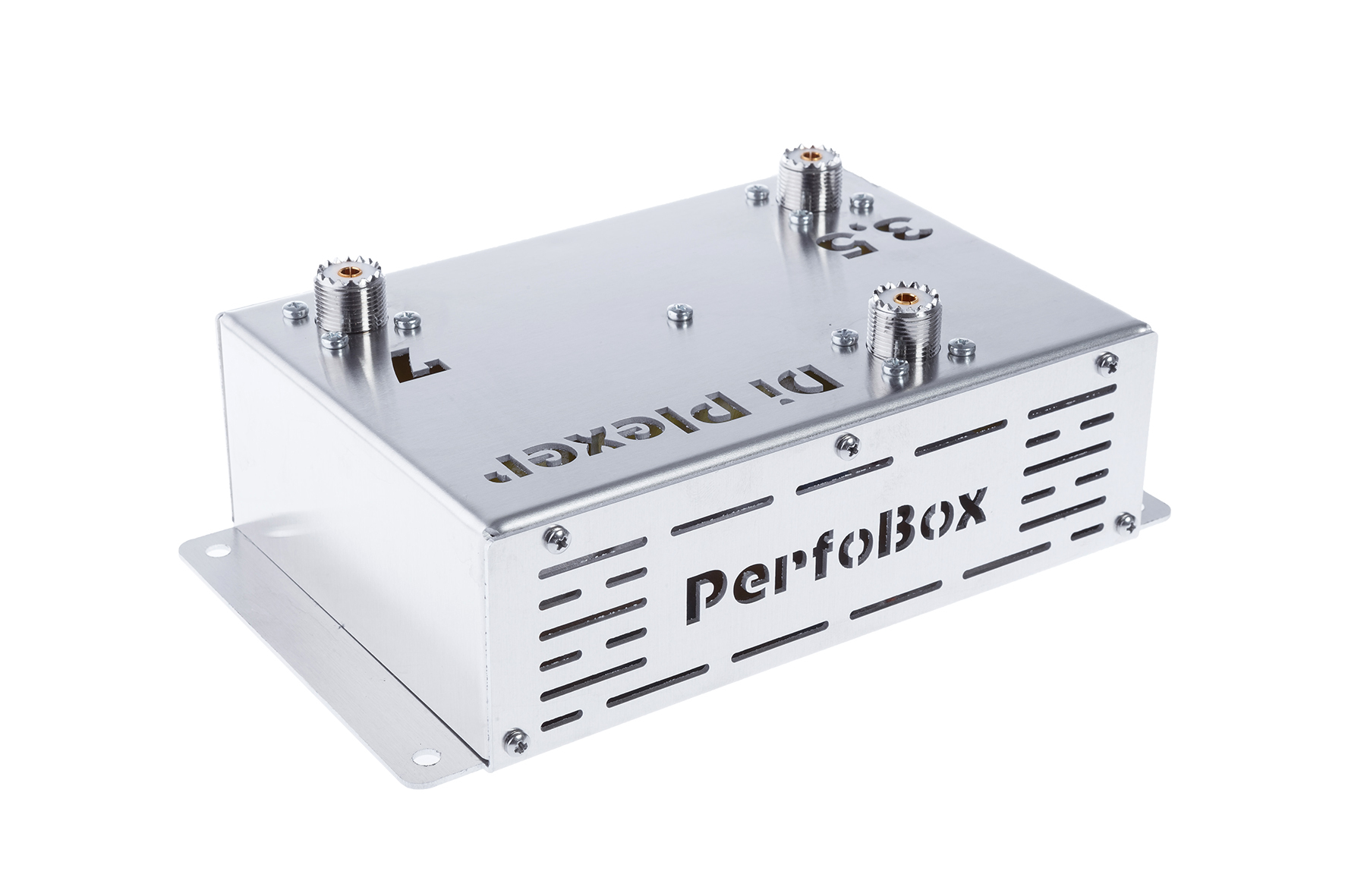

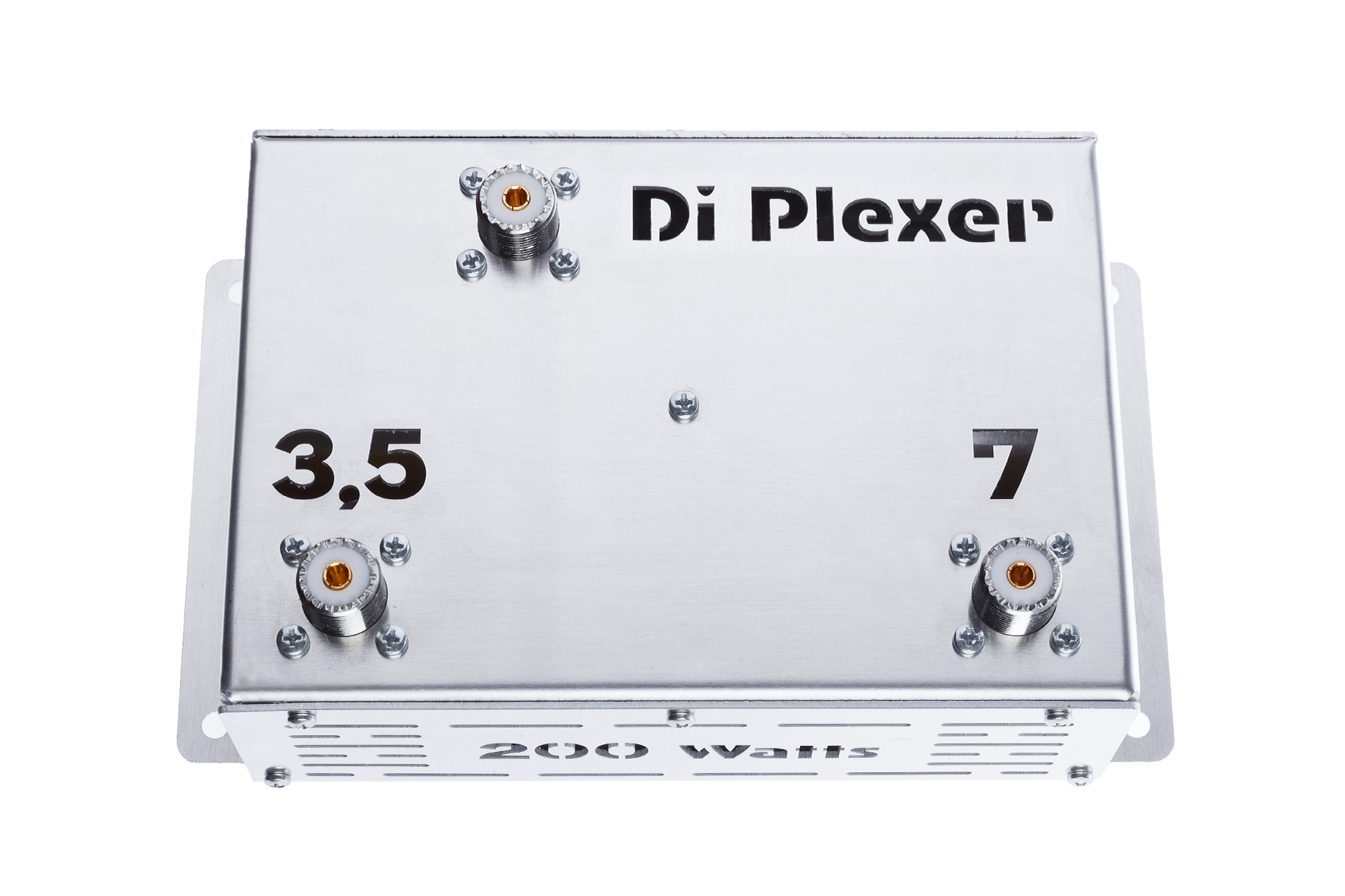

DiPlexer «Perfo Box-200», 200W ICAS, 3.5 MHz / 7 MHz
SKU:
PB-DP200-3.5/7
Availability: In Stock
- Overview
- Additional Information
Download:
Detailed data sheet of DiPlexer «Perfo Box-200»
Typical specifications:
| Impedance: | 50 Ohm |
| Maximum ICAS power per band port: | 200 W |
| Maximum ICAS power at antenna port: | 400 W |
| VSWR: | ≤1,2 : 1 |
| Connector: | SO-239 (UHF female) |
| Dimensions (L x W x H) mm/inches: | 200 x 125 x 70 mm / 7,9” х 4,9” х 2,8” |
| Net weight, kg/lbs.: | ≤0,45 kg / 1,0 lbs |
| Band, MHz: | 3,5 / 7 |
| Power, Watts, ICAS: | 200 |
