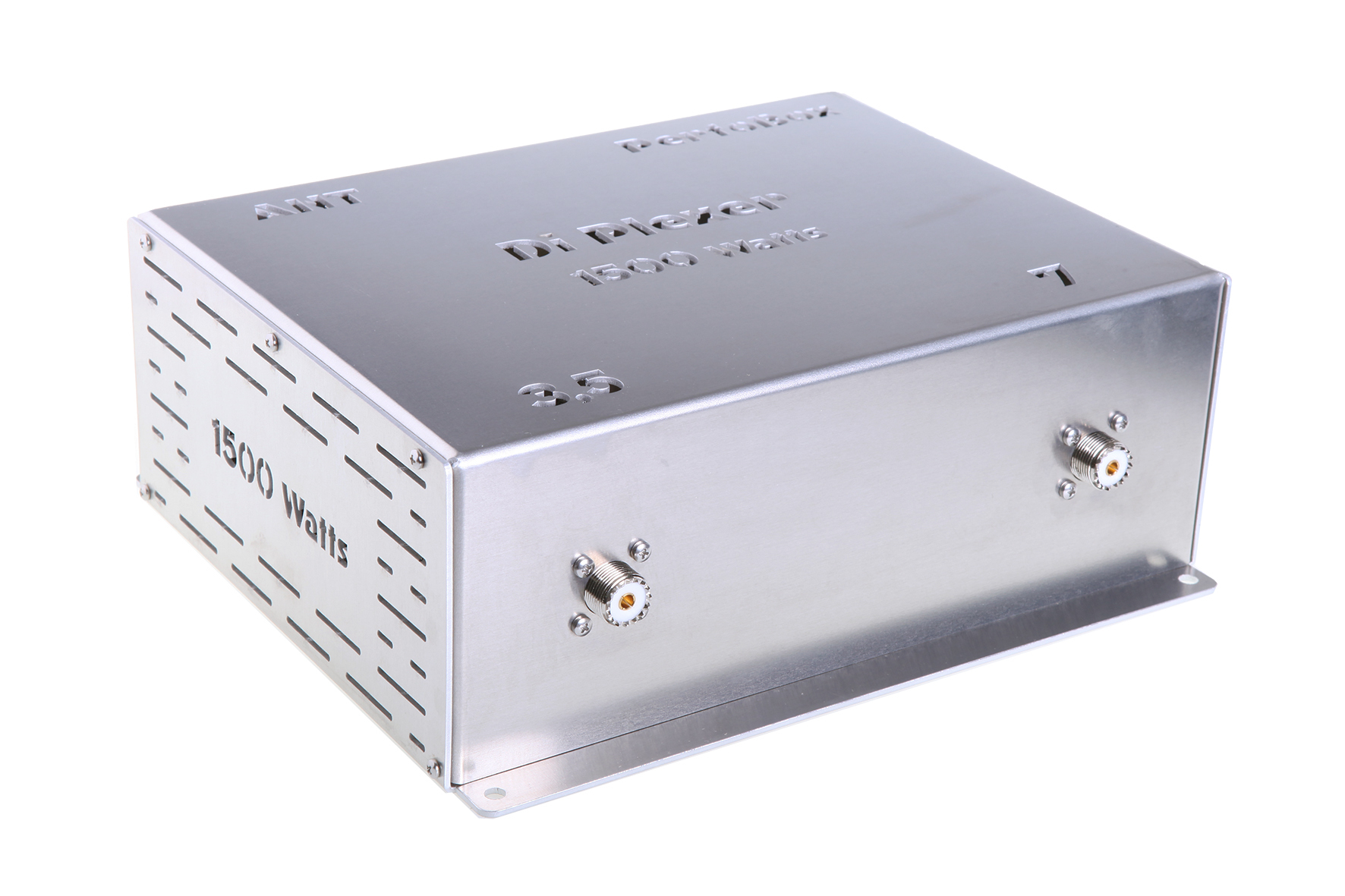

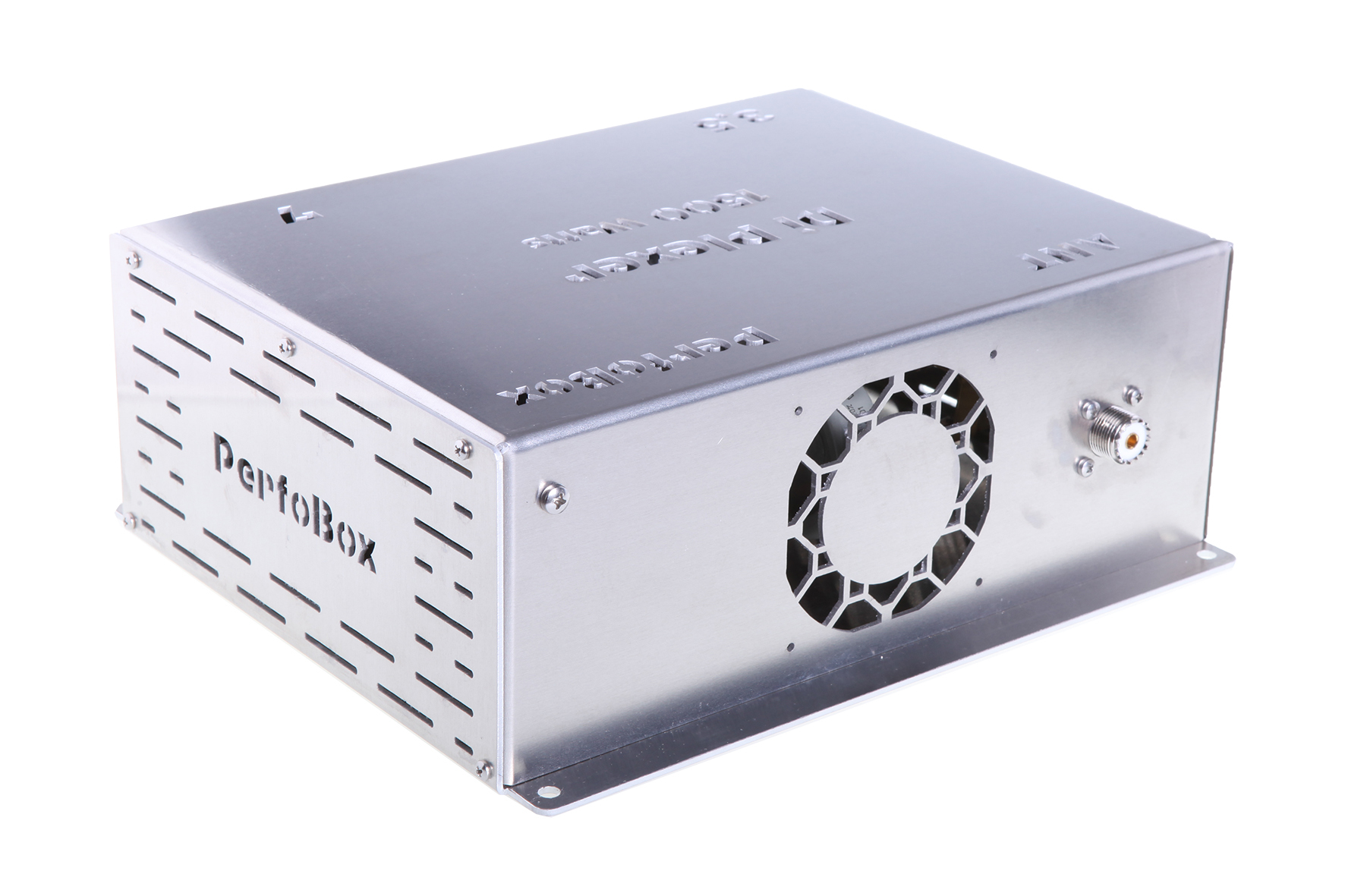

DiPlexer «Perfo Box-1500», 1500W ICAS, 3.5 MHz / 7 MHz
SKU:
PB-DP1500-3.5/7
Availability: In Stock
- Overview
- Additional Information
Download:
Datasheet, DiPlexer "Perfo Box-1500", 3.5/7
Typical specifications:
| Impedance: | 50 Ohm |
| Maximum ICAS power per band port: | 1500 W |
| Maximum ICAS power at antenna port: | 3000 W |
| VSWR: | typical ≤1: 1,25 |
| Cooling fans: | 12VDC, 2200RPM, 29.9CFM |
| Size: | 275x255x100 mm / 10,8” х 10,0” х 3,9” |
| Net weight (1 pcs., option fans incl.): | ≤2,1 kg / 4,6 lbs |
| Band, MHz: | 3,5 / 7 |
| Power, Watts, ICAS: | 1500 |
