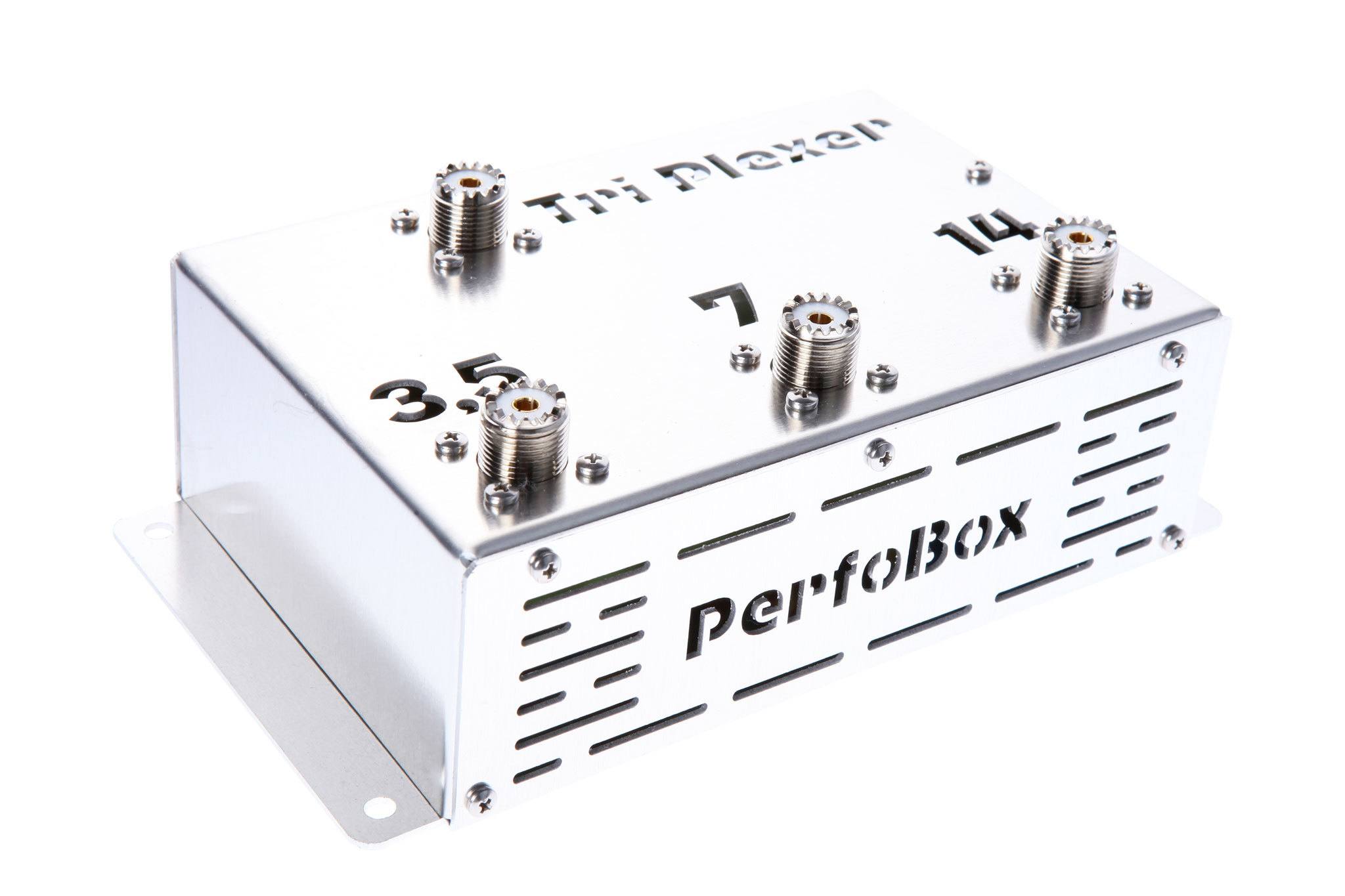

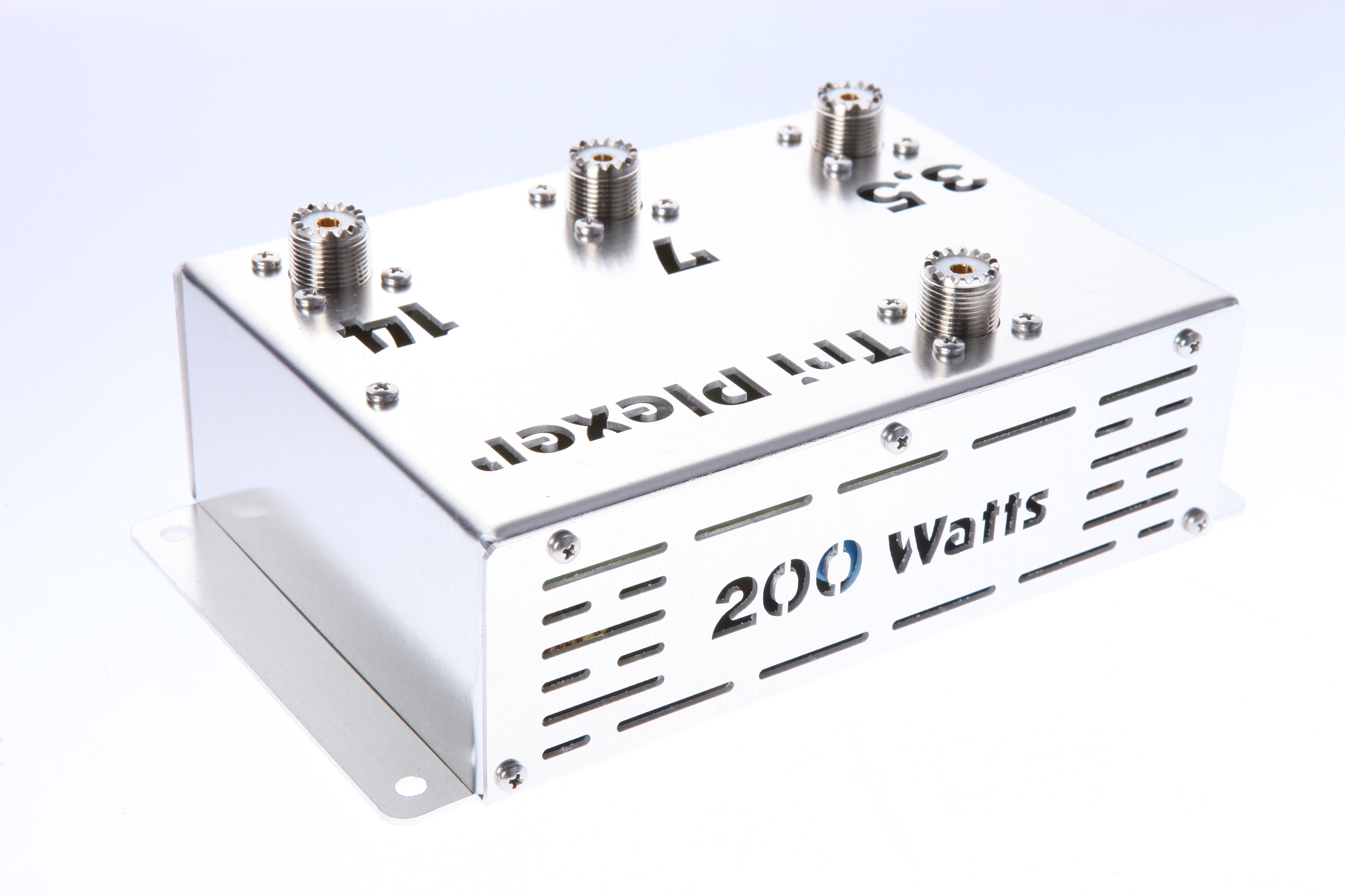

TriPlexer «Perfo Box-200», 200W ICAS, 3.5-7-14 MHz

SKU: PB-TP200804020

Availability: By Order

Overview
Additional Information

Download:

Detailed data sheet of TriPlexer «Perfo Box-200»

Application Note AN_MP-01 “Using High Performance Multiplexers to improve your HF station Capability”

Typical specifications:

Impedance:	50 Ohm
Maximum ICAS power per band port:	200 W
Maximum ICAS power at antenna port:	400 W
VSWR:	≤1,2 : 1
Connector:	SO-239 (UHF female)
Dimensions (L x W x H) mm/inches:	200 x 125 x 70 mm / 7,9” х 4,9” х 2,8”
Net weight, kg/lbs.:	≤0,65 kg / 1,5 lbs

Band, MHz:	3,5 - 7 - 14
Power, Watts, ICAS:	200
