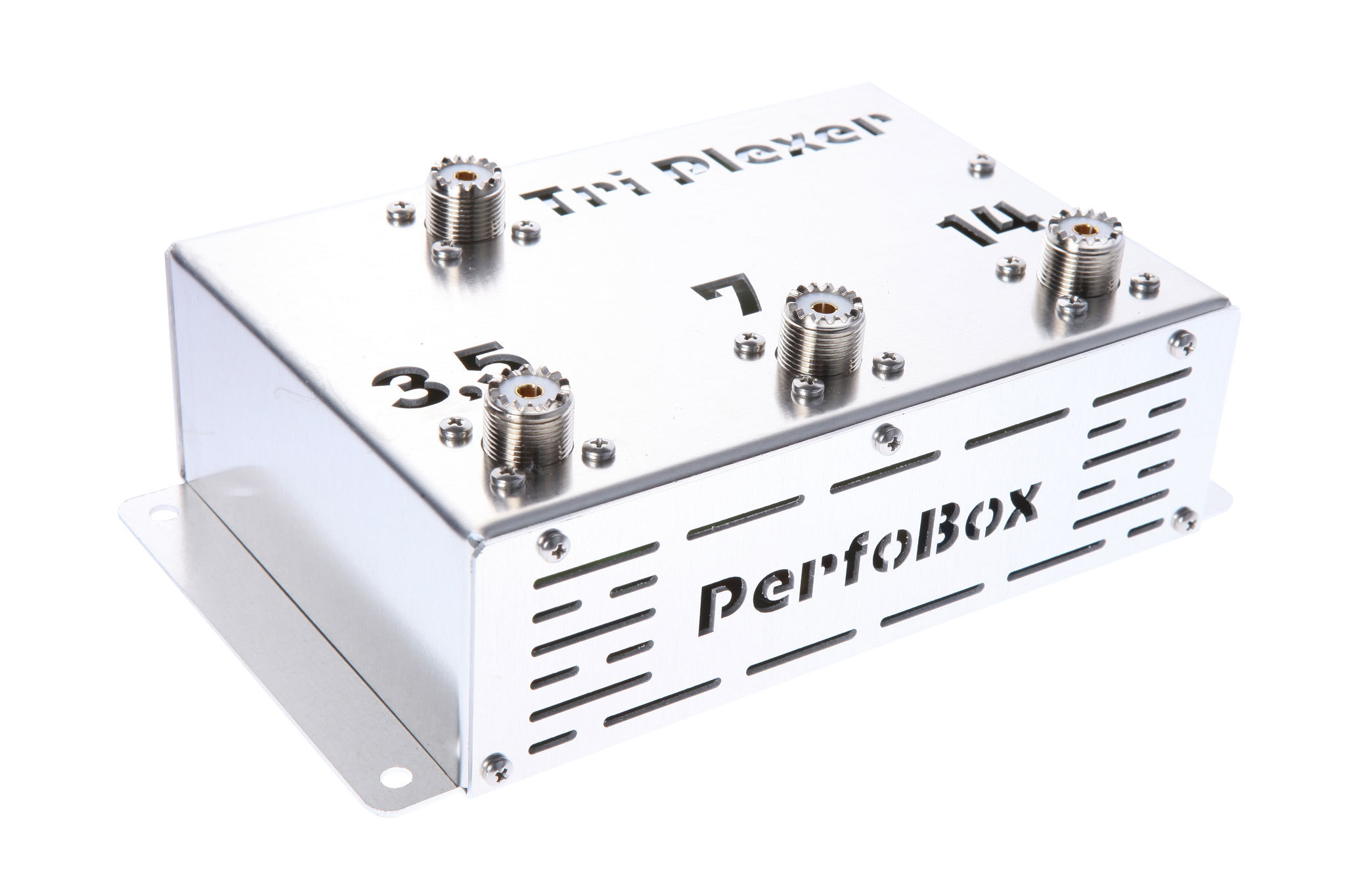

TriPlexer «Perfo Box-500», 500W ICAS, 3.5-7-14 MHz
SKU:
PB-TP500804020
Availability: By Order
- Overview
- Additional Information
Download:
Detailed data sheet of TriPlexer «Perfo Box-500»
Typical specifications:
| Impedance: | 50 Ohm |
| Maximum ICAS power per band port: | 500 W |
| Maximum ICAS power at antenna port: | 1000 W |
| VSWR: | ≤1,25 : 1 |
| Connector: | SO-239 (UHF female) |
| Dimensions (L x W x H) mm/inches: | 270 x 155 x 75 mm / 10,6” х 6,1” х 2,0” |
| Net weight, kg/lbs.: | ≤0,95 kg / 2,1 lbs |
| Band, MHz: | 3,5 - 7 - 14 |
| Power, Watts, ICAS: | 500 |
