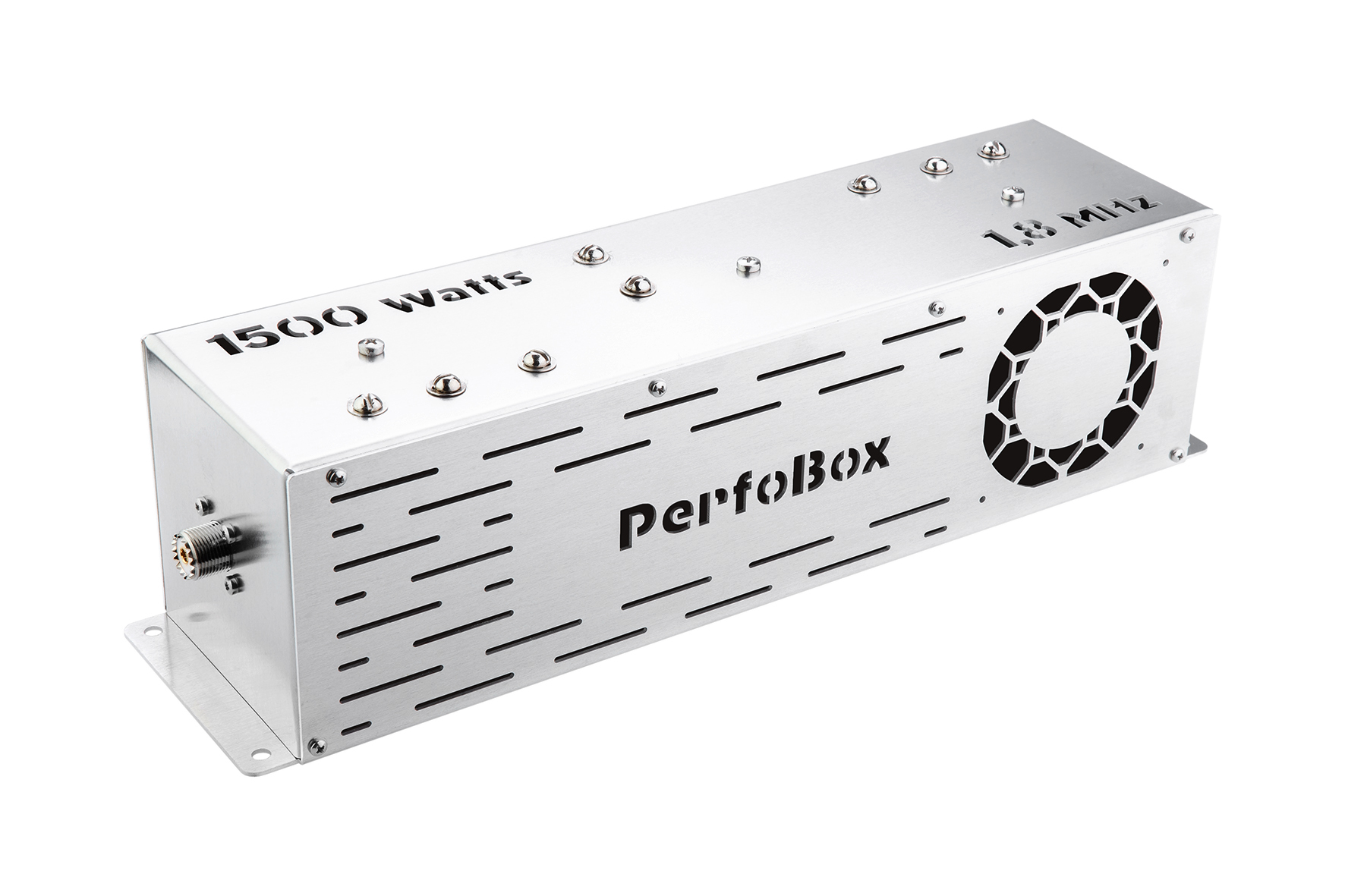

Detailed data sheet of «Perfo Box-1500» filter series
Typical specifications:
Impedance: | 50 Ohm |
Power rating: | 1500W |
Insertion loss: | ≤0,5dB |
Return loss: | ≥20dB |
VSWR: | ≤1,2:1 |
Connector: | SO-239 |
Dimensions (L x W x H) mm/inches: | 450 x 150 x 134 mm / 17,7” х 5,9” х 5,0” |
Net weight, kg/lbs.: | ≤1,9 kg / 4,2 lbs |
Band, MHz: | 1,8 |
Power, Watts, ICAS: | 1500 |
