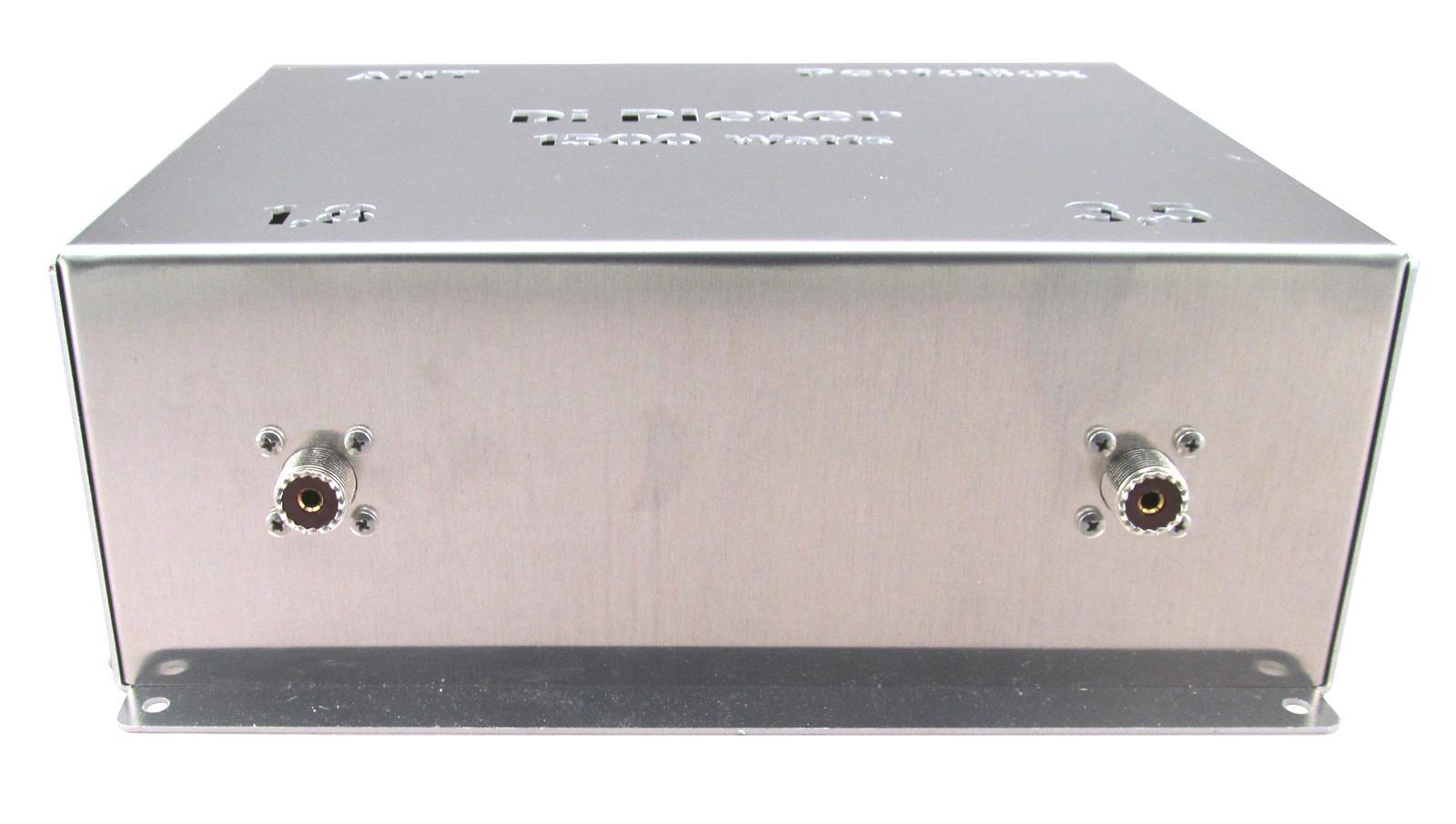

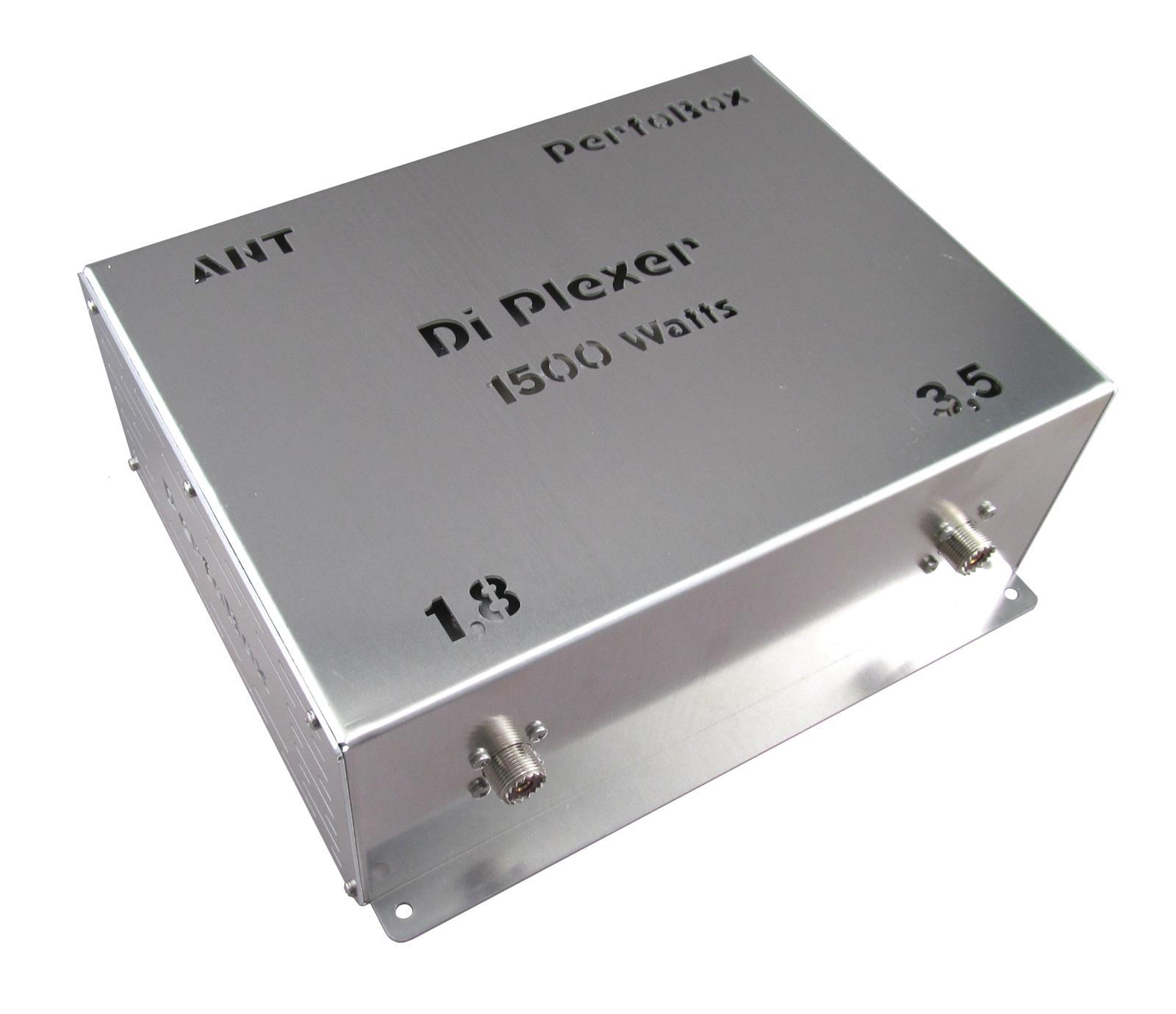

DiPlexer «Perfo Box-1500», 1500W ICAS, 1.8 MHz / 3.5 MHz

SKU: PB-DP1500-1.8/3.5
Availability: In Stock
290 Eur
add to compare Compare
  • Overview
  • Additional Information

Download:



Datasheet, DiPlexer "Perfo Box-1500", 1.8/3.5



Application Note AN_MP-01  “Using High Performance Multiplexers to improve your HF station Capability”

Typical specifications:

Impedance:        50 Ohm
Maximum ICAS power per band port: 1500 W
Maximum ICAS power at antenna port: 3000 W
VSWR:    typical ≤1: 1,25
Cooling fans:  12VDC, 2200RPM, 29.9CFM
Size:  275x260x105 mm / 11”х10”х4”
Net weight (1 pcs., option fans incl.):  ≤2,2 kg / 5,0 lbs
Band, MHz: 1,8 / 3,5
Power, Watts, ICAS: 1500
