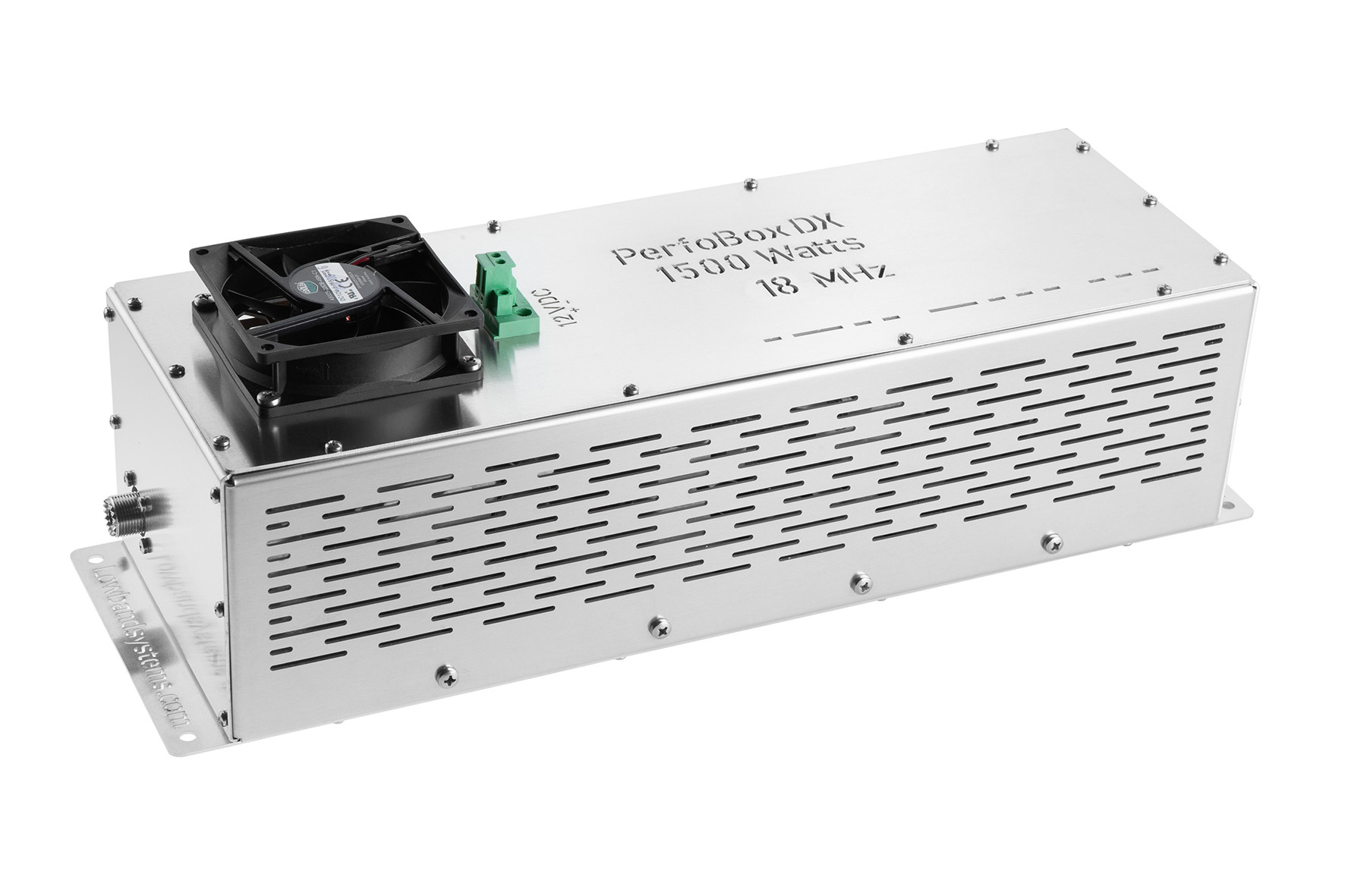

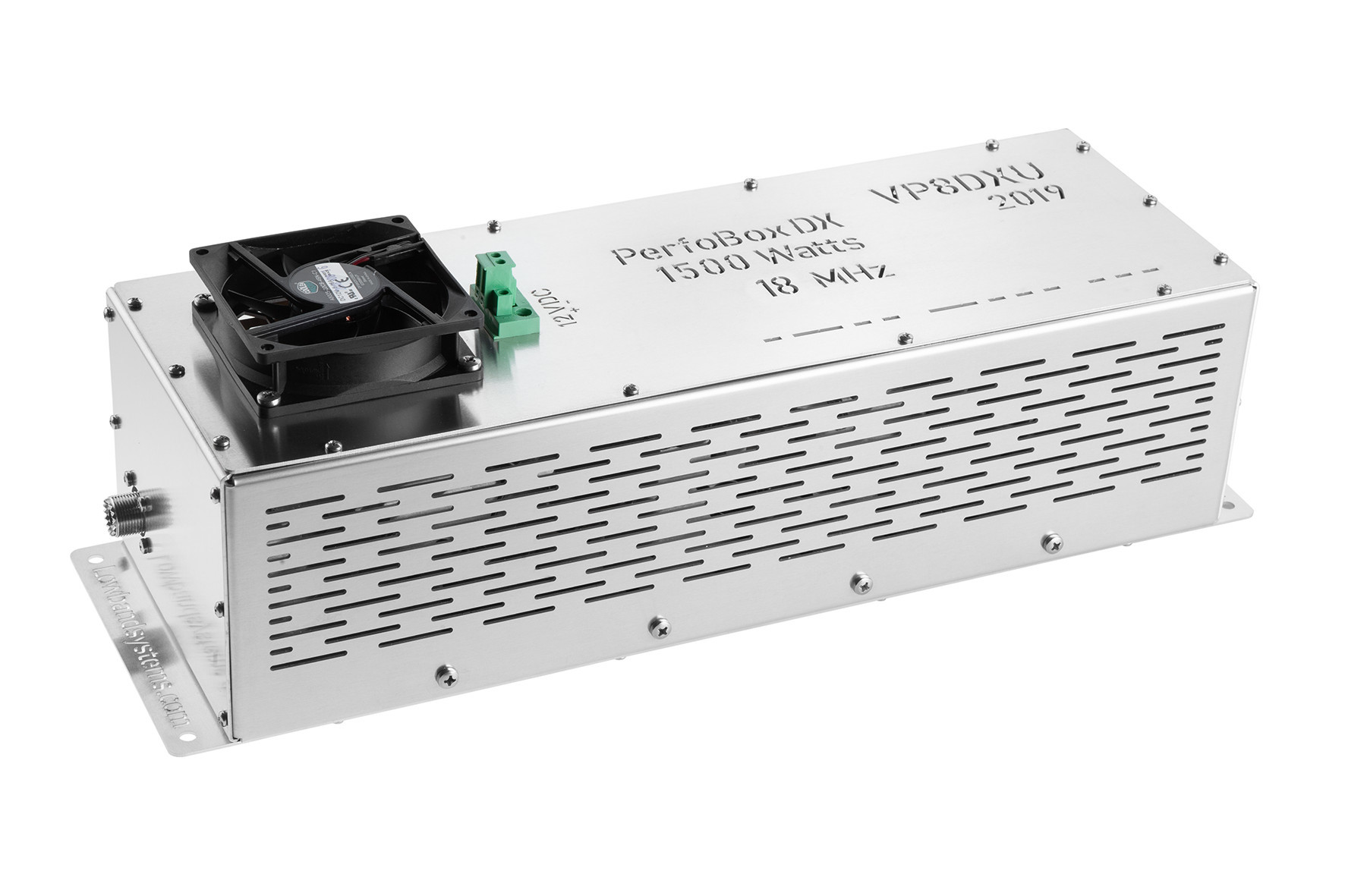

Band Pass Filter «Perfo Box-1500DX II», 1500W ICAS, 18 MHz

SKU: PB-F1500DX-18-F1
Availability: In Stock
350 Eur
add to compare Compare
  • Overview
  • Additional Information

Download:



Detailed data sheet of «Perfo Box-1500DX» filter series

Typical specifications:

Impedance:        50 Ohm
Maximum ICAS power: 1500 W
Losses in the pass band: typical ≤0,75 dB
VSWR:    typical ≤1: 1,15
Rejection on band DOWN:  typical ≥ 80 dB
Rejection on band UP: typical ≥ 75 dB
Cooling fans (option):  12VDC, 2200RPM, 29.9CFM
Size:  450x150x134 mm / 18” х 6” х 5”
Net weight (2 pcs., option fans incl.):  ≤2,3 kg / 5,5 lbs





Band, MHz: 18
Power, Watts, ICAS: 1500
