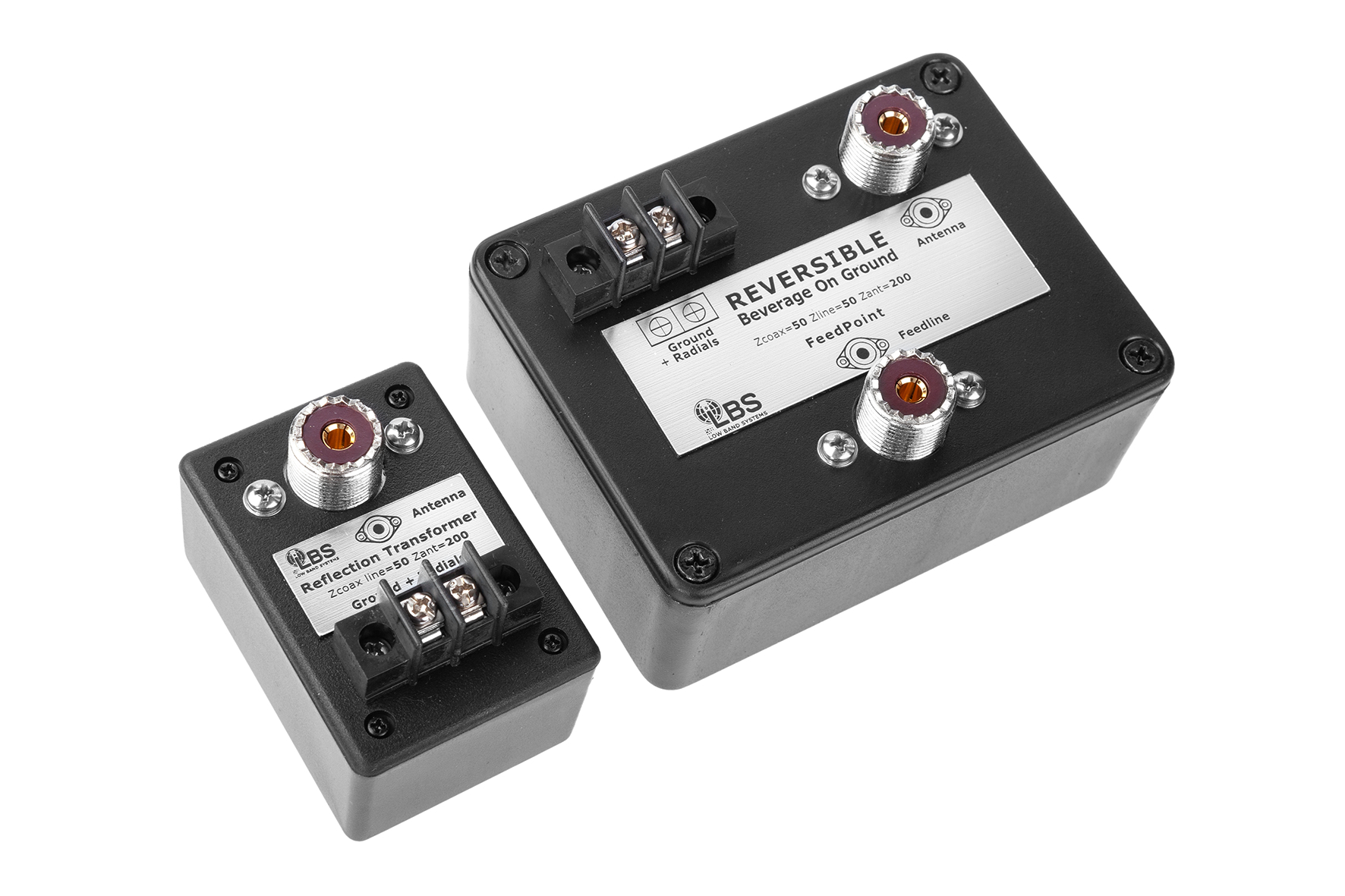

Reversible Beverage on the ground (RBOG) antenna matching set, requires DC coax inject to switch direction, 50 Ohm coax cable used as antennas transmition line on the ground, 50 Ohm feedline, UHF connector

SKU: RBOG2-50-50-200
Availability: By Order
45 Eur
add to compare Compare
  • Overview

50 Ohm coax as transmission (antenna) line, two-direction beverage feedpoint transformer and termination transformer set, relay switch to reverse direction.

  • Broad operating range, 0.5 to 30 MHz
  • Fully isolated grounds prevent common-made noise
  • Directional Switching Voltage: nominal 12 Vdc,  feedline injected
  • Directional Switching Current: less than 30 mA
  • Transmition line impedance: 50 ohm
  • Antenna line connector: UHF
  • Antenna impedance over the goriund: 200 ohm
  • Feedline impedance: 50 ohm
  • Feedline connectors: UHF
