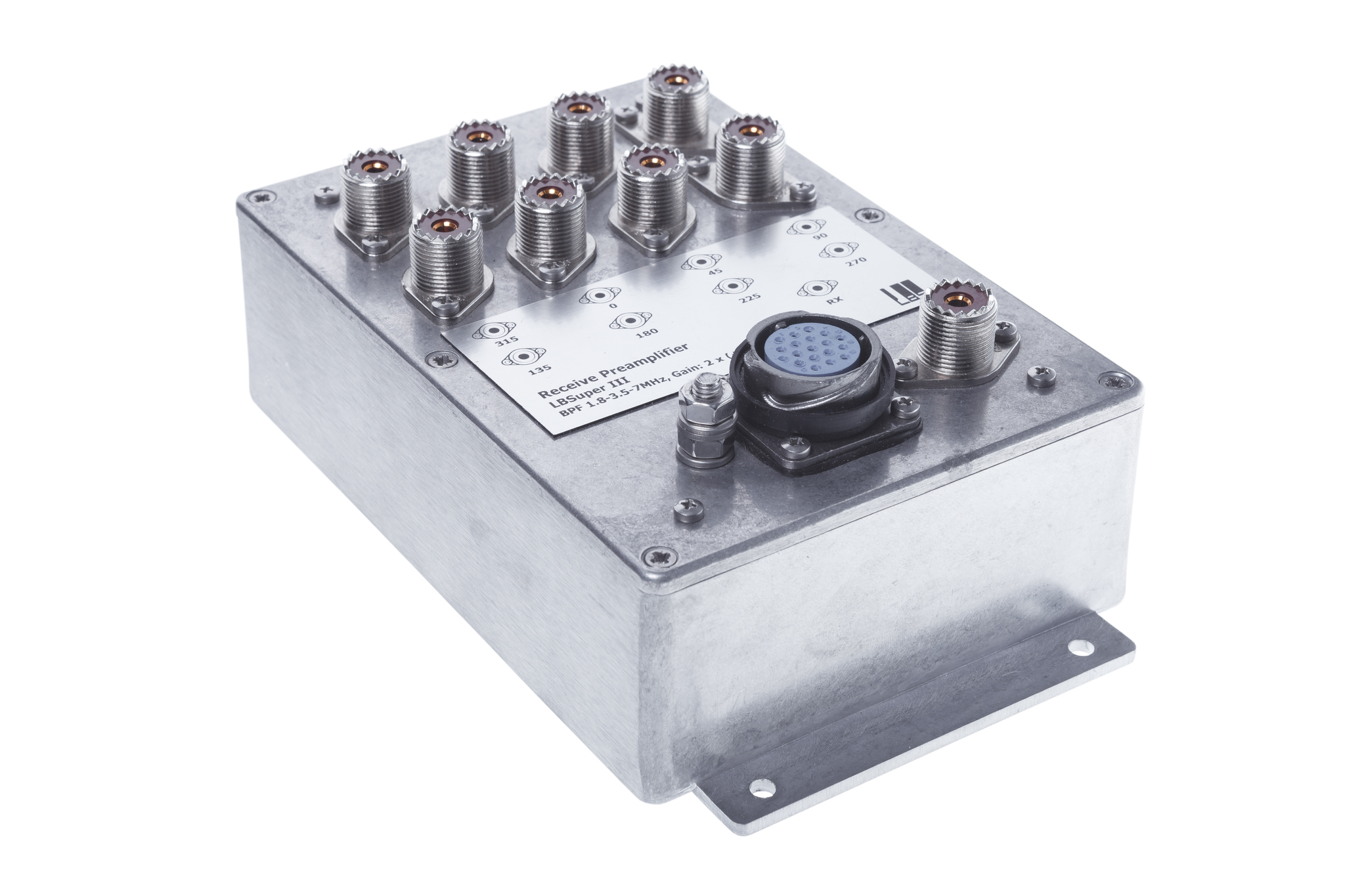

Outdoor Remote Relay Switch, 8 INPUTS, 1 OUTPUT, with HPF and 18db. preamplifier, "RS8LBAHPF"

SKU: RS8LBAHPF50

Availability: By Order

Overview

8 inputs;
50 or 75 ohms design;
BCD control or 1 of 8;
7 pole Chebyshev high pass filter with cutoff at 1,7 Mhz;
Gain: fixed in the range 12÷20db, please specify

NF ≤ 3.5db

OIP ≥ 25db
UHF or F connector
