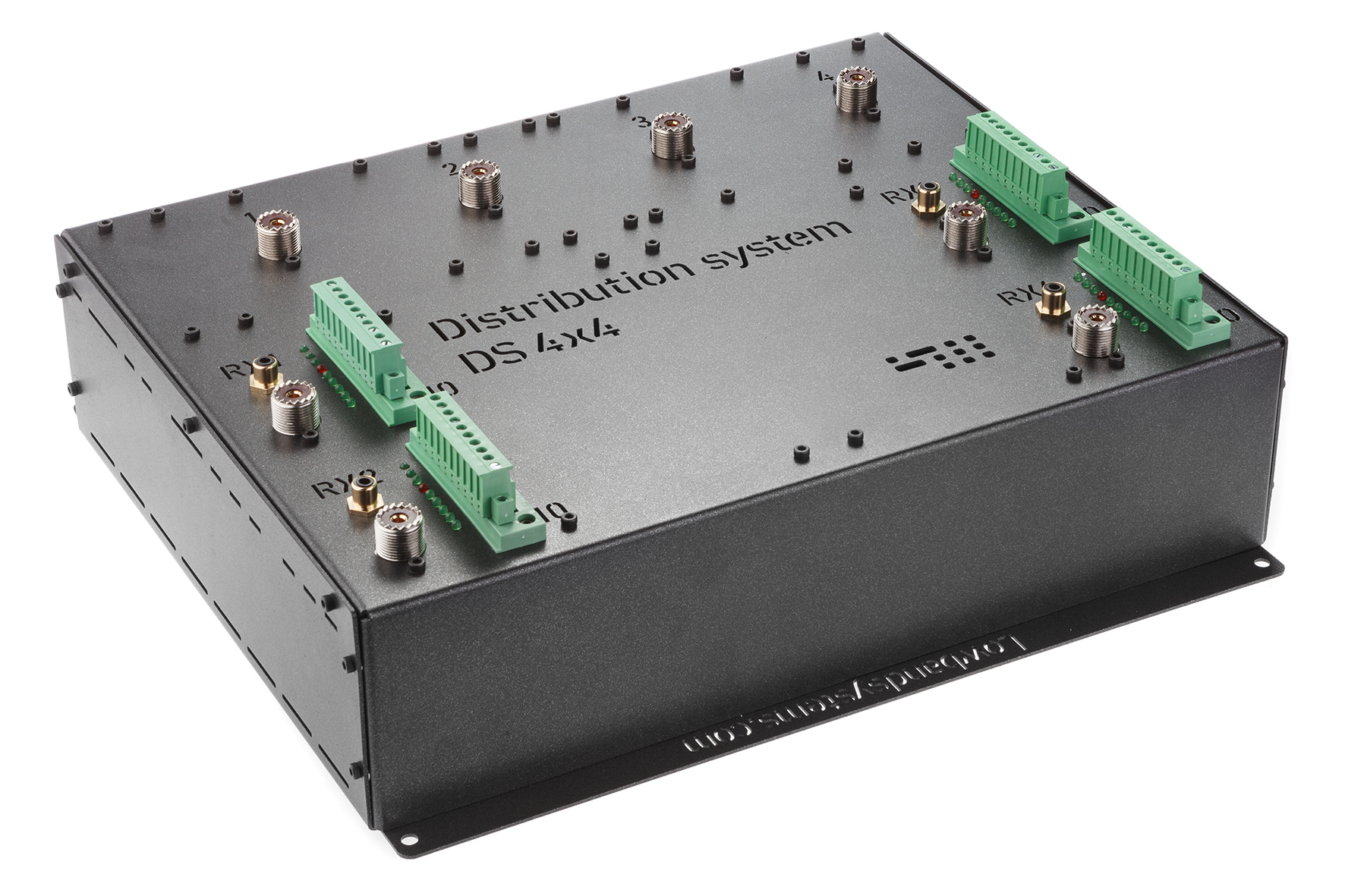

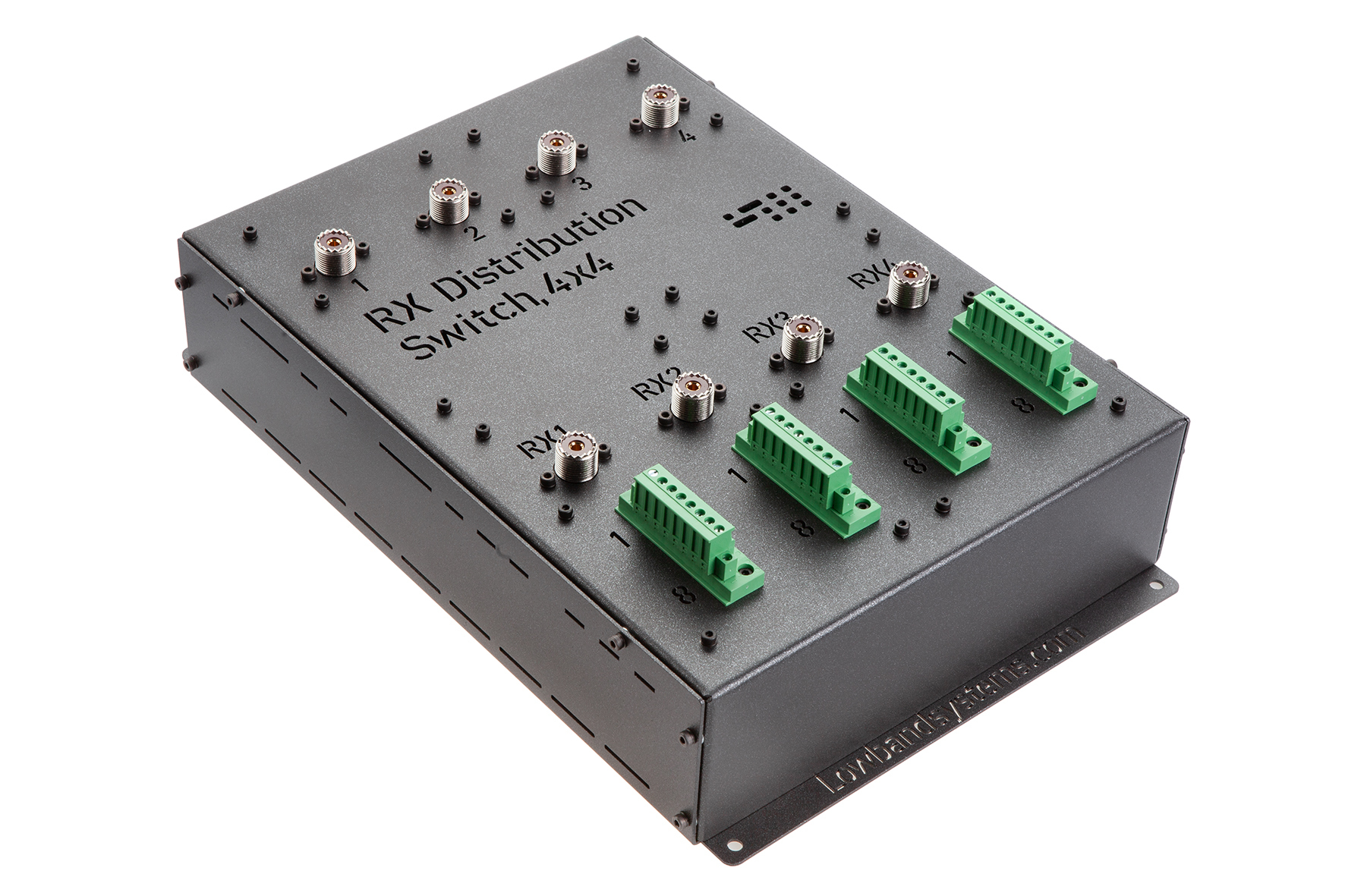

"Distribution switch, 4x4", 50 Ohm, 3 x BandPassFilters (160 / 80 / 40m), 2 x RX PreAmplifier +11db Gain, UHF female, Combo

Receive only antenna, distribution switch package for Multi-Single, Multi-Multi station:

• 4 antenna  inputs, not selected ones terminated to 50 ohms;
• 4 totaly independent outputs to 4 RX: any antenna, on any band, to any receiver;
• BandPass Filters: 160 & 80 & 40, separate for each receiver, bypassed;
• Two RX PreAmplifiers (2x11db Gain, NF ≤ 3.5db), separate for each receiver, bypassed;
• 50 Ohm design, UHF RF connectors;

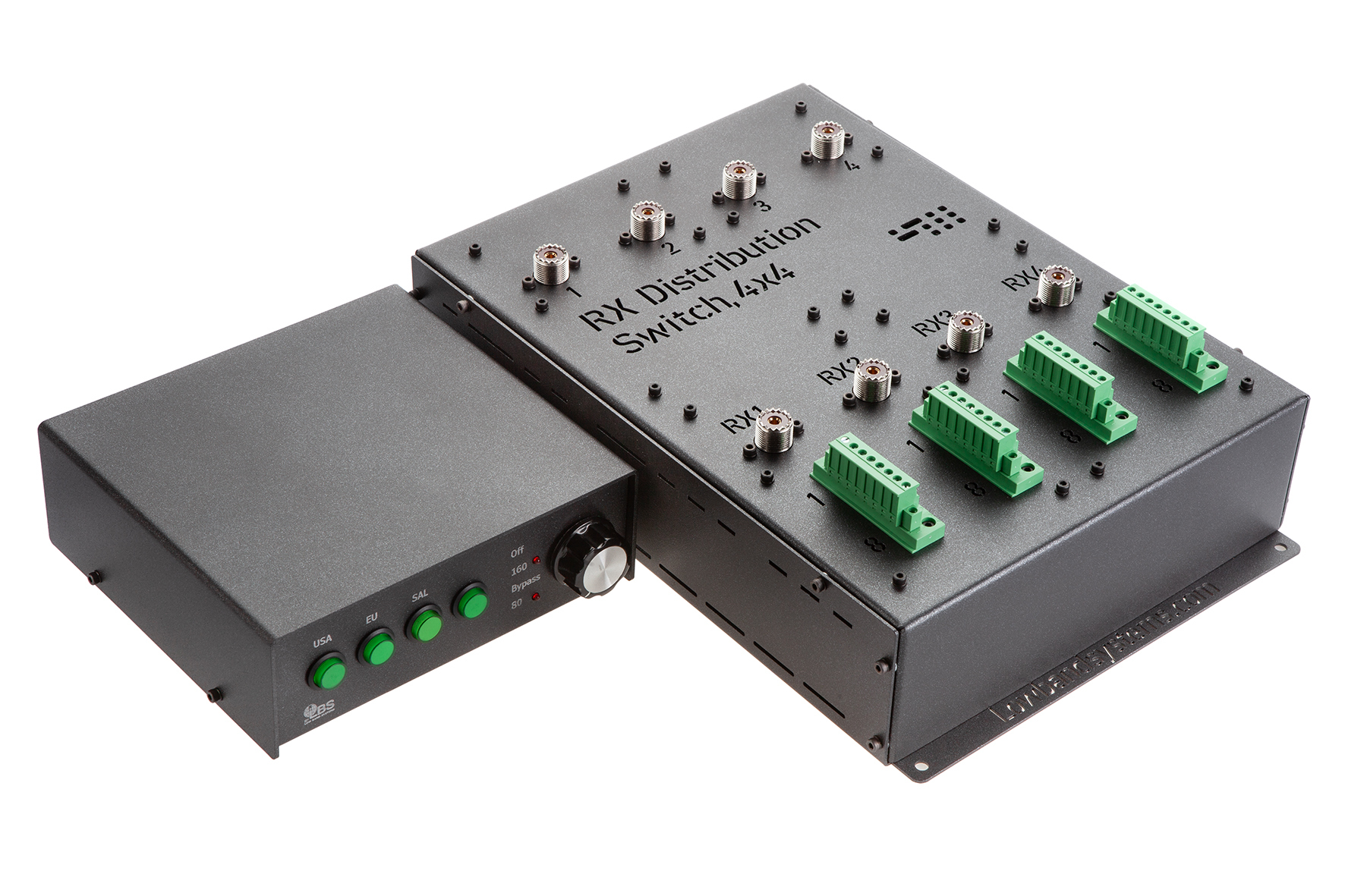

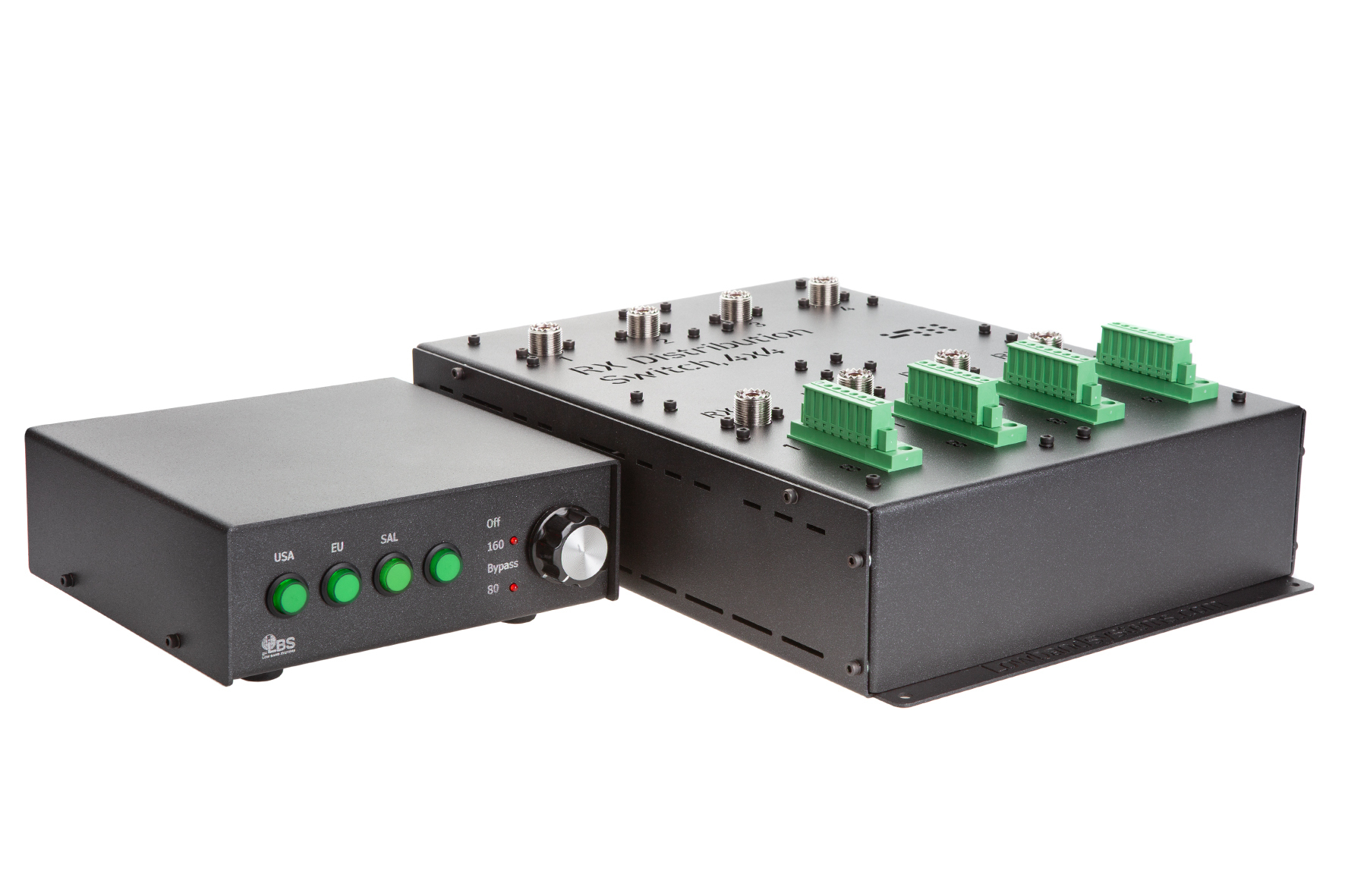

• 1of4 control logic for antenna selection by each control console;
• 1of3 control logic for bandpass filter selecction by each control console;
• 1 or 2 or Both control logic for RX preamps selecction by each control console;
• 4 x Phoenix pluggable Terminal Blocks 10 Pos 5.08mm pitch
