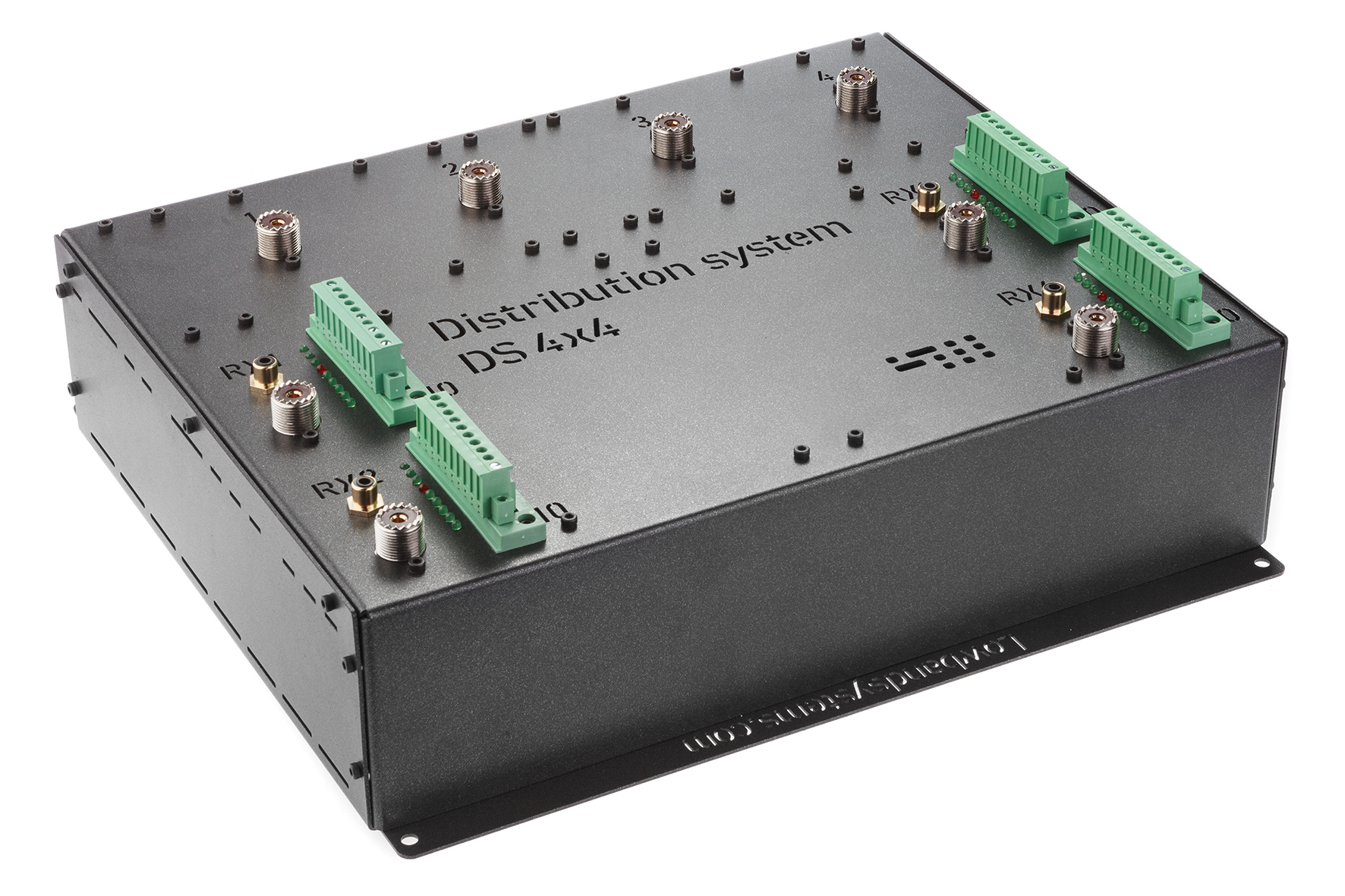

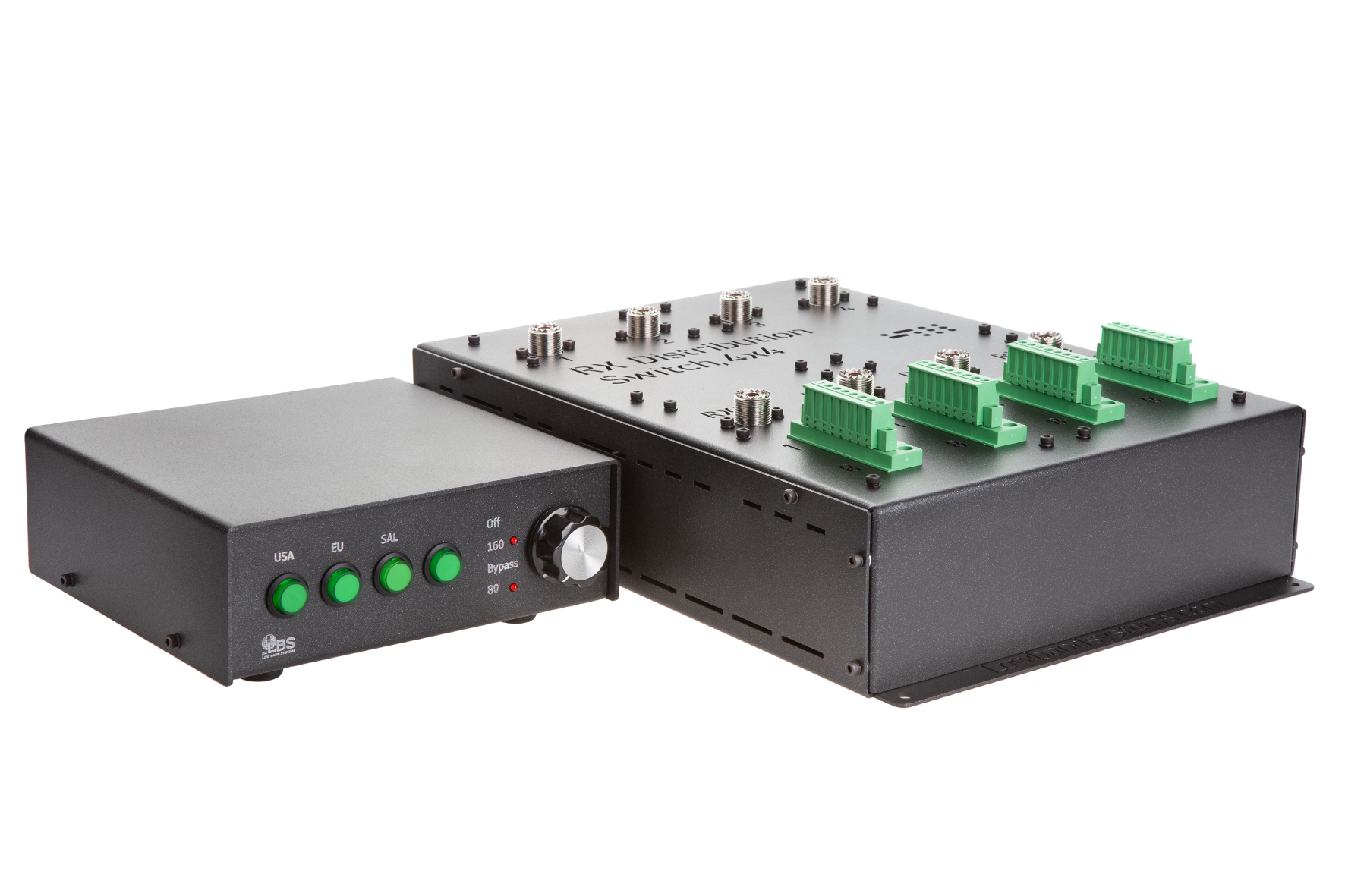

"Distribution switch, 4x4", 50 Ohm, 2 x BandPassFilters (160 / 80m), RX PreAmplifier +12db Gain, UHF female, Combo

SKU: DS4x4-2B1A-50
Availability: By Order
539 Eur
add to compare Compare
  • Overview

Receive only antenna, distribution switch package for Multi-Single, Multi-Multi station:


  • 4 antenna  inputs, not selected ones terminated to 50 ohms;
  • 4 totaly independent outputs to 4 RX: any antenna, on any band, to any receiver;
  • BandPass Filters: 160 & 80, separate for each receiver, bypassed;
  • RX PreAmplifier (+12db Gain, NF ≤ 3.5db), separate for each receiver, bypassed;
  • 50 Ohm design, UHF RF connectors;
  • 1of4 control logic for antenna selection by each control console;
  • 1of2 control logic for bandpass filter selecction by each control console;
  • 4 x Phoenix pluggable Terminal Blocks 8 Pos 5.08mm pitch
