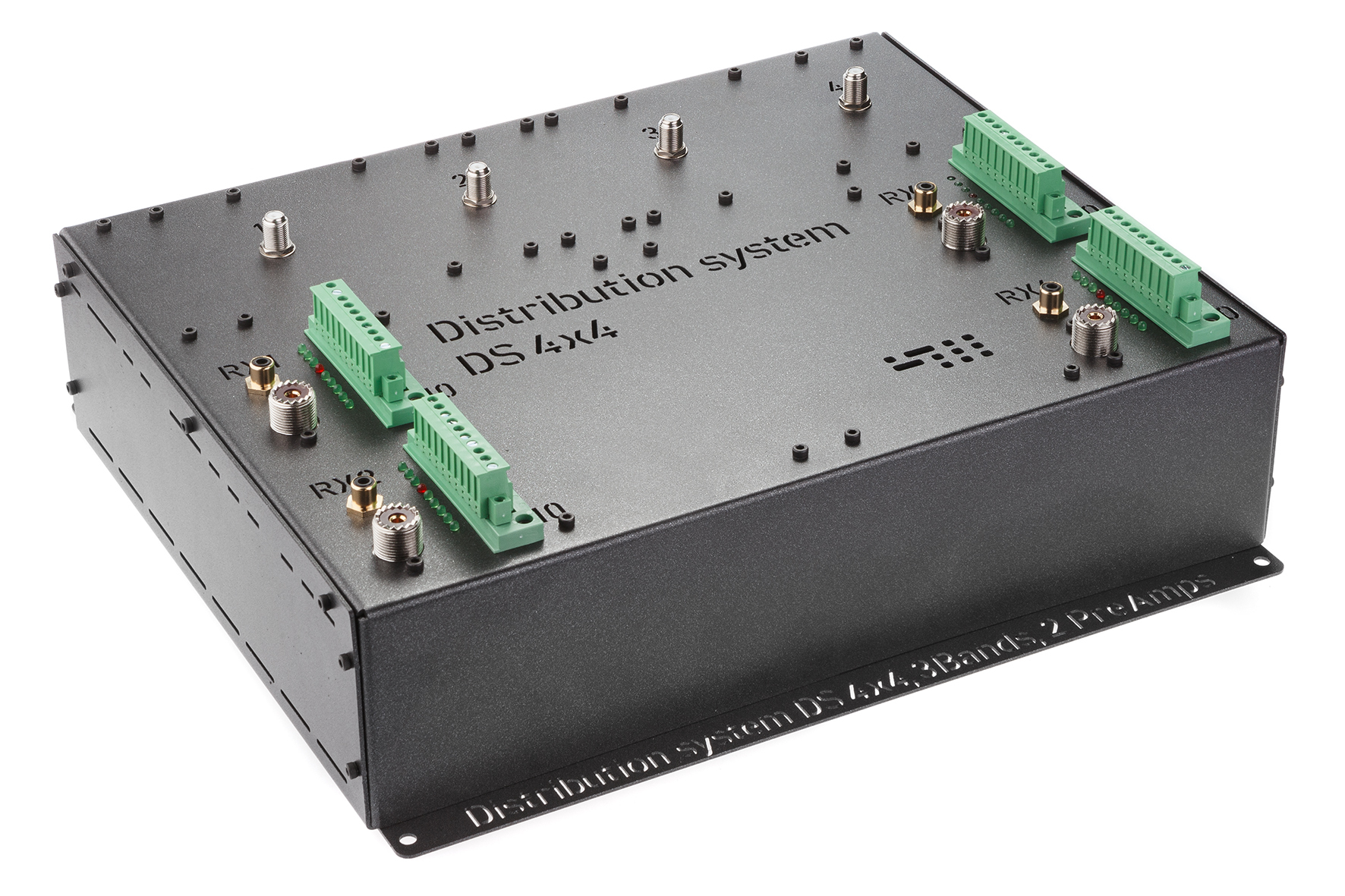

"Distribution switch, 4x4", 75 Ohm, 3 x BandPassFilters (160 / 80 / 40m), 2 x RX PreAmplifier +11db Gain, F female, Combo

SKU: DS4x4-3B2A-75
Availability: By Order
599 Eur
add to compare Compare
  • Overview

Receive only antenna, distribution switch package for Multi-Single, Multi-Multi station:


  • 4 antenna  inputs, not selected ones terminated to 75 ohms;
  • 4 totaly independent outputs to 4 RX: any antenna, on any band, to any receiver;
    • 2 connectors on each output, SO-239 and RCA or F
  • BandPass Filters: 160 & 80 & 40, separate for each receiver, bypassed;
  • Two RX PreAmplifiers (2x11db Gain, NF ≤ 3.5db), separate for each receiver, bypassed;
  • 75 Ohm design, F RF connectors;
  • 1of4 control logic for antenna selection by each control console;
  • 1of3 control logic for bandpass filter selecction by each control console;
  • 1 or 2 or Both control logic for RX preamps selecction by each control console;
  • 4 x Phoenix pluggable Terminal Blocks 10 Pos 5.08mm pitch, can be replaced by custom orders
