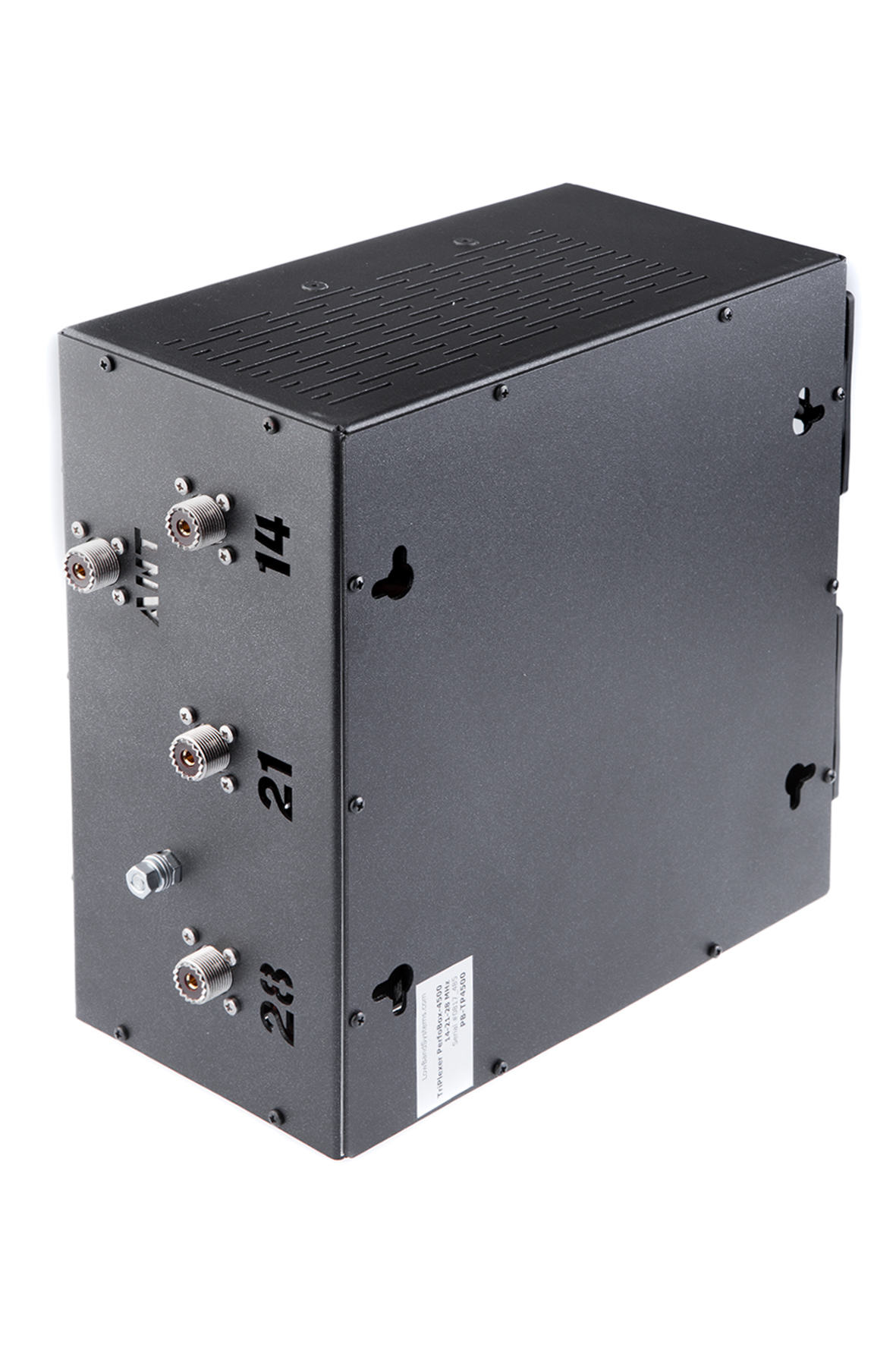

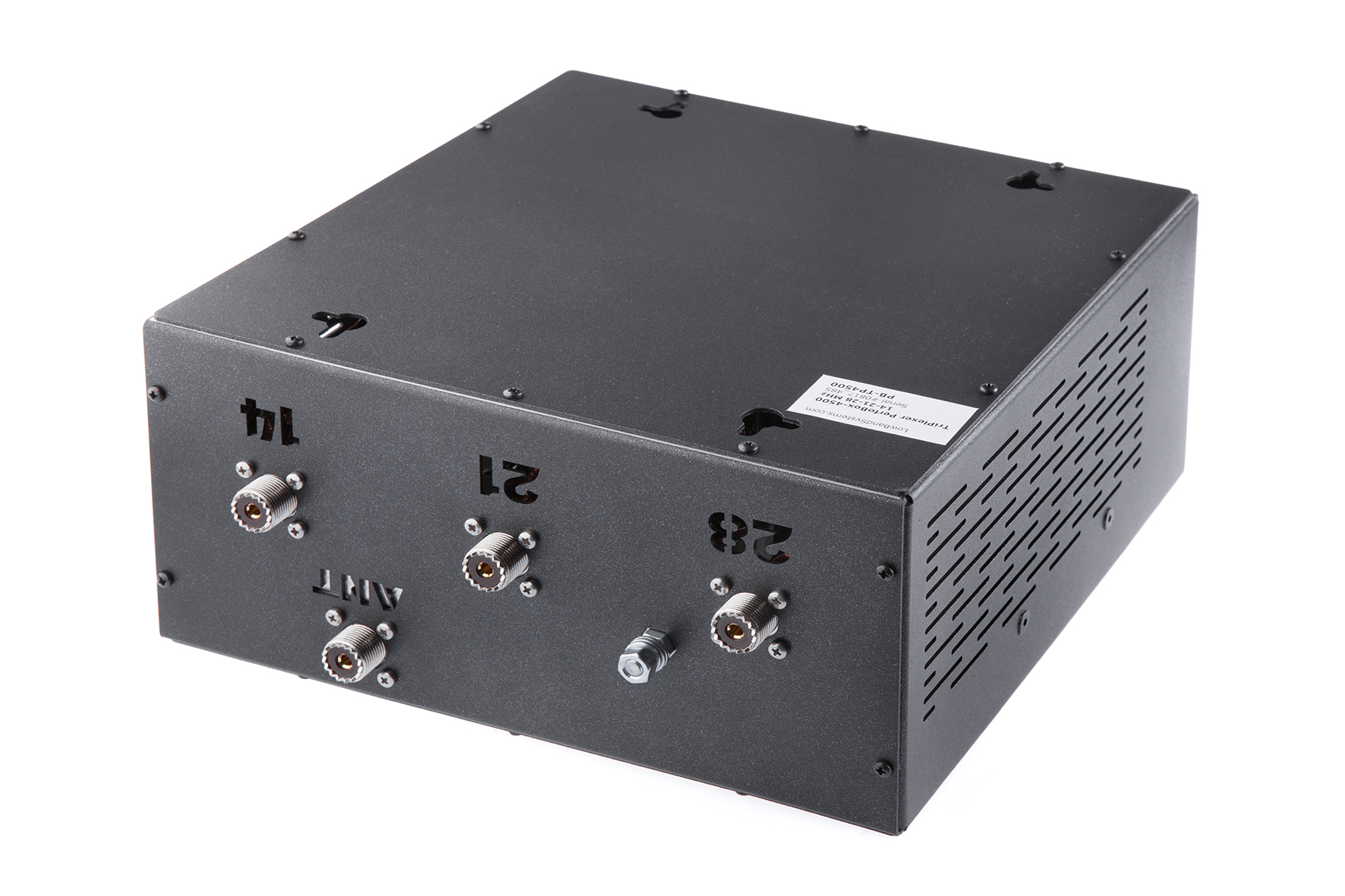

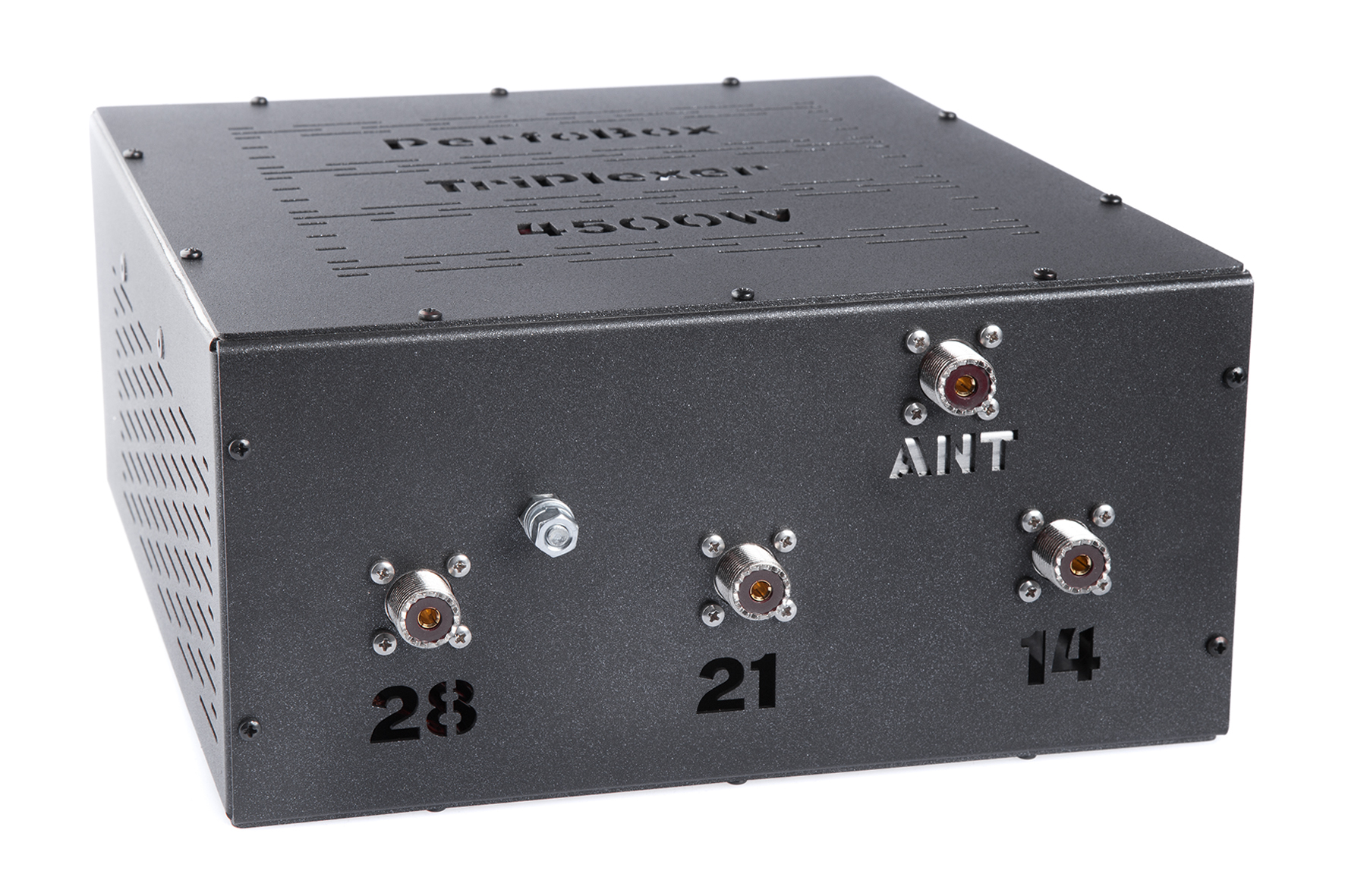

TriPlexer «Perfo Box-4500», 4500W ICAS, 14-21-28 MHz

SKU: PB-TP4500
Availability: In Stock
550 Eur
add to compare Compare
  • Overview
  • Additional Information

Download:



Detailed data sheet of TriPlexer «Perfo Box-4500»



Application Note AN_MP-01  “Using High Performance Multiplexers to improve your HF station Capability”

Typical specifications:

Impedance:        50 Ohm
Maximum ICAS power per band port: 4500 W
Maximum ICAS power at antenna port: 9000 W
VSWR:    typical ≤1: 1,25
Cooling fans:  12VDC, 2200RPM, 29.9CFM
Size:  285x255x125 mm / 11,2”х10,0”х4,2”
Net weight:  ≤2,8 kg / 6,2 lbs
Band, MHz: 14 - 21 - 28
Power, Watts, ICAS: 4500
