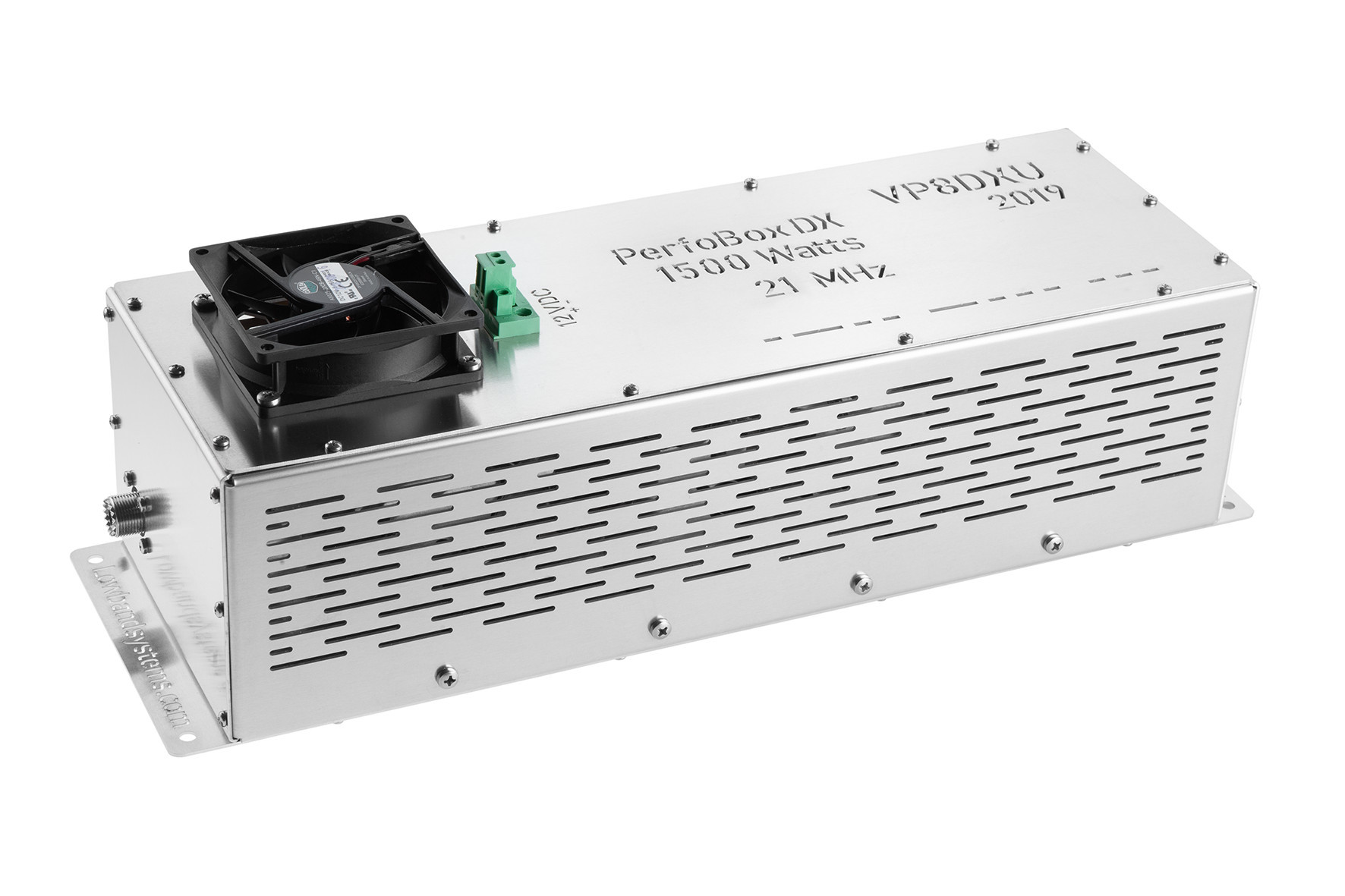

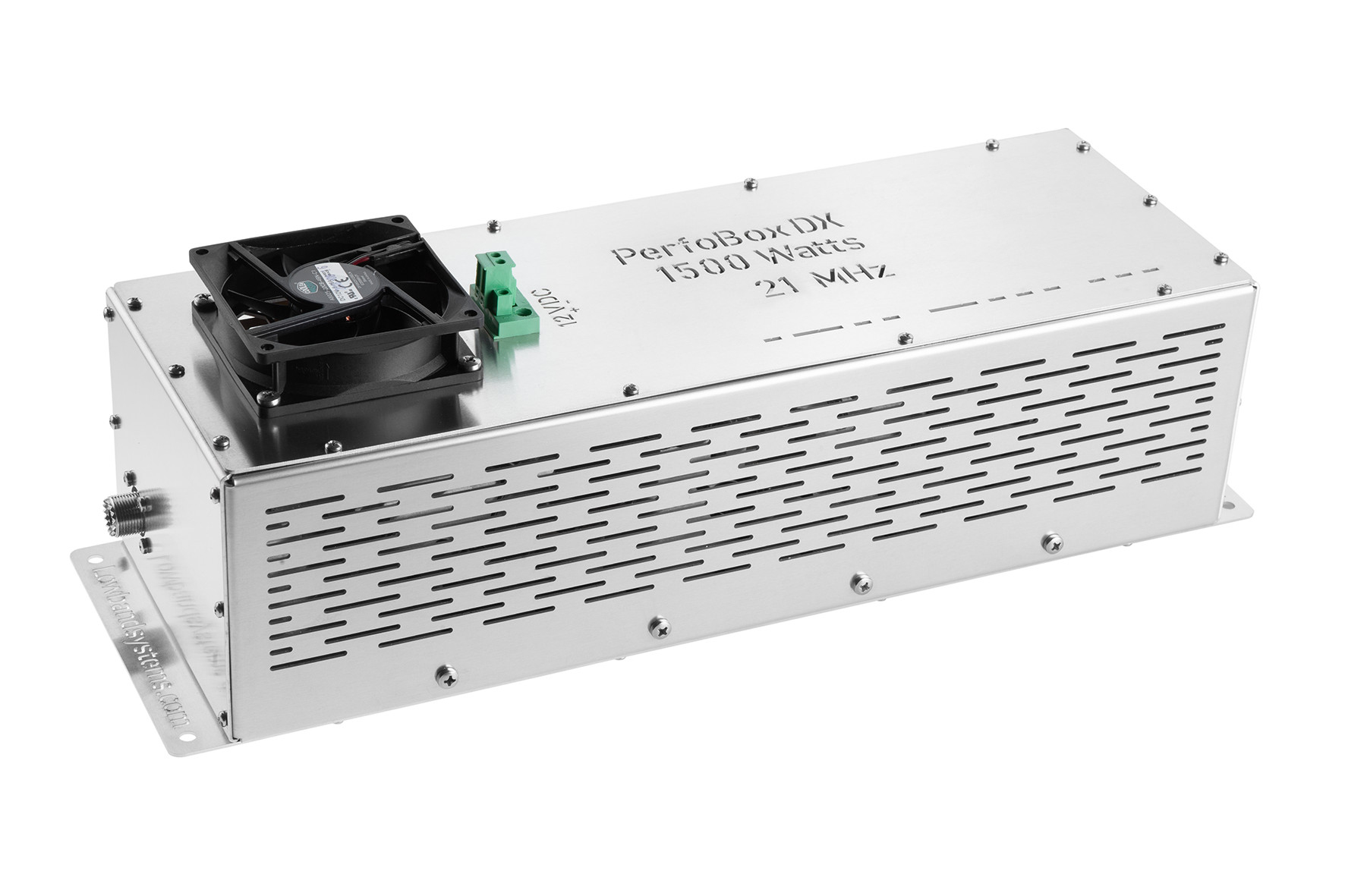

Band Pass Filter «Perfo Box-1500DX II», 1500W ICAS, 21 MHz
SKU:
PB-F1500DX-21-F1
Availability: In Stock
- Overview
- Additional Information
Download:
Detailed data sheet of «Perfo Box-1500DX» filter series
Typical specifications:
| Impedance: | 50 Ohm |
| Maximum ICAS power: | 1500 W |
| Losses in the pass band: | typical ≤0,5 dB |
| VSWR: | typical ≤1: 1,15 |
| Rejection on band DOWN: | typical ≥ 55 dB |
| Rejection on band UP: | typical ≥ 75 dB |
| Rejection on F/3 band: | typical ≥ 60 dB |
| Cooling fans (option): | 12VDC, 2200RPM, 29.9CFM |
| Size: | 450x150x134 mm / 18” х 6” х 5” |
| Net weight (2 pcs., option fans incl.): | ≤2,4 kg / 5,5 lbs |
| Band, MHz: | 21 |
| Power, Watts, ICAS: | 1500 |
