Matching Unit, "V160-30"
SKU:
V160-30
Availability: By Order
- Overview
- Additional Information
Matching unit manual (PDF, 1Mb)

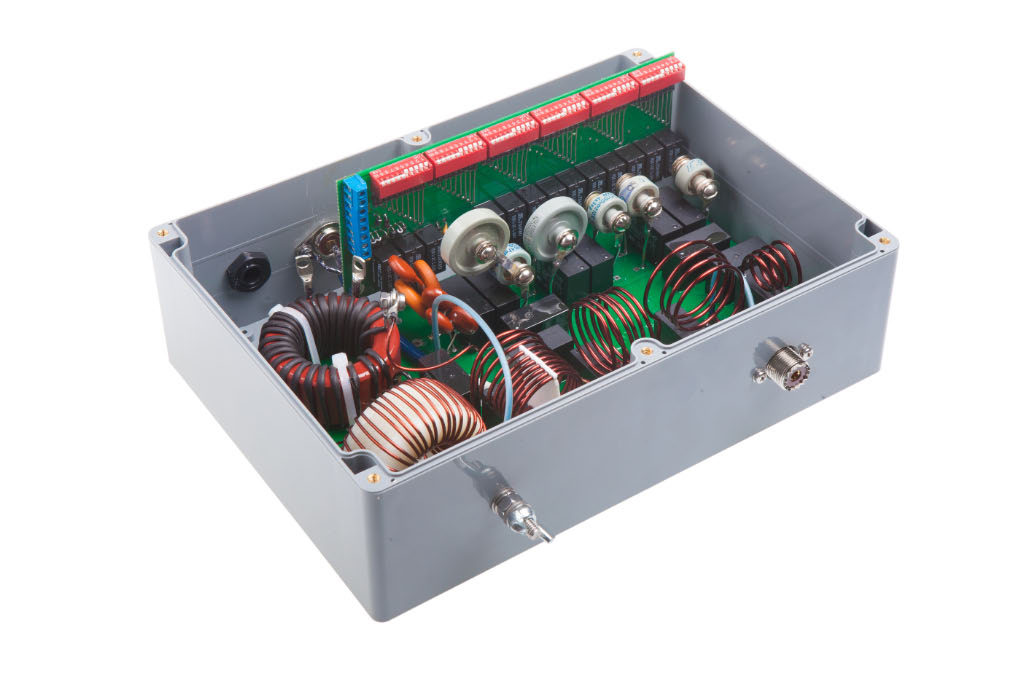

Remote Matching Unit for Vertical antennas, “V160-30”, designed for 55` high verticals with Top Loading. L matching networks on 6 subbands: 160CW - 160SSB - 80CW - 80DX - 40 - 30 (80SSB).
Designed for 17-20 meters high verticals with TopLoading.
Easy tuning, no soldering needed!
6 subbans:
160CW - 160SSB
80CW - 80SSB (+ 80DX instead of 30 meters)
40
30 (or 80DX)
can be easily modified for use on 60 meters
De Tuning Vetrtical antenna to avoid degradation of nearby RX antennas properties using TX Gnd (PTT) signal on TX
| Band, MHz: | 1,830 - 1,890 - 3,530 - 3,65 - 3,795 - 7,1 - 10,150 |
| Power, Watts, ICAS: | 1000 |
| Weight, bruto, kg: | 4 |
| Connector: | SO-239 Sillver-Teflon |
| Coil, VDC: | 24VDC |
| Working temperature:: | -50 +40 |
