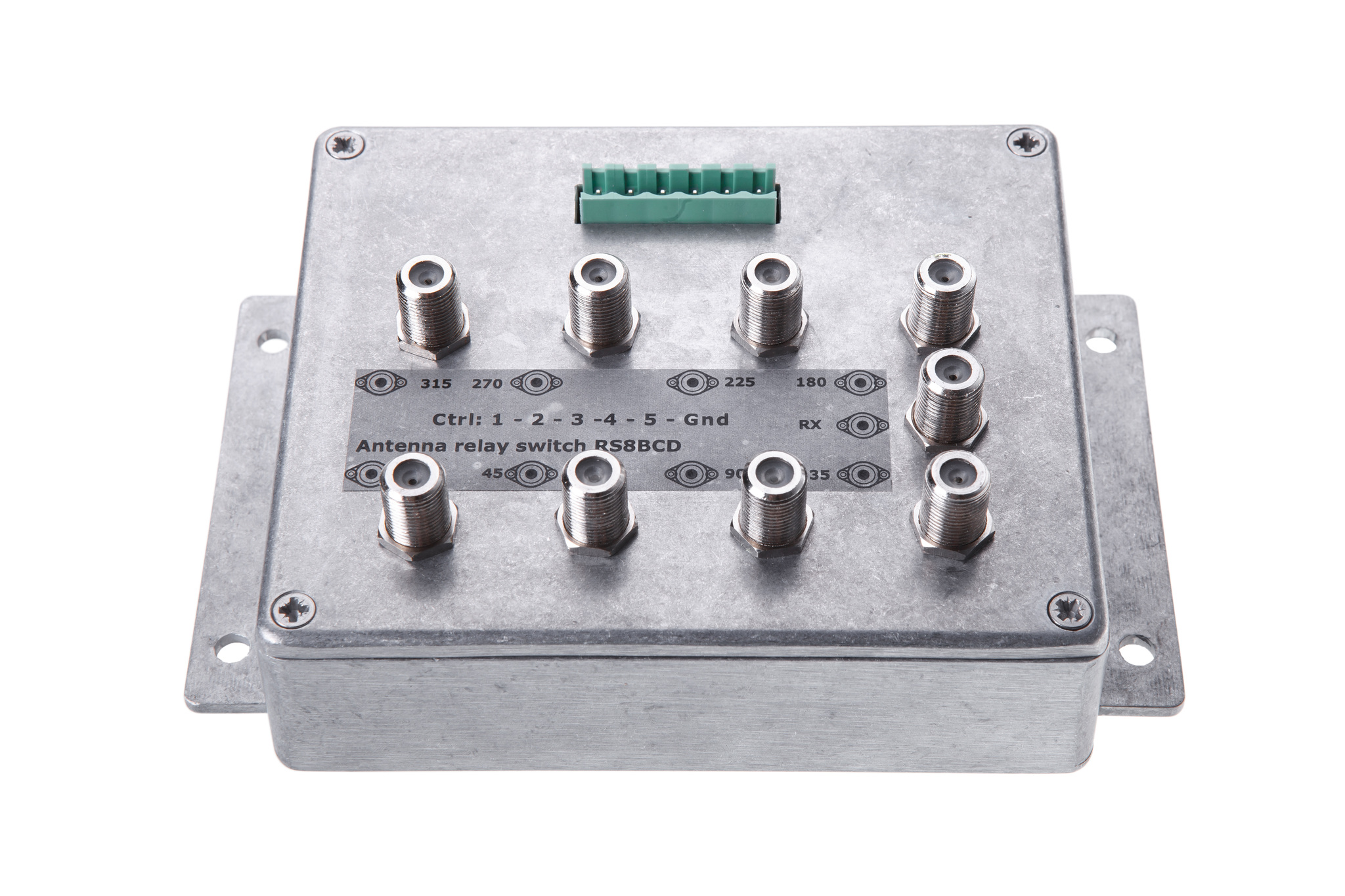

Receive Antenna Switch "RS8BCD", 75 ohm, F connectors

SKU: RS8BCD-75F
Availability: By Order
100 Eur
add to compare Compare
  • Overview

Remote antenna switch specifically designed for low band receive antenna systems



Specifications:

75 OHM impedance coaxial cable one of eight switch
• Remotely Switch One of eight receiving Antennas
• DC inject to selected inputs, protected by polyfuse to save power source
• Remote operation can be switched by activating +13.8 VDC
• Requires BCD code
• 1 of 8 control on demand
• Provides a 1 Watt 75 ohm termination for non-switched inputs
• Greater than 60 dB of on to off isolation from 50 KHz to 10 MHz
• Greater than 60 dB of isolation from 50 KHz to 10 MHz to unused ports
• SWR contribution less than 1.15: 1 from 50 KHz to 10 MHz
• Quality F connectors
• Perfect for Beverage antennas needing non-selected antennas terminated
• High Quality, specaly dsigned telecome relays for a good low current tarnsfer and a long life
• Perfect for switching with CAT5 or CAT6 computer cable
• Available in a version with Preamplifiers
• Compatable with LowBandSystems LBC8ARD control console as well as with DXEngineering CC-8A Deluxe Control Consoles
