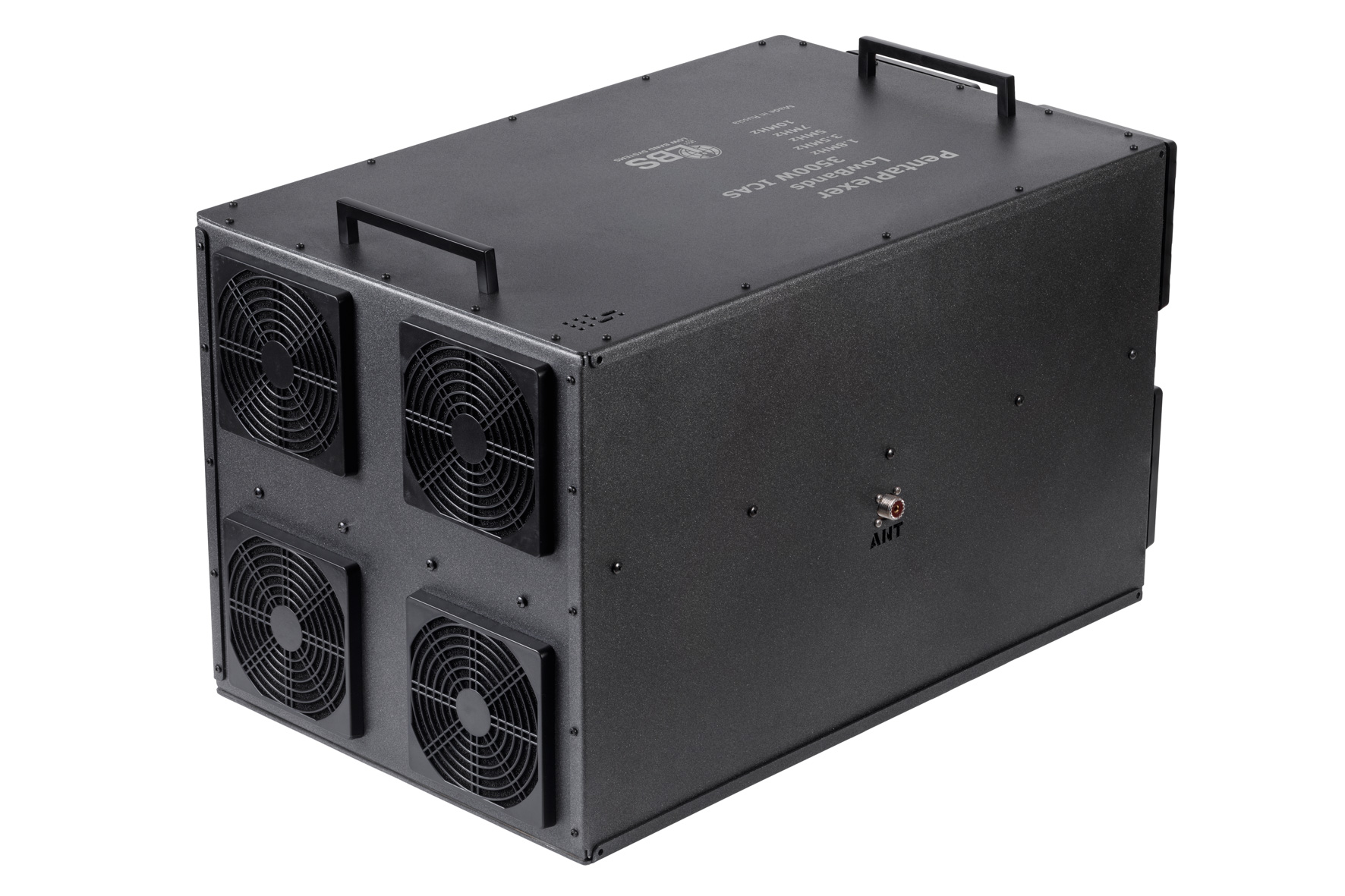

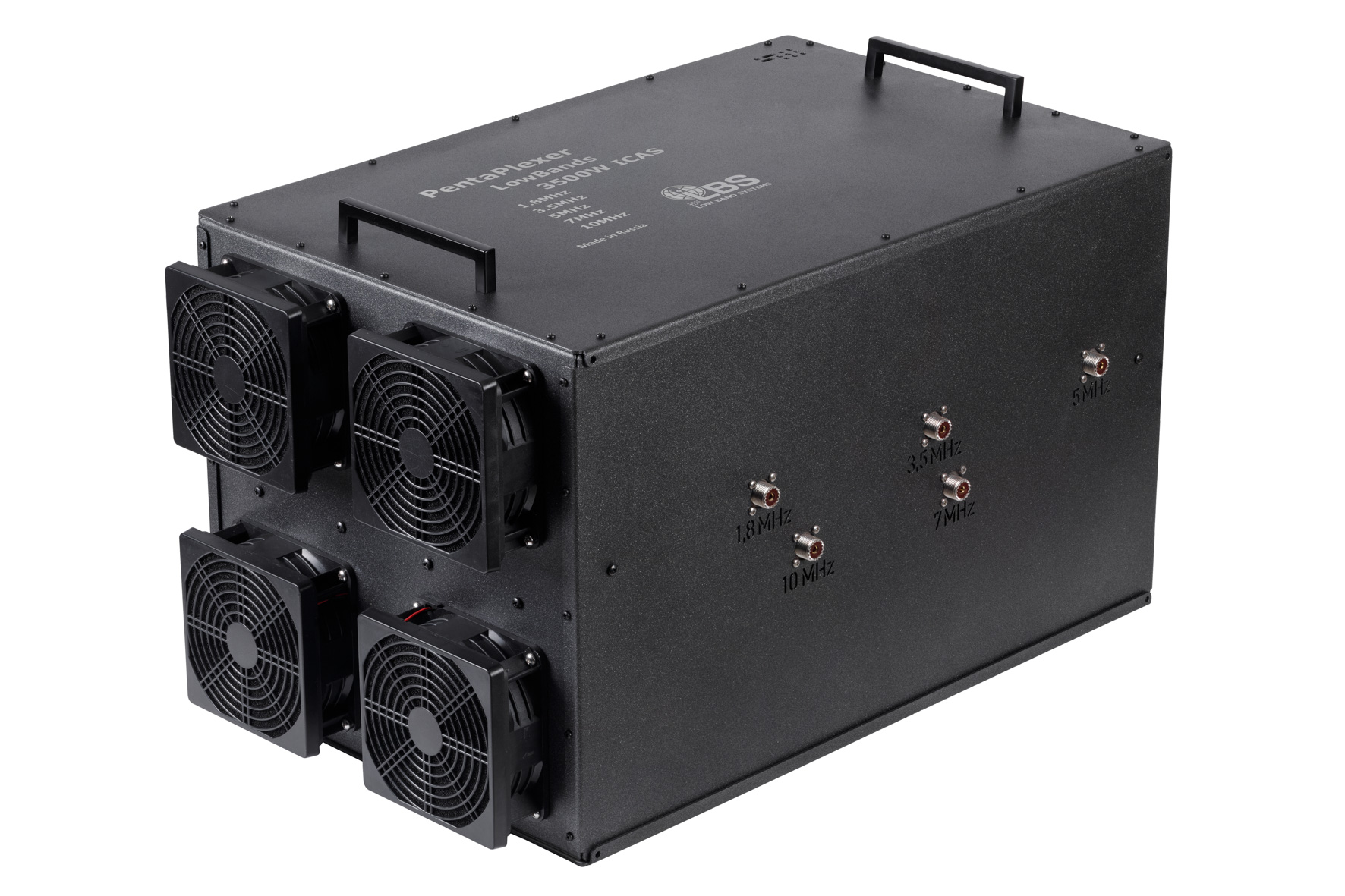

PentaPlexer LowBands «Perfo Box-4500», 3500W ICAS, 1.8-3.5-5-7-10 MHz
SKU:
PLOWP4500
Availability: By Order
- Overview
- Additional Information
Download:
Detailed datasheet available on request.
This multiplexer embodies the legendary LowBandSystems design philosophy – seamless integration of award-winning engineering with unparalleled build quality.
Designed specifically for operation with a multiband antenna covering 1.8 - 3.5 - 5 - 7 - 10MHz bands, it proper signal separation allowing up to five transmitters simultaneous usage.
| Maximum ICAS power per band port: | 3500 W |
| Maximum ICAS power at antenna port: | 9000 W |
| VSWR: | typical ≤1: 1,25 |

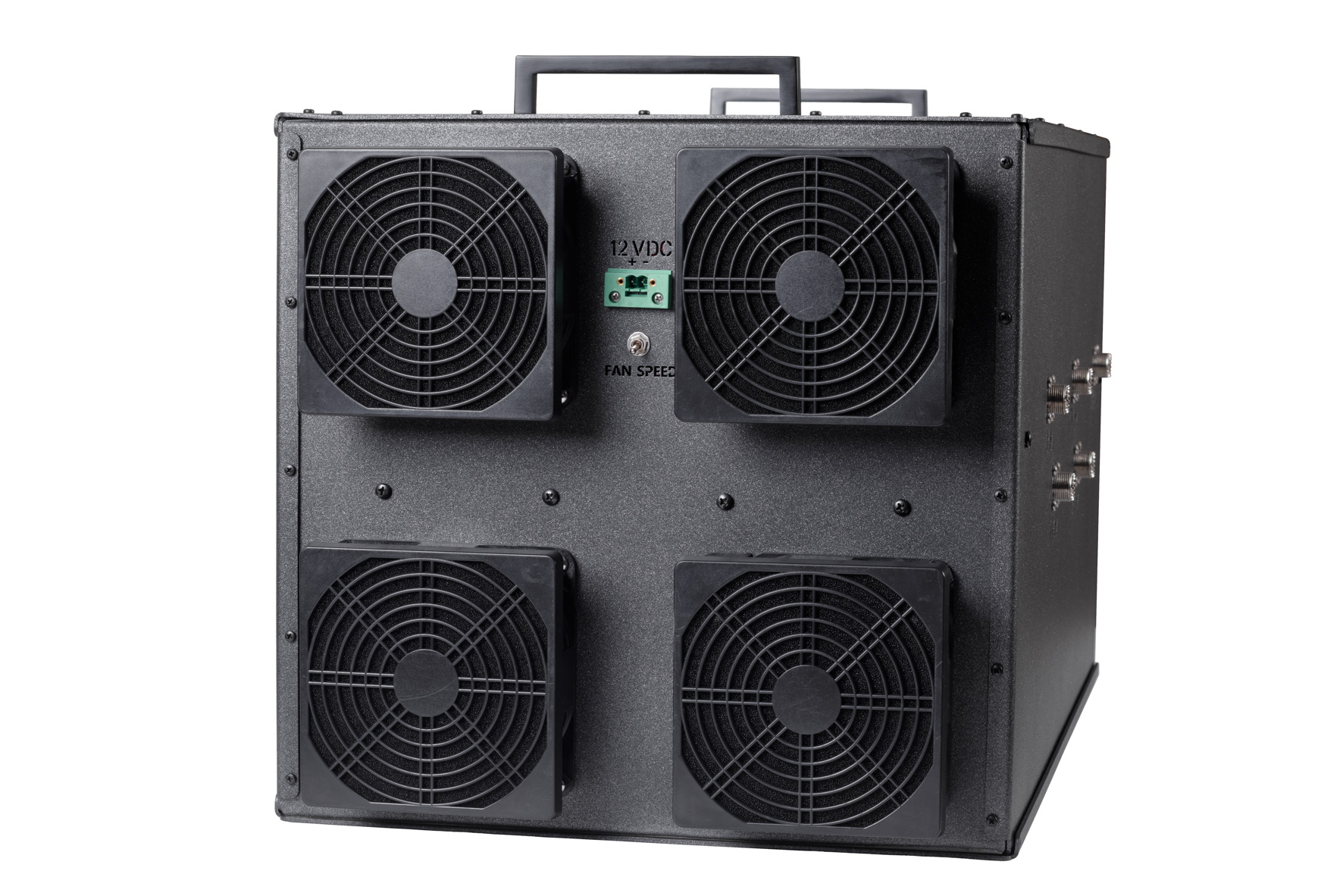

| Cooling fans: | 4 x (12VDC, 0.8A, 2700RPM, 130CFM) |
| Size: | 590x355x400mm / 23,3”х14”х15,8” |
| Net weight: | ≤19.5 kg / 43 lbs |
| Бренд: | LowBandSystems , Perfo Box |
